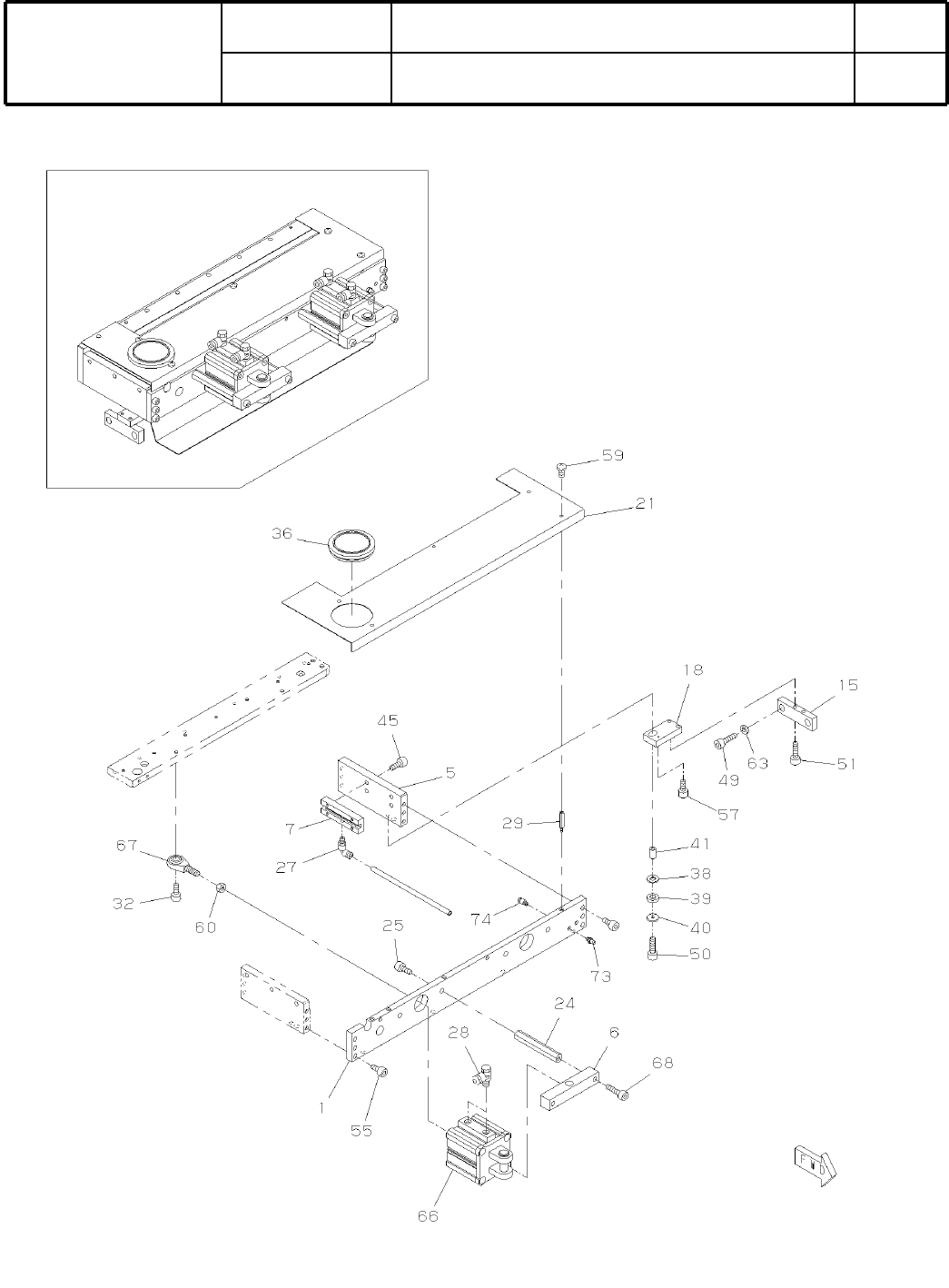

20-B カッティン グユニット Cutti ng Unit パーツレイアウト Ki t N o . キット 品番 Kit N am e キット名称 N610012612AA ｾｸｼｮﾝNo. PARTS LAYOUT Section No.   S79 

100%1 / 362
Ref
No.
Remarks
R
1
Q'ty
20-A
カッティングユニット
Cutting Unit
ｲﾗｽﾄ
No.
Part No.
品　　名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610012612AA
Part Name
備　　　考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
PLATE
1
2 KXFB02G4A00
PLATE
1
3 N210023715AA
BAR
1
4 N210023716AA
PLATE
1
8 KXFB01L3B00
GUIDE
1
9 N210047336AB
BLADE
1
10 N210047337AA
BLADE
1
11 N210023719AA
GUIDE
1
12 N210023720AA
PIN
1
14 KXFB02G7A00
PLATE
2
15 N210069103AA
PLATE
1
16 N210057333AA
BLOCK
1
17 N210069104AA
COVER
1
19 N210023723AA
COVER
1
20 N210047338AA
PIN
2
23 KXF0A4DAA00 SPP8-16
WASHER
1
33 KXF0DS1AA00 R16-40
BEARING
2
35 KXF0A6GAA00 4T-30203
COLLAR
1
37 N510028281AA 87NCLBH6-10-38.5
WASHER
2
38 KXF0CXCAA00 WSSB20-10-2
WASHER
2
39 KXF0CP7AA00 URWH20-10-5
WASHER
2
40 KXF0CPBAA00 WSSB20-6-3
COLLAR
1
41 KXF0CP3AA00 NCLB6-10-18.5
BOLT
2
42 N510017337AA
Hexagon socket head cap screw M3X6-10.9 A2J (Trivalent)
BOLT
5
43 N510017376AA
Hexagon socket head cap screw M4X6-10.9 A2J (Trivalent)
BOLT
4
44 N510017390AA
Hexagon socket head cap screw M5X12-10.9 A2J (Trivalent)
BOLT
2
46 N510017409AA
Hexagon socket head cap screw M5X50-10.9 A2J (Trivalent)
BOLT
10
48 N510017435AA
Hexagon socket head cap screw M6X20-10.9 A2J (Trivalent)
BOLT
2
49 N510017437AA
Hexagon socket head cap screw M6X25-10.9 A2J (Trivalent)
BOLT
1
50 N510017438AA
Hexagon socket head cap screw M6X30-10.9 A2J (Trivalent)
BOLT
2
52 N510017442AA
Hexagon socket head cap screw M6X40-10.9 A2J (Trivalent)
BOLT
4
53 N510017444AA
Hexagon socket head cap screw M6X45-10.9 A2J (Trivalent)
BOLT
20
54 N510017472AA
Hexagon socket head cap screw M8X20-10.9 A2J (Trivalent)
BOLT
1
56 N510017164AA
Hexagon socket head cap screw M10X20-10.9 A2J (Trivalent)
BOLT
1
57 N510017344AA
Hexagon socket head cap screw M4X10-10.9 A2J (Trivalent)
BOLT
7
58 N510017433AA
Hexagon socket head cap screw M6X16-10.9 A2J (Trivalent)
WASHER
5
61 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
2
62 N510018478AA
Small round-plain washer 3 10H A2J (Trivalent)
WASHER
4
63 N510020101AA Thick washer for M6
HOUSING
1
64 N210036462AA
LINEAR-WAY
1
65 N510014384AA HSR20YR1SSCSE+148LK(01758297U001)
PLATE
1
69 N210047333AA
COLLAR
2
70 N210047334AA
BOLT
6
71 N510017359AA
Hexagon socket head cap screw M4X25-10.9 A2J (Trivalent)
GREASE-NIPPLE
1
72 KXF07C6AA00 A-M6F-type(M6X0.75)
GREASE-NIPPLE
1
73 N560AMT6-130 A-MT6X1-type(M6X1)
BOLT
1
75 N510017446AA
Hexagon socket head cap screw M6X50-10.9 A2J (Trivalent)
WASHER
4
76 N510018481AA
Small round-plain washer 6 10H A2J (Trivalent)
S78

20-B
カッティングユニット
Cutting Unit
パーツレイアウト
Ki
t
N
o
.
キット
品番
Kit Name
キット名称
N610012612AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
S79

Ref
No.
Remarks
R
1
Q'ty
20-B
カッティングユニット
Cutting Unit
ｲﾗｽﾄ
No.
Part No.
品　　名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610012612AA
Part Name
備　　　考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
PLATE
1
1 N210051230AA
PLATE
1
5 KXFB02G0A00
BLOCK
2
6 KXFB02G2A00
GUIDE
1
7 KXFB01L2B00
PLATE
1
15 KXFB02GLA00
PLATE
1
18 N210057334AA
COVER
1
21 N210051231AA
POST
4
24 KXF0DWQ1A00 LSBRKT-14-100(DDA)
BOLT
4
25 KXF0DZ8FA00 CBSST8-25
JOINT
1
27 KXF0A27AA00 KQL04-M6
SPEED-CONTROLLER
4
28 KXF0DLDAA00 AS2201F-02-06S-17-X252(DDA)
SPACER
2
29 N510017083AA BSF-430E
BOLT
2
32 KXF02Z7AA00 MSB10-15
GROMMET
1
36 KXF0DUNAA00 C-30-SG-70A
WASHER
1
38 KXF0CXCAA00 WSSB20-10-2
WASHER
1
39 KXF0CP7AA00 URWH20-10-5
WASHER
1
40 KXF0CPBAA00 WSSB20-6-3
COLLAR
1
41 KXF0CP3AA00 NCLB6-10-18.5
BOLT
4
45 N510017399AA
Hexagon socket head cap screw M5X25-10.9 A2J (Trivalent)
BOLT
2
49 N510017437AA
Hexagon socket head cap screw M6X25-10.9 A2J (Trivalent)
BOLT
1
50 N510017438AA
Hexagon socket head cap screw M6X30-10.9 A2J (Trivalent)
BOLT
2
51 N510017440AA
Hexagon socket head cap screw M6X35-10.9 A2J (Trivalent)
BOLT
6
55 N510017473AA
Hexagon socket head cap screw M8X25-10.9 A2J (Trivalent)
BOLT
1
57 N510017344AA
Hexagon socket head cap screw M4X10-10.9 A2J (Trivalent)
SCREW
5
59 N510018279AA
Cross recessed Truss head machine screw M4X6-4.8 A2J (Trivalent)
NUT
2
60 N510017887AA
Hexagon nut Type-1 Best class M10-6H-4T A2J (Trivalent)
WASHER
2
63 N510020101AA Thick washer for M6
CYLINDER
2
66 N510056835AA CQ2D63-35DCZ
ROD-END
2
67 N510014419AA SAJK10C
BOLT
4
68 N510017476AA
Hexagon socket head cap screw M8X35-10.9 A2J (Trivalent)
GREASE-NIPPLE
1
73 N560AMT6-130 A-MT6X1-type(M6X1)
JOINT
1
74 KXF0716AA00 KQH04-M6
