Ref No. Remark s R 1 Q'ty 29-B BRカバー (フィーダ) BR COVER(FEEDER) ｲﾗｽﾄ No. Part No. 品 名 品番 数量 R 2 パーツリスト Kit N o . キット品 番 Kit Name キット名称 N610024212AA Part Name 備 考 ｾｸｼｮﾝNo. PARTS LIST Section No. R 3 COVER 1 1 N210026338…
29-B
BRカバー (フィーダ)
BR COVER(FEEDER)

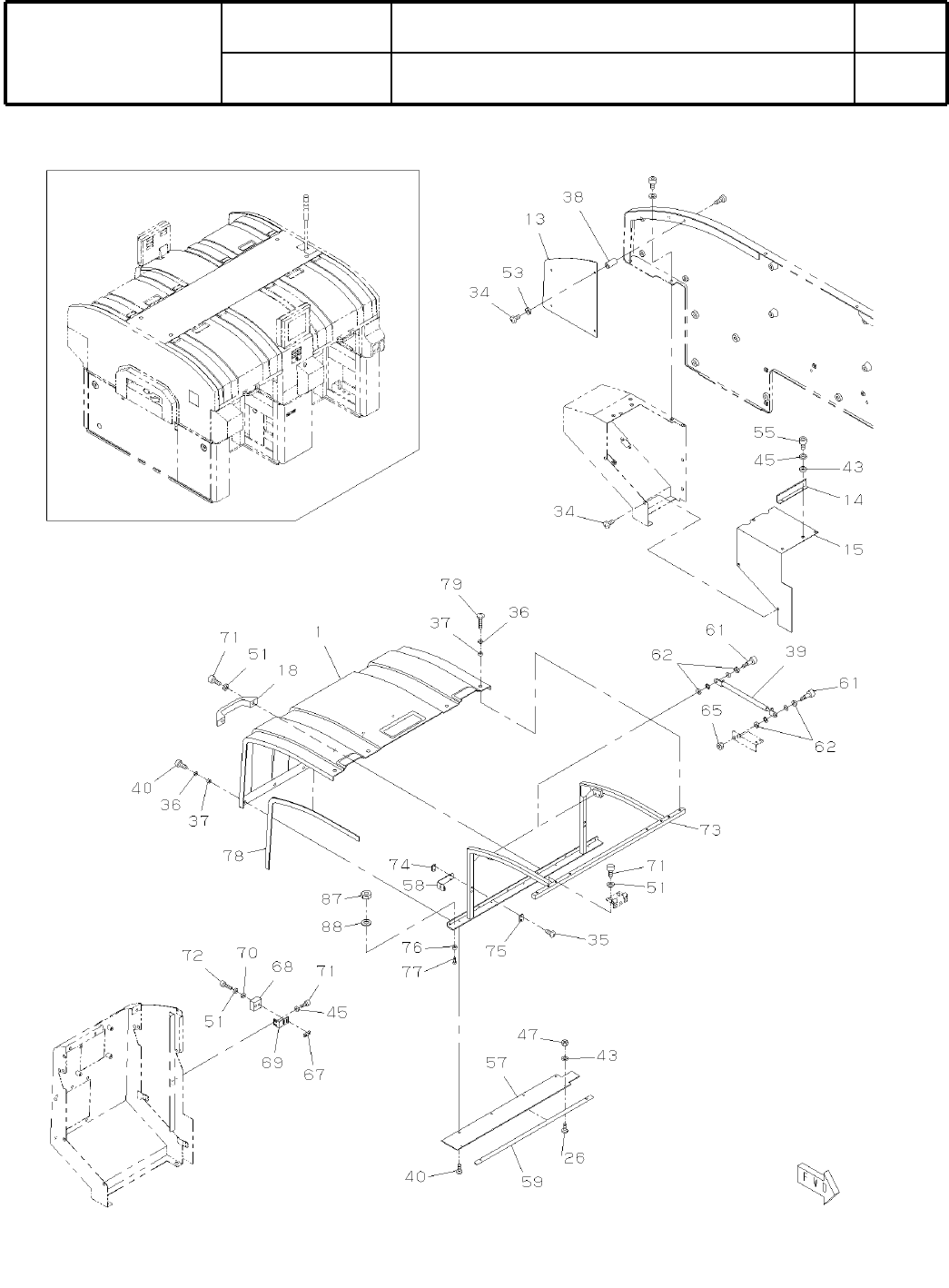

パーツレイアウト
Ki
t
N
o
.
キット
品番
Kit Name
キット名称
N610024212AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
--
S111
( KN610024212AA-17-2 )
Ref
No.
Remarks
R
1
Q'ty
29-B
BRカバー (フィーダ)
BR COVER(FEEDER)
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610024212AA
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
COVER
1
1 N210026338AF
S
COVER
1
13 N210027713AA
BRACKET
1
14 N210027715AA
S
COVER
1
15 N210045669AA
PULL
1
18 KXF0DX62A00 AP-829-2
SCREW
2
26 N510018258AA
Cross recessed Truss head machine screw M4X10-4.8 A2S (Trivalent)
SCREW
12
34 N510018282AA
Cross recessed Truss head machine screw M4X8-4.8 A2J (Trivalent)
BOLT
2
35 N510001804AA SRBS-M4X25
WASHER
8
36 N510011899AA NN-0816-10
SPACER
8
37 N510019916AA CB-503E
SPACER
4
38 N510019894AA ASF-440E
GAS-SPRING
2
39 KXF0E1VCA00
S
KSF90-10M
SCREW
8
40 N510018303AA
Cross recessed Truss head machine screw M5X8-4.8 A2S (Trivalent)
WASHER
4
43 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
6
45 N510020100AA Thick washer for M5
NUT
2
47 N510017855AA
Hexagon nut Type-1 Best class M4-6H-4T A2J (Trivalent)
WASHER
8
51 N510018499AA
Round finish plain washer 5 10H A2J (Trivalent)
WASHER
12
53 N510013724AA TM-147-2V
BOLT
2
55 N510017346AA
Hexagon socket head cap screw M4X12-10.9 A2J (Trivalent)
COVER
1
57 N210064063AA
BRACKET
1
58 N210064060AA
COVER
1
59 N210043289AA
BOLT
4
61 KXF09KJAA00 MSB10-10
WASHER
8
62 N510018506AA
Round finish plain washer (JIS B 1256:1978) 10 10H A2J (Trivalent)
NUT
2
65 N510017877AA
Hexagon nut Type-1 Best class M8-6H-4T A2J (Trivalent)
BAR
1
67 N210049616AA
STOPPER
1
68 N210049617AB
BRACKET
1
69 N210049615AC
SPACER
2
70 N510020966AA CB-512E
BOLT
8
71 N510017395AA
Hexagon socket head cap screw M5X16-10.9 A2J (Trivalent)
BOLT
2
72 N510017399AA
Hexagon socket head cap screw M5X25-10.9 A2J (Trivalent)
FRAME
1
73 N610049251AD
S
NUT-PLATE
1
74 N210066061AA
PLATE
1
75 N210066062AA
GROMMET
2
76 N510055131AA C-30-RK-10-EP-UL-Black
BOLT
2
77 N510017247AA
Hexagon socket head cap screw M2.5X8-10.9 A2J (Trivalent)
TRIM
2
78 N9866224-B98 62-24-B-5-Aluminium
SCREW
4
79 N510018291AA
Cross recessed Truss head machine screw M5X16-4.8 A2S (Trivalent)
NUT
2
87 N510017840AA
Hexagon nut Type-1 Best class M2.5-6H-4T A2J (Trivalent)
WASHER
2
88 N510018490AA
Round finish plain washer (JIS B 1256:1978) 2.5 10H A2J (Trivalent)
