Replacement Parts
MC785M Series Spray Valves
HM 6 X 25 mm
Hex head bolt, SS
Push-in elbow
10-32 x 4 mm OD
P/N 7007019
Hex head bolt SS —
brass tipped
MC785M: Standard fan air cap 0.046" P/N 7021775
MC785M-WF: Wide fan air cap 0.046" P/N 7021778
Tubing for MC785M:
P/N 7008007 4 mm — black
P/N 7022171 4 mm — clear
P/N 7008006 4 mm — white
Air cap retainer nut
P/N 7021599
Needle
P/N 7021702
Spring locating washer
P/N 7021704
Diaphragm return spring
P/N 7021700
Diaphragm chamber cap
P/N 7021698
Push-in elbow
10-32 x 4 mm OD
P/N 7007019
Optional: Straight push-in fitting
10-32 x 4 mm OD
P/N 7021724
Fluid body
P/N 7021696
Push-in fitting
1/8 NPT x 4 mm OD
P/N 7021718
Optional: Push-in elbow fitting
1/8 NPT x 4 mm OD
P/N 7021738
Viton O-ring
P/N 7014765
Nozzle 0.046"
P/N 7021753
Diaphragm retaining nut
P/N 7021709
Diaphragm
P/N 7021727
PTFE side
(blue-gray)
Mounting clamp
P/N 7021742
MicroCoat MC800 Lubrication Systems
28 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
7
6
7
6
6
14
15
12
12
12
16
12

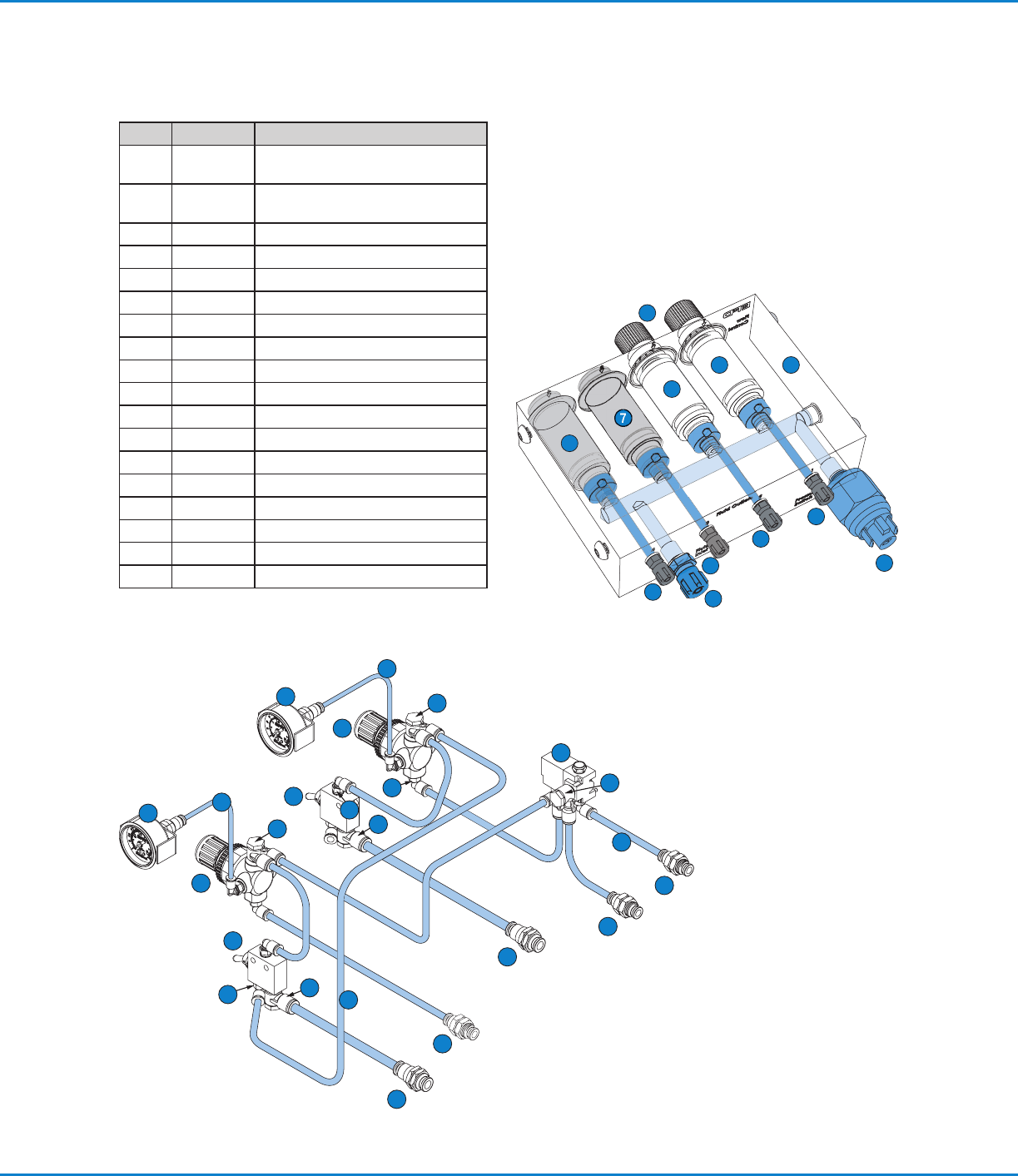

Air and Fluid Flow
Item Part # Description
1 7016572 Tank air pressure gauge 0–2.07bar
(0–30psi)
2 7016574 Nozzle air pressure gauge
0–2.07bar (0–30psi)
3 7002004 6 mm OD tubing
4 7016767 5/32" OD x 3/32" ID tubing
5 7022164 Air input fitting
6 7008004 Flow control
7 7008005 Flow control block-off plug
8 7014882 Regulator, 0–2.07 bar (0–30 psi)
9 7017402 Toggle switch
10 7022243 Air pilot valve
11 7022165 Air output fitting
12 — Fluid manifold outlet fitting
13 — Fitting 1/8 NPT x 8 mm elbow
14 7008010 Fluid manifold w/ sensor
15 — Low pressure switch fluid inlet
16 7022188 Fluid inlet fitting
17 7017400 Fitting 1/8 MPT x 6 mm elbow
18 7017399 Fitting 1/8 MPT x (2) 6 mm elbow
5
11
5
11
11
9
9
8
8
10
1
2
3
3
13
17
4
4
18
18
18
17
17
13
Control air input from solenoid
(60psi min.)
Valve, nozzle air
Constant air input
(60psi min.)
Tank air
Valve, control air
Pilot valve
Regulator,
0–2.07 bar
(0–30 psi)
System pressure
ON / OFF
Regulator,
0–2.07 bar
(0–30 psi)
Auto/Run
Manual/Setup
Replacement Parts (continued)
MicroCoat MC800 Lubrication Systems
29www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
MC685M and MC686M Tanks
Part # Description
7002004 Blue urethane hose
7020446 Viton O-ring for filler
7020425 (2) Neoprene gaskets for acrylic tube
7020427 (2) Viton gaskets for acrylic tube
7020432 Pressure relief valve 2.76bar (40psi)
7022195 Push-in fitting, tank inlet
7020422 Acrylic tube 6.50" D x 8.96" L (one gal)
7020438 Acrylic tube 6.50"D x 16.35"L (two gal)
7022188 1/8" BSPP x 6 mm capbarb fitting, tank outlet
7022175 Black urethane hose
7020442 Filler cap
7020436 Nickel-plated brass drain plug
7020429 Stainless steel float switch kit (includes connector, wiring & strain reliefs)
7022156 Lubricant filter kit
7017347 Lubricant filter element, (4) per box
Replacement Parts (continued)
