MicroCoat MC800 Lubrication Systems
30 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
Troubleshooting
Problem Possible Cause and Correction
Air pressure regulator
will not maintain set
pressure
Contaminated air supply. Remove the controller cover
to access the regulator. Remove the brass hex plug,
spring, and poppet from the regulator. Clean the
poppet and reinstall the poppet, spring, and plug.
No lubricant flow to
valve
Tank pressure may be too low. Minimum operating
tank air pressure is 0.83bar (12psi).
Hose connector may not be pushed fully into the fluid
outlet fitting on the rear panel of the controller. Ensure
connector is firmly seated.
Check fluid hose for kinks.
Valves do not turn on Supply pressure to controller must be at 4.1bar
(60psi).
Lubricant flows but
valve does not spray
Air cap may be clogged. Be sure oil tank filter is clean.
Remove air cap and clean the inside of the air cap
and the outside of the nozzle. Refer to “Spray Valve
Maintenance” on page 25.
Nozzle air pressure regulator may be set too low.
Increase pressure as needed. Normal working range is
within 0.55–1.03bar (8–15psi).
Valve drips after
shutdown
Dripping can be caused by improper seating of the
needle in the nozzle. Clean the needle and nozzle, and
replace any worn or damaged parts.
Ensure nozzle is tight to seat the needle properly.
MicroCoat MC800 Lubrication Systems
31www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
Technical Data
Control air input from solenoid
4.1bar (60psi) min.
Valve, nozzle air
Constant air input
4.1bar (60psi) min.
Tank air
Valve, control air
Pilot valve
Regulator, 0–2.07 bar
(0–30 psi)
System pressure ON / OFF
Regulator,
0–2.07 bar
(0–30 psi)
Auto/Run
Manual/Setup

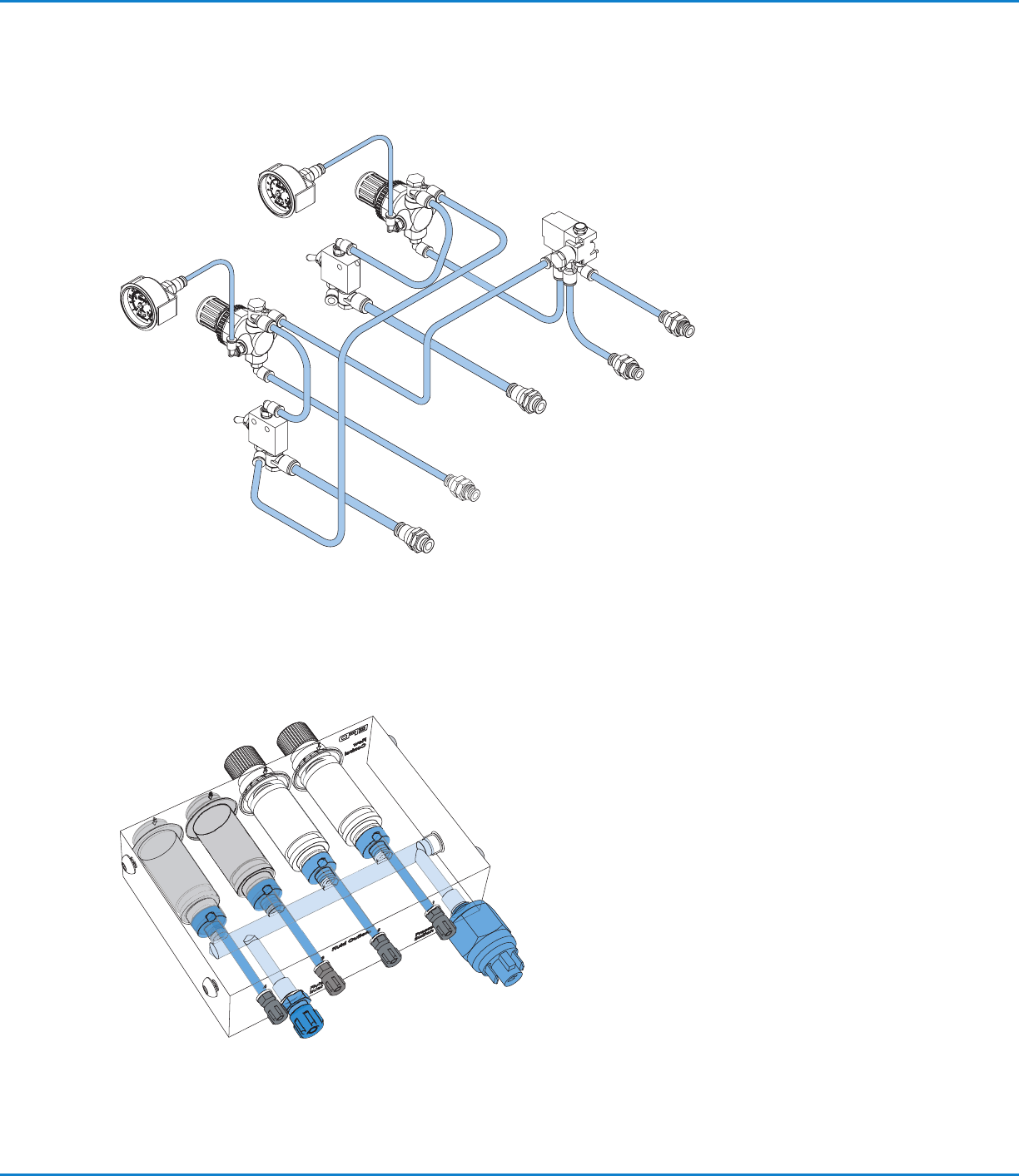

Air Flow Schematic
Fluid Flow Schematic
6
Pressure
switch
Fluid inlet
Fluid
outlets
Flow
controls
For Nordson EFD sales and service in over
40 countries, contact Nordson EFD or go to
www.nordsonefd.com.
Global
800-556-3484; +1-401-431-7000
info@nordsonefd.com
Europe
00800 7001 7001
infoefd.europe@nordsonefd.com
Asia
China: +86 (21) 3866 9006; china@nordsonefd.com
India: +91 80 4021 3600; india@nordsonefd.com
Japan: +81 03 5762 2760; japan@nordsonefd.com
Korea: +82-31-736-8321; korea@nordsonefd.com
SEAsia: +65 6796 9522; sin-mal@nordsonefd.com
Viton is a registered trademark of E.I. DuPont.
The Wave Design is a trademark of Nordson Corporation.
©2024 Nordson Corporation 7023880 v050224
NORDSON EFD TWO YEAR LIMITED WARRANTY
This NordsonEFD product is warranted for two years from the date of purchase to be free
from defects in material and workmanship (but not against damage caused by misuse,
abrasion, corrosion, negligence, accident, faulty installation, or by dispensing material
incompatible with equipment) when the equipment is installed and operated in accordance
with factory recommendations and instructions.
NordsonEFD will repair or replace free of charge any defective part upon authorized return
of the part prepaid to our factory during the warranty period. The only exceptions are those
parts which normally wear and must be replaced routinely, such as, but not limited to, valve
diaphragms, seals, valve heads, needles, and nozzles.
In no event shall any liability or obligation of NordsonEFD arising from this warranty exceed
the purchase price of the equipment.
Before operation, the user shall determine the suitability of this product for its intended use,
and the user assumes all risk and liability whatsoever in connection therewith. NordsonEFD
makes no warranty of merchantability or fitness for a particular purpose. In no event shall
NordsonEFD be liable for incidental or consequential damages.
This warranty is valid only when oil-free, clean, dry, filtered air is used, where applicable.
