NPM-D电路.pdf - 第200页
Z-axis motor cooling fan CPU cooling fan CN28 1 2 3 CN27 1 2 3 FSENSOR (for MOTOR) FANON FSENSOR (for CPU) 1 2 3 JAPAN SOLDERLESS TER CN27 PAP-03V-S 1 2 3 JAPAN SOLDERLESS TER CN28 PAP-03V-S PV24 -K301 PMC0A3 Ｍ -G1001 10…
Flow sensor9
Flow sensor10
Flow sensor11
Flow sensor12
Flow sensor13
Flow sensor14
GND
PV24
IVSENSE
JVSENSE
KVSENSE
LVSENSE
MVSENSE
NVSENSE
OVSENSE
Flow sensor15
CN23
1
2
3
4
5
6
7
8
9
10
11
12
CN24
1
2
3
4
5
6
7
8
9
10
11
12
+V
OUT
0V
F
-B1009
PFMV530F-1-N-X922 BN
BK
BU
SMC
+V
OUT
0V
F
-B1010
PFMV530F-1-N-X922 BN
BK
BU
SMC
+V
OUT
0V
F
-B1011
PFMV530F-1-N-X922 BN
BK
BU
SMC
+V
OUT
0V
F
-B1012
PFMV530F-1-N-X922 BN
BK
BU
SMC
+V
OUT
0V
F
-B1013
PFMV530F-1-N-X923 BN
BK
BU
SMC
+V
OUT
0V
F
-B1014
PFMV530F-1-N-X923 BN
BK
BU
SMC
+V
OUT
0V
F
-B1015
PFMV530F-1-N-X923 BN
BK
BU
SMC
12
11
10
9
8
7
6
5
4
MOLEX
CN23
502380-1200
3
2
1
12
11
10
9
8
7
6
5
4
MOLEX
CN24
502380-1200
3
2
1
-K301
PMC0A3
PVSENSE
Flow sensor16
+V
OUT
0V
F
-B1016
PFMV530F-1-N-X923 BN
BK
BU
SMC
Panasonic Factory Solutions Co.,Ltd. パナソニック ファクトリーソリューションズ株式会社
Name
Drawing No.
Loc. No.
F4K1020-05A
1
2 3 4 5 6 7 8
A
B
C
D
E
F
1 2 3 4 5 6 7 8
A
B
C
D
E
F
Page. No.

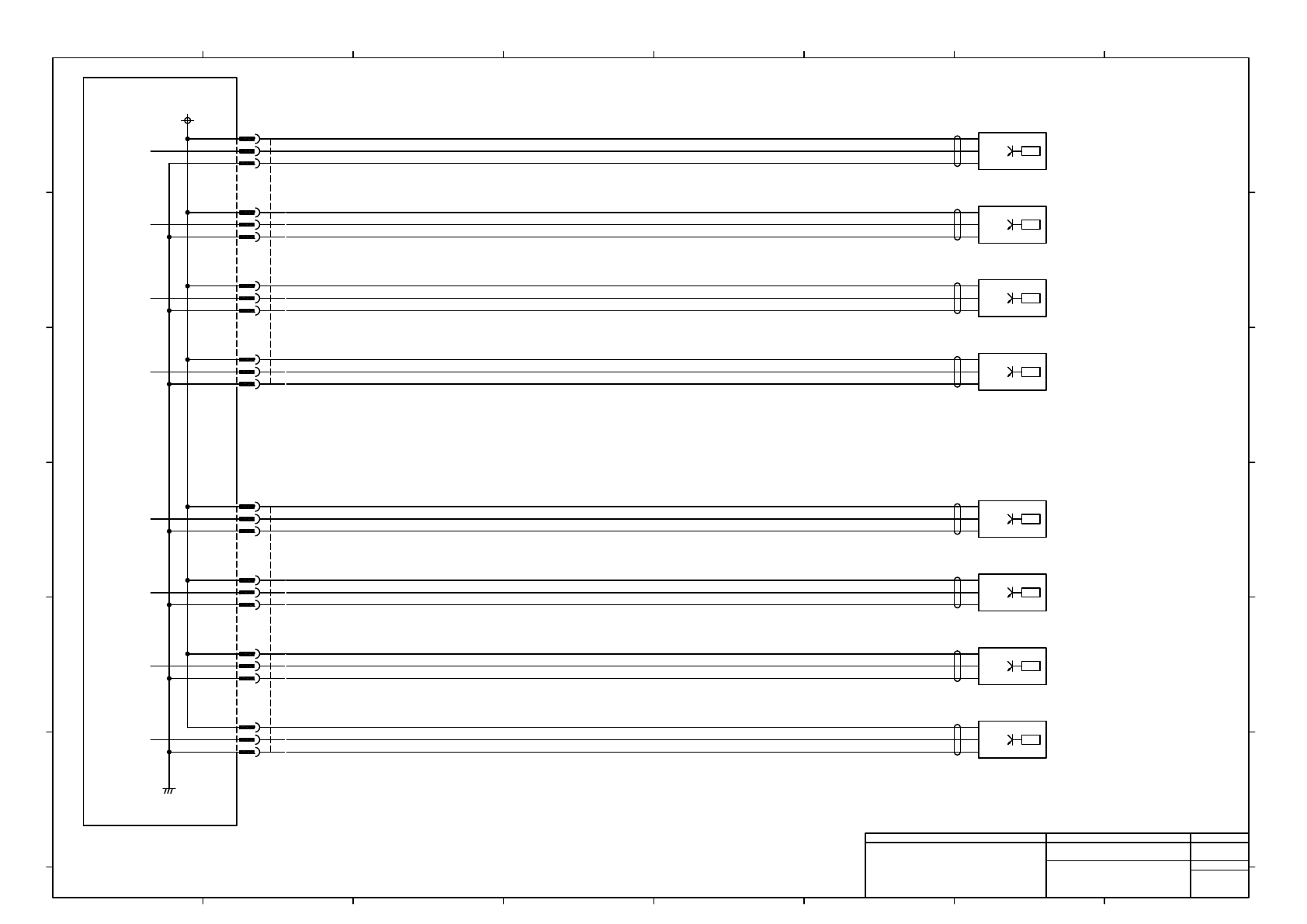

Light Weight 16 Nozzle Head (H):NPM
(Flow sensor 9-16 wiring)
N610159868+014AA
P014
Z-axis motor cooling fan
CPU cooling fan
CN28
1
2
3
CN27
1
2
3
FSENSOR (for MOTOR)
FANON
FSENSOR (for CPU)
1
2
3
JAPAN SOLDERLESS TER
CN27
PAP-03V-S
1
2
3
JAPAN SOLDERLESS TER
CN28
PAP-03V-S
PV24
-K301
PMC0A3
Ｍ
-G1001
109P0424H701
RD
YE
BK
SANYO DENKI
Ｍ
-G1002
109P0424H738
RD
YE
BK
SANYO DENKI
Panasonic Factory Solutions Co.,Ltd. パナソニック ファクトリーソリューションズ株式会社
Name
Drawing No.
Loc. No.
F4K1020-05A
1
2 3 4 5 6 7 8
A
B
C
D
E
F
1 2 3 4 5 6 7 8
A
B
C
D
E
F
Page. No.

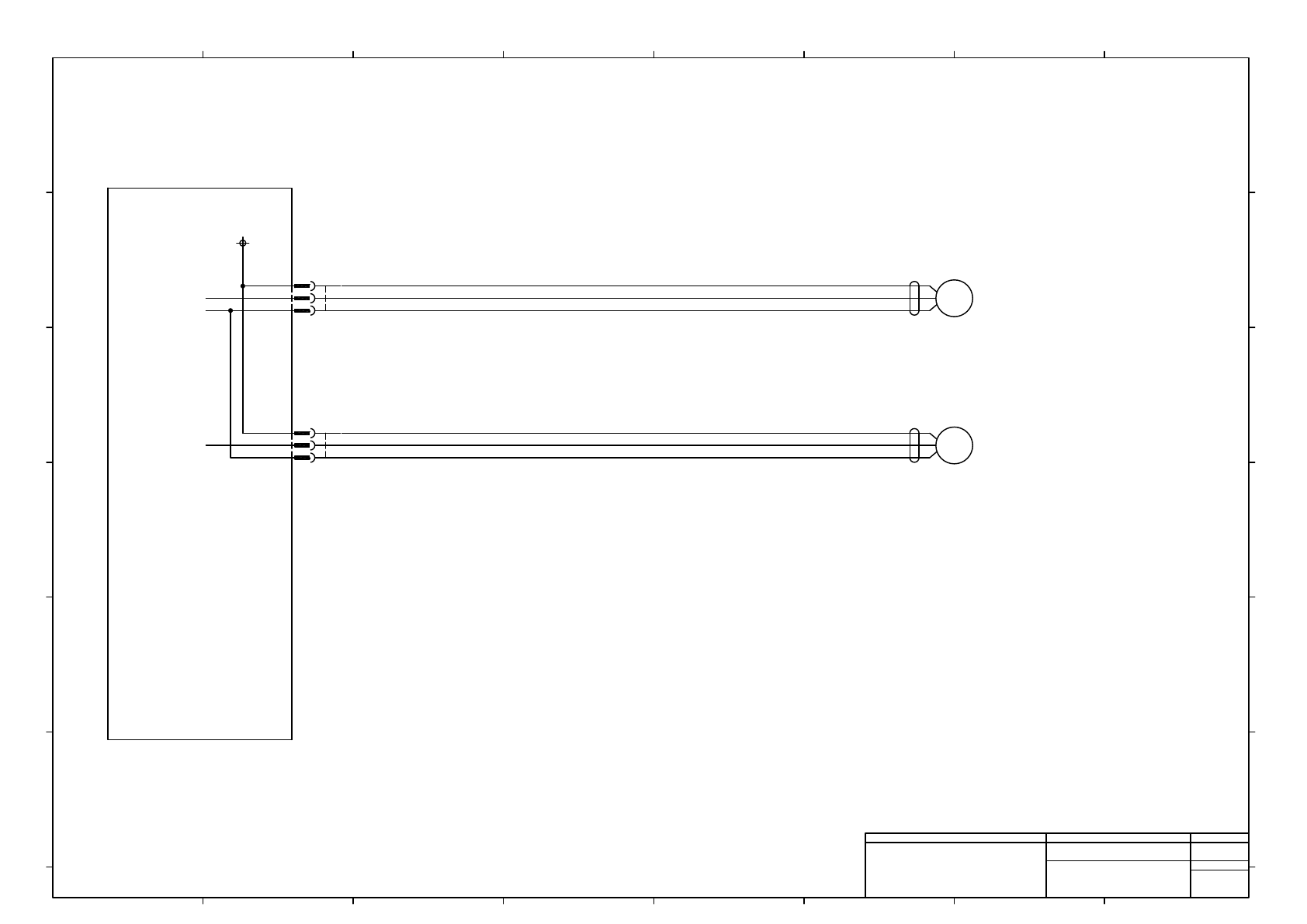

Light Weight 16 Nozzle Head (H):NPM
(Fan motor wiring)
N610159868+015AA
P015
4.
LOAD WIRING DIAGRAM OPTION
負荷配線図 オプション
4-5 HEAD OPTION DRIVING UNIT WIRING
ヘッドオプション駆動ユニット配線
EJM6DB-10-405-00
