ProFlow Issue 2: July 2007

100%1 / 240
ProFlow Module Tasks
•
Swap from Squeegees to ProFlow
•
Adjust ProFlow cassette low sensor
Issue 2: July 2007
•
Adjust ProFlow cassette low sensor
•
Set ProFlow contact position
•
Calibrate paste empty and full and
configure Time To Go
Objective 21: Complete activities in your workbook

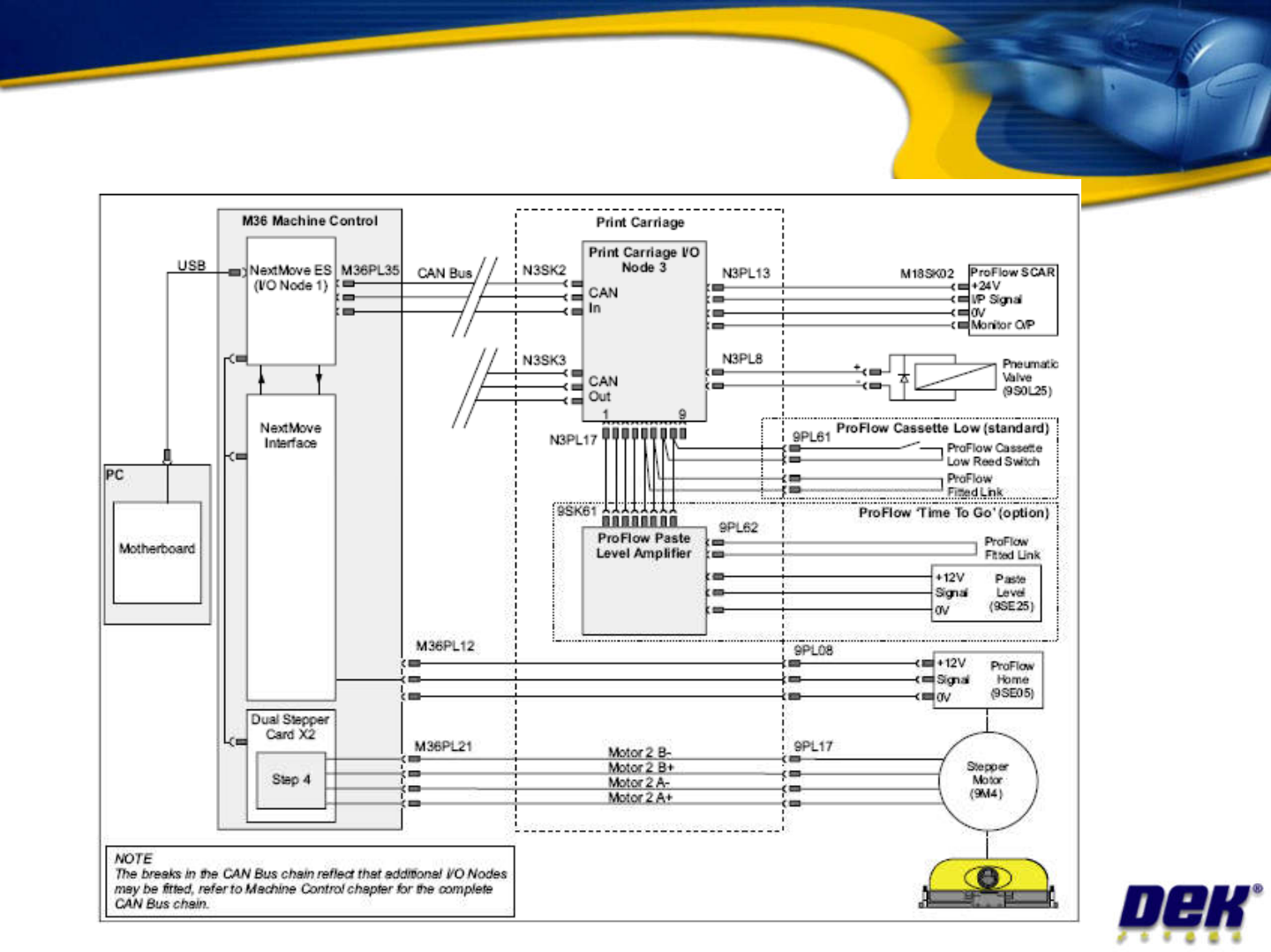

ProFlow
Issue 2: July 2007
Paste Dispenser Module
•
The paste dispenser module consists of the
following sub-assemblies:
– 1 x CAN Open stepper motor (Node 10)
– 1 x Drive belt
Issue 2: July 2007
– 1 x Drive belt
– Tilt actuator
– Home sensors
– Paste level sensor
– Dispenser up / down sensors
– Tilt up/down speed control pneumatic valves
