Linear Motor Compone nts Permanent Magnet T rack Camera Home sensor Issue 2: July 2007 Forcer Read Head Encoder strip ‘index’ Sensor used on early machines. No longer fit ted.

Linear Encoder Theory

•

The optical read head measures positional information

from the encoder strip running the length of the permanent

magnet track

•

Two pulse trains allow direction and velocity to be

calculated

Issue 2: July 2007

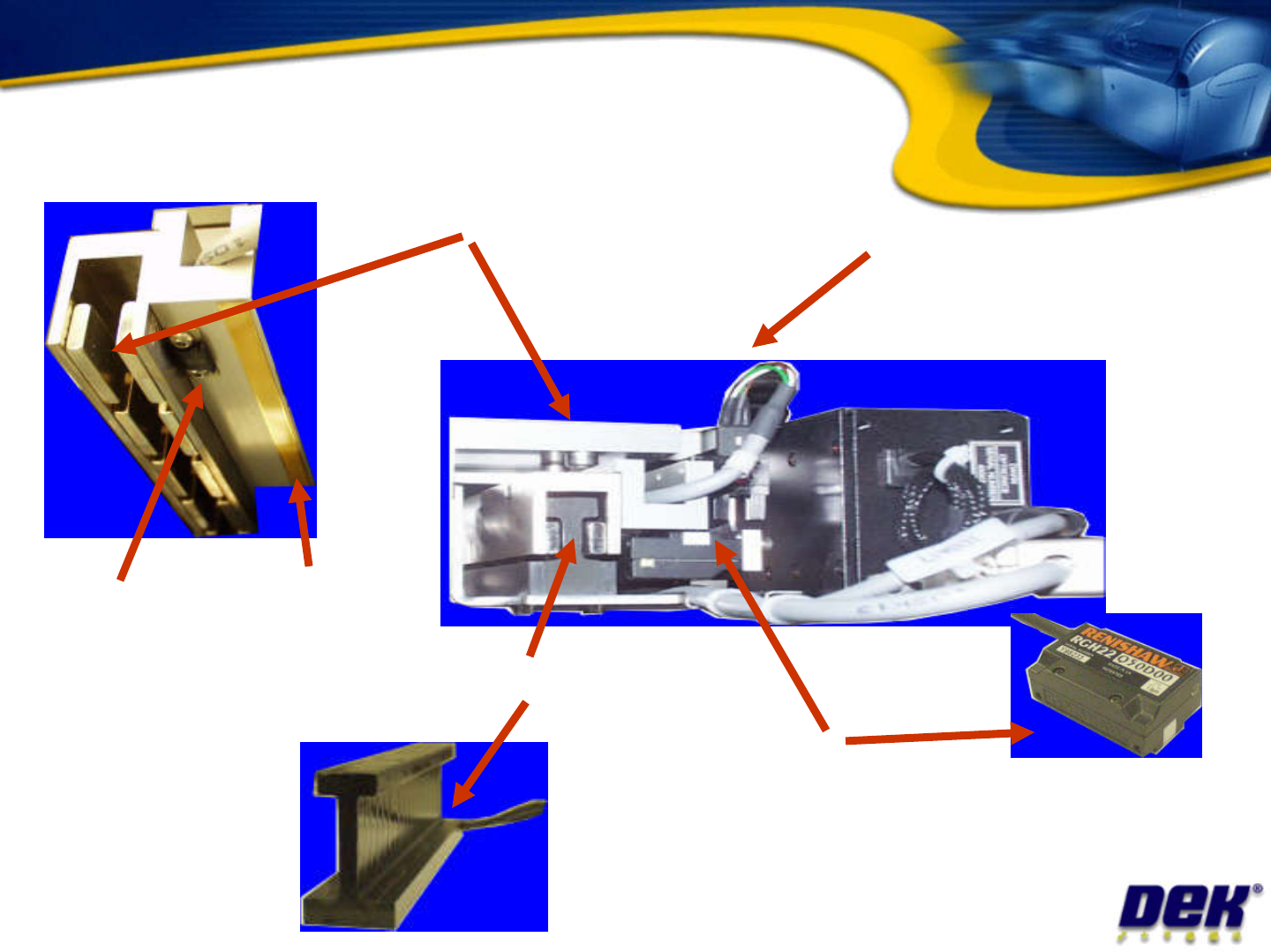

Linear Motor Components

Permanent Magnet Track

Camera

Home

sensor

Issue 2: July 2007

Forcer

Read Head

Encoder

strip

‘index’ Sensor

used on early

machines. No

longer fitted.

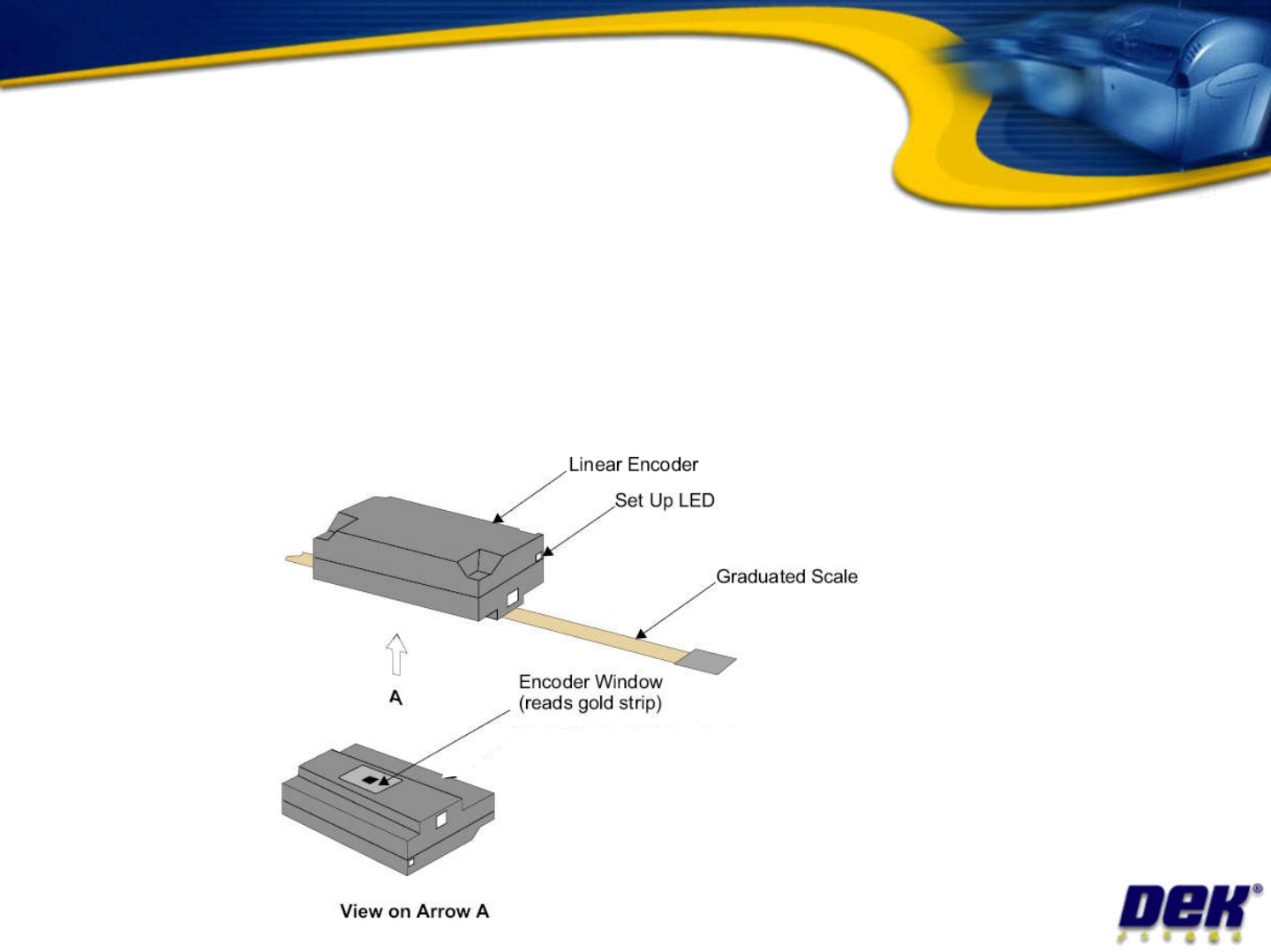

Linear Encoder (Read Head)

•

Read-head LED conditions:-

• Green

– Reader set-up correctly, encoder clean

and all pulses can be read.

•

Amber

– The Reader / Encoder Strip may need

Issue 2: July 2007

– The Reader / Encoder Strip may need

cleaning, or the gap between the Read

head and Encoder strip is greater than

0.8mm.

•

Red

– Reader has failed to read encoder

pulses, servo power is disabled if this

occurs.

Task: Complete diagram in your workbook
