Benchmark test • Run QC-Calc softwa re package in real time • Run machine for 10 0 cycles Issue 2: July 2007 • Run machine for 10 0 cycles • Record SPC results Objective 32: Run benchmark test and re cord results in your…
•
DATA OUTPUT RATE EVERY CYCLE
•
START RATE 1
•
SAMPLE RATE 0
•
Benchmark Tests -
Parameter Settings
Issue 2: July 2007
•
•
START RATE LIMIT 0
•
SPC DATA MODE DISC
•
SPC FORMAT WINDOWS
•
UPDATE ON START UP YES
•
ALIGN INSPECT MODE POST

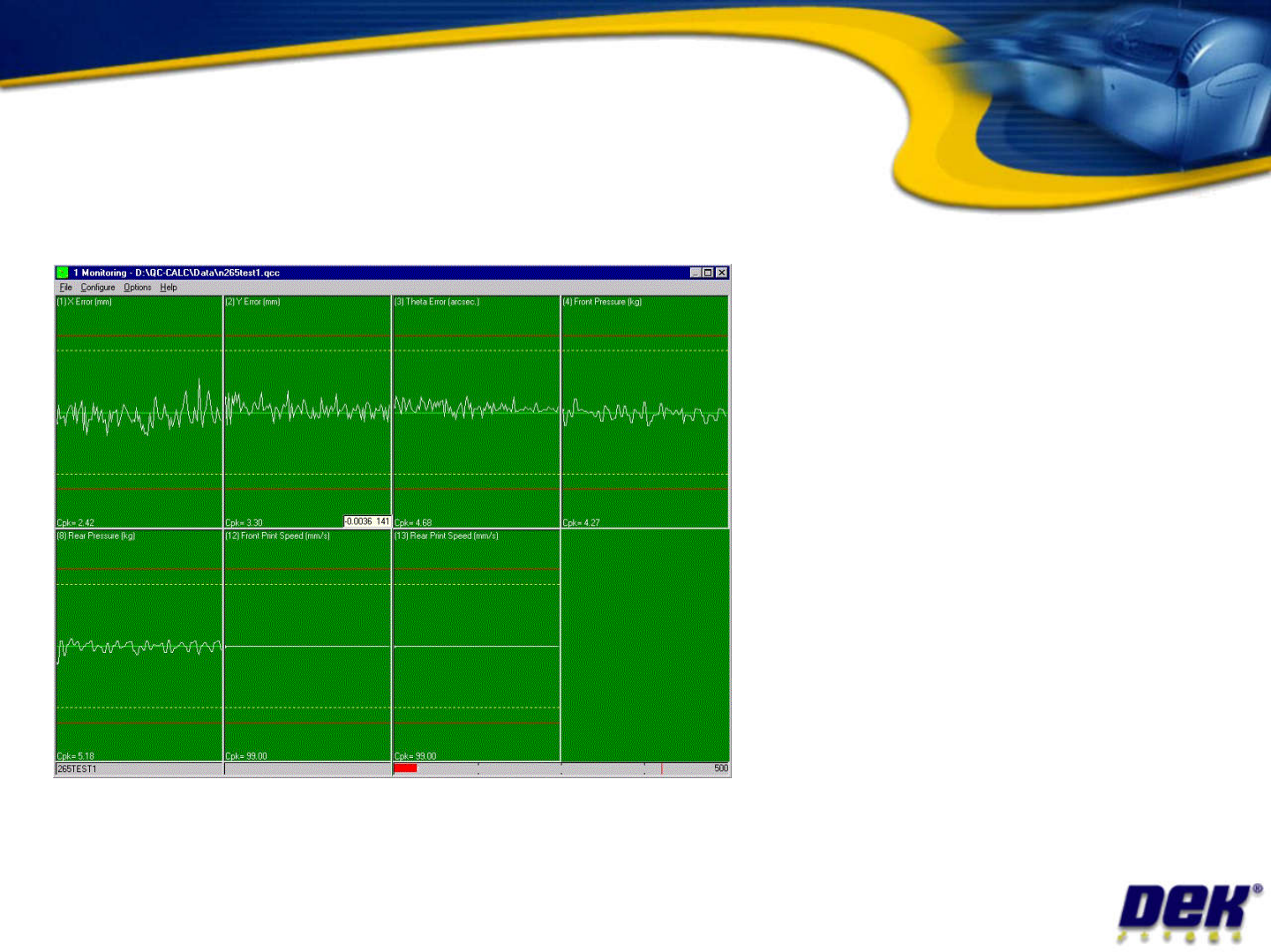

Benchmark test
•
Run QC-Calc software package in
real time
•
Run machine for 100 cycles
Issue 2: July 2007
•
Run machine for 100 cycles
•
Record SPC results
Objective 32: Run benchmark test and record results in your workbook
Our goal
Target:
Galaxy 2CPK@12.5microns
Europa 2CPK@20microns
Inf Api 2CPK@25microns
Issue 2: July 2007
Hoz 01i
2CPK@25microns
Hoz 02i 1.6CPK@25microns
Hoz 03i 1.3CPK@25microns
