Cyclone Cleaner Schematic Issue 2: July 2007
Cyclone Cleaner Tasks
•
Remove Cyclone assembly from
machine and disassemble
•
Issue 2: July 2007
machine and disassemble
•
Perform cleaner height and level
adjustment
•
Test under screen cleaner performance
Objective 29: Complete the workbook tasks

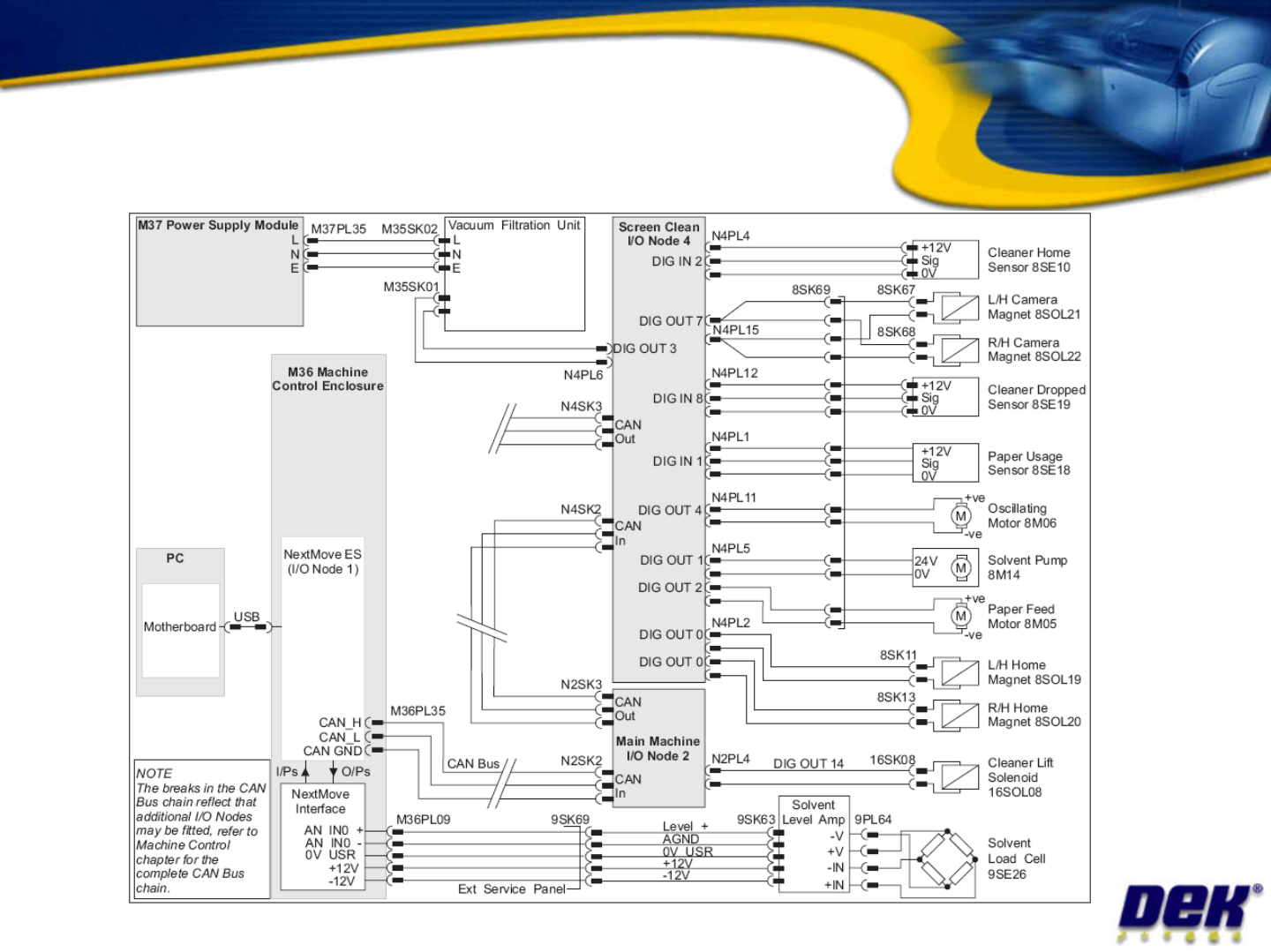

Cyclone Cleaner Schematic
Issue 2: July 2007
Rising Table
•
The Rising Table module consists of the following
sub-assemblies:
– Table and lead screw assembly
Issue 2: July 2007
– Table and lead screw assembly
– CAN open Servo motor assembly with integral brake
– Integral CAN interface Node 6 (Berger Lahr motor only)
– External BG9010 Node 6 (Dunker Motor only)
– Home Sensor
