MACHINE PROGRAMMING
STAGE 5A - MAGNETIC PILLARS TOOLING
User Manual 1.19
15. Select Continue (F1). Cleaner moves to the Home position and the print
carriage moves to the rear of the machine. The message ‘Table at Home
Height’ is displayed.
16. Select Transprt Height (F3). The message ‘Table at Transport Height’ is
displayed.
17. Place a board on the input sensor of the upline conveyor of the machine.
18. Select Load (F1).
19. Select Auto Board (F1).
20. Select Open Cover (F7).
21. Either:
a. Open the front printhead cover.
or
b. Raise the printhead shutter.
22. Position the outermost magnetic support pins on the rising table under the
board.
23. Select Board Clamps (F3) to open the clamps.
24. Remove the board from the rails and select Board Clamps (F3) to close the
clamps.
25. Complete the positioning of the magnetic support pins.

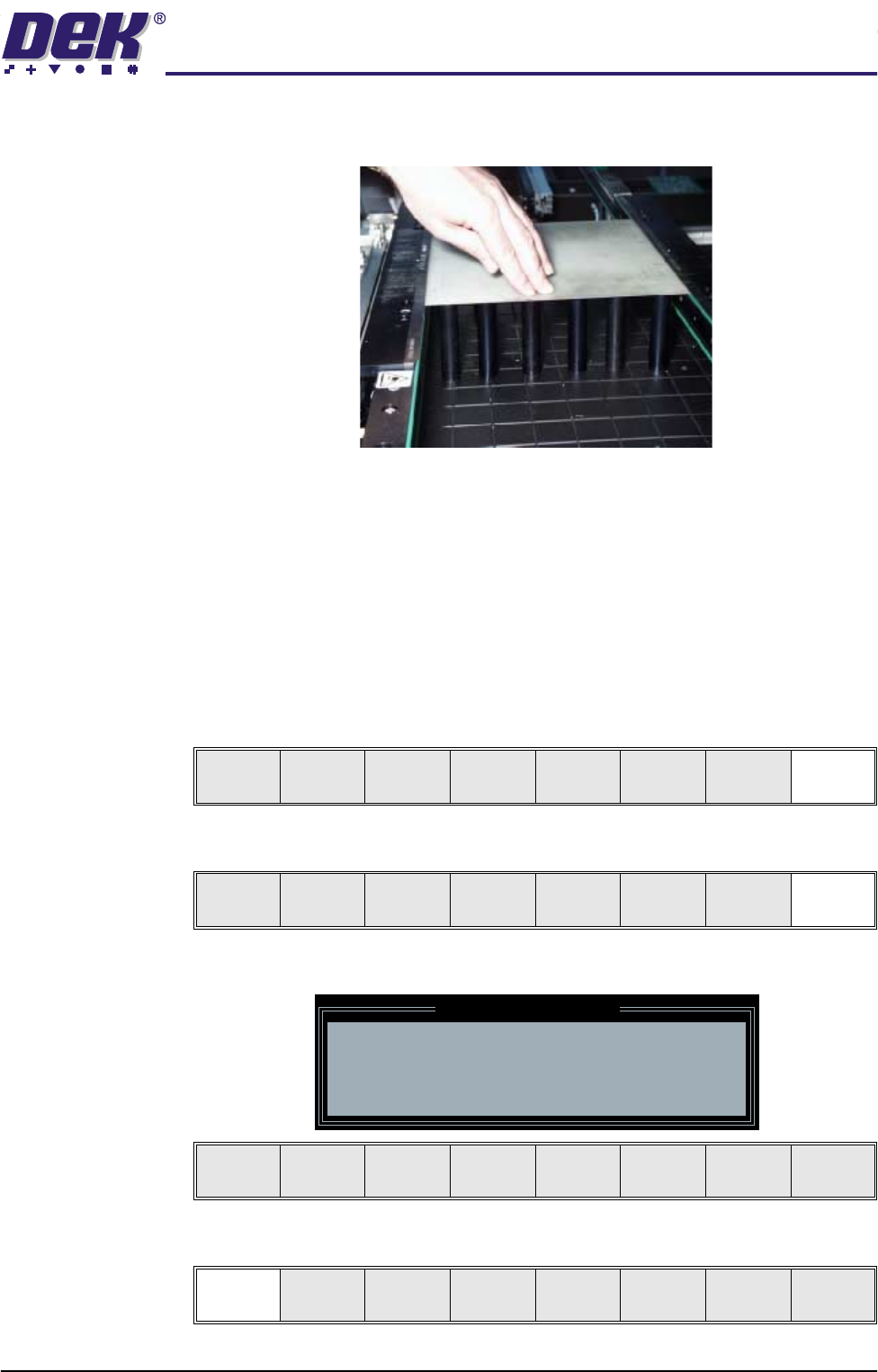

26. Place the board back on the rails over the tooling.
Continue
Open
Cover
Exit
Load
Transprt
Height
Board
Clamps
Change
Screen
Open
Cover
Exit
Load
Vision
Height
Home
Height
Board
Clamps
Change
Screen
Open
Cover
Exit
Auto
Board
Manual
Board
Exit
Unload
Vision
Height
Home
Height
Board
Clamps
Change
Screen
Open
Cover
Exit
Board
Clamps
Exit
Board
Clamps
Exit
MACHINE PROGRAMMING
STAGE 5A - MAGNETIC PILLARS TOOLING
1.20 User Manual
27. Select Exit (F8).
28. Either:
a. Close the front printhead cover.
or
b. Lower the printhead shutter.
29. Press the System button.
30. Select Vision Height (F3). The message ‘Table at Vision Height. Check
Tooling Clearance’ is displayed.
31. Select Contact Height (F3).
The following window and menu bar is displayed:
32. Select Continue (F1). The message ‘Table at Contact Height. Check
Tooling Clearance’ is displayed.
33. Select Open Cover (F7).
34. Either:
a. Open the front printhead cover.
or
b. Raise the printhead shutter.
Board
Clamps
Exit
Unload
Vision
Height
Home
Height
Board
Clamps
Change
Screen
Open
Cover
Exit
Contact
Height
Tra nsp r t
Height
Change
Screen
Open
Cover
Exit
Contact Height Warning
WARNING Check for obstructions between
the Rails and the Screen
Continue
Open
Cover
Exit
Continue
Open
Cover
Exit
Vision
Height
Open
Cover
Exit
MACHINE PROGRAMMING
STAGE 5A - MAGNETIC PILLARS TOOLING
User Manual 1.21
35. Check that the setup of the tooling is adequate for the board, adjust as
necessary.
NOTE
If adjustment is required, this can be carried out at Transport Height.
36. Either:
a. Close the front printhead cover.
or
b. Lower the printhead shutter.
37. Press the System button.
38. Select Exit (F8).
39. Select Exit (F8).
The following window and menu bar is displayed:
40. Select Continue (F1).
Exit
Vision
Height
Open
Cover
Exit
Leaving Generic Tooling
WARNING You are about to return
to the Setup Page
Clear all tooling setup
equipment before proceeding
Continue Cancel
Continue Cancel
