MACHINE PROGRAMMING
STAGE 5E - FORMFLEX TOOLING
1.56 User Manual
The following window and menu bar is displayed:
39. Select Continue (F1).
40. Select Auto Board (F1). The message ‘Board on rails, remove and
continue’ is displayed.
41. Remove the board from the rails.
42. Select Continue (F1).
43. Either:
a. Open the front printhead cover.
or
b. Raise the printhead shutter and lower the drop down panel.
44. To adjust the width of the chase rails to accommodate the stencil for the
product file loaded, carry out the following (ASM only):
a. Press and hold the left hand chase rail push button valve.
b. Slide the left hand chase rail to the desired position indicated on the
Leaving Generic Tooling
WARNING You are about to return
to the Setup Page
Clear all tooling setup
equipment before proceeding
Continue Exit
Continue Exit
Auto
Board
Manual
Board
Continue
Open
Cover
MACHINE PROGRAMMING
STAGE 5E - FORMFLEX TOOLING
User Manual 1.57
graduated scale.
c. Release the push button valve.
d. Repeat the procedure for the right hand chase rail.
45. If the stencil size is less than 29″ x 29″ the screen depth adjuster position is
to be adjusted as follows (ASM only):
a. Slide the screen depth adjuster towards the front of the machine.
b. Lift the adjuster clear of the two locating screws.

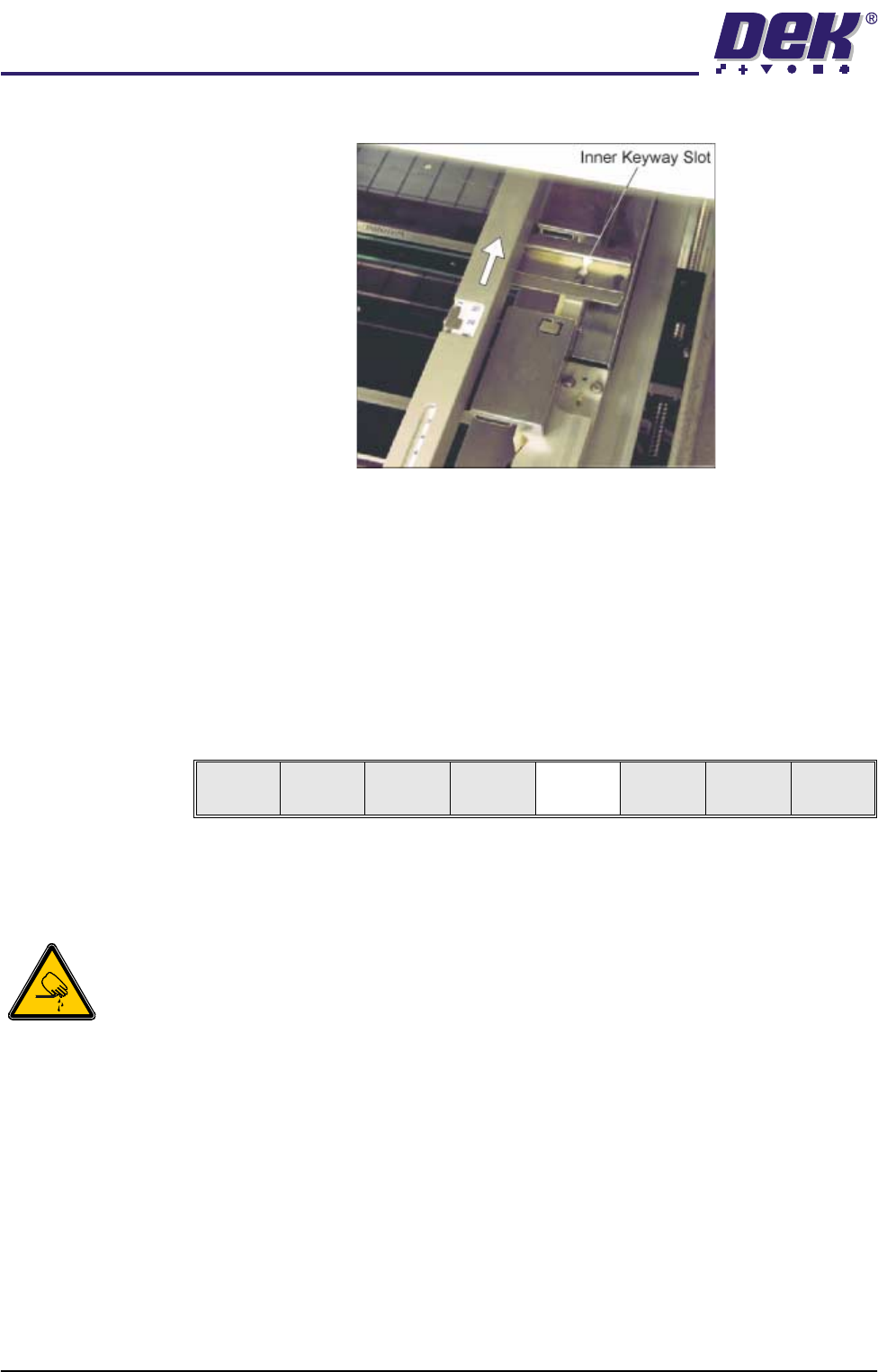

c. Using the inner pair of keyway slots locate the adjuster on the chase and
MACHINE PROGRAMMING
STAGE 5E - FORMFLEX TOOLING
1.58 User Manual
slide the adjuster to the rear of the machine to lock in place.
46. Ensuring for the correct orientation of the stencil, load the stencil against the
left hand chase rail.
47. Either:
a. Close the front printhead cover.
or
b. Raise the drop down panel and lower the printhead shutter.
48. Press the System button.
49. Select Change Screen (F2).
50. Go to Stage 6.
Universal Set Plate Procedure
WARNING
BOARD CLAMPS. EXTREME CARE MUST BE EXERCISED WHEN WORKING IN
THE TOOLING AREA OF THE MACHINE TO AVOID INJURY. THE FOILS ON THE
FRONT AND REAR BOARD CLAMPS ARE VERY SHARP.
CAUTION
BOARD CLAMPS.
Care must be taken to ensure that the board clamps are
not damaged when removing or replacing tooling.
NOTE
1. Ensure that Generic Tooling is set to Enabled in Set Prefs.
2. When using FormFlex, the print gap in the product file must be set to zero.
1. If there is a screen loaded continue with Step 2. If there is no screen loaded
go to Step 7.
2. Select Change Screen (F5). The message ‘Open Front Cover and
Mode
Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Tool ing
Change
Language
Exit
