MACHI NE PROG RAMMI NG STAGE 5 A - M AGNET IC PILL ARS TOO LING User Manual 1.21 35. Che ck that the setup of the too ling is adequate for the boar d, adjust as necessary . NOTE If adj ustment i s required, this can be c…
MACHINE PROGRAMMING
STAGE 5A - MAGNETIC PILLARS TOOLING
1.20 User Manual
27. Select Exit (F8).
28. Either:
a. Close the front printhead cover.
or
b. Lower the printhead shutter.
29. Press the System button.
30. Select Vision Height (F3). The message ‘Table at Vision Height. Check
Tooling Clearance’ is displayed.
31. Select Contact Height (F3).
The following window and menu bar is displayed:
32. Select Continue (F1). The message ‘Table at Contact Height. Check
Tooling Clearance’ is displayed.
33. Select Open Cover (F7).
34. Either:
a. Open the front printhead cover.
or
b. Raise the printhead shutter.
Board
Clamps
Exit
Unload
Vision
Height
Home
Height
Board
Clamps
Change
Screen
Open
Cover
Exit
Contact
Height
Tra nsp r t
Height
Change
Screen
Open
Cover
Exit
Contact Height Warning
WARNING Check for obstructions between
the Rails and the Screen
Continue
Open
Cover
Exit
Continue
Open
Cover
Exit
Vision
Height
Open
Cover
Exit
MACHINE PROGRAMMING
STAGE 5A - MAGNETIC PILLARS TOOLING
User Manual 1.21
35. Check that the setup of the tooling is adequate for the board, adjust as
necessary.
NOTE
If adjustment is required, this can be carried out at Transport Height.
36. Either:
a. Close the front printhead cover.
or
b. Lower the printhead shutter.
37. Press the System button.
38. Select Exit (F8).
39. Select Exit (F8).
The following window and menu bar is displayed:
40. Select Continue (F1).
Exit
Vision
Height
Open
Cover
Exit
Leaving Generic Tooling
WARNING You are about to return
to the Setup Page
Clear all tooling setup
equipment before proceeding
Continue Cancel
Continue Cancel
MACHINE PROGRAMMING
STAGE 5A - MAGNETIC PILLARS TOOLING
1.22 User Manual
41. Select Auto Board (F1). The message ‘Board on rails, remove and
continue’ is displayed.
42. Remove the board from the rails.
43. Select Continue (F1).
44. Either:
a. Open the front printhead cover.
or
b. Raise the printhead shutter and lower the drop down panel.

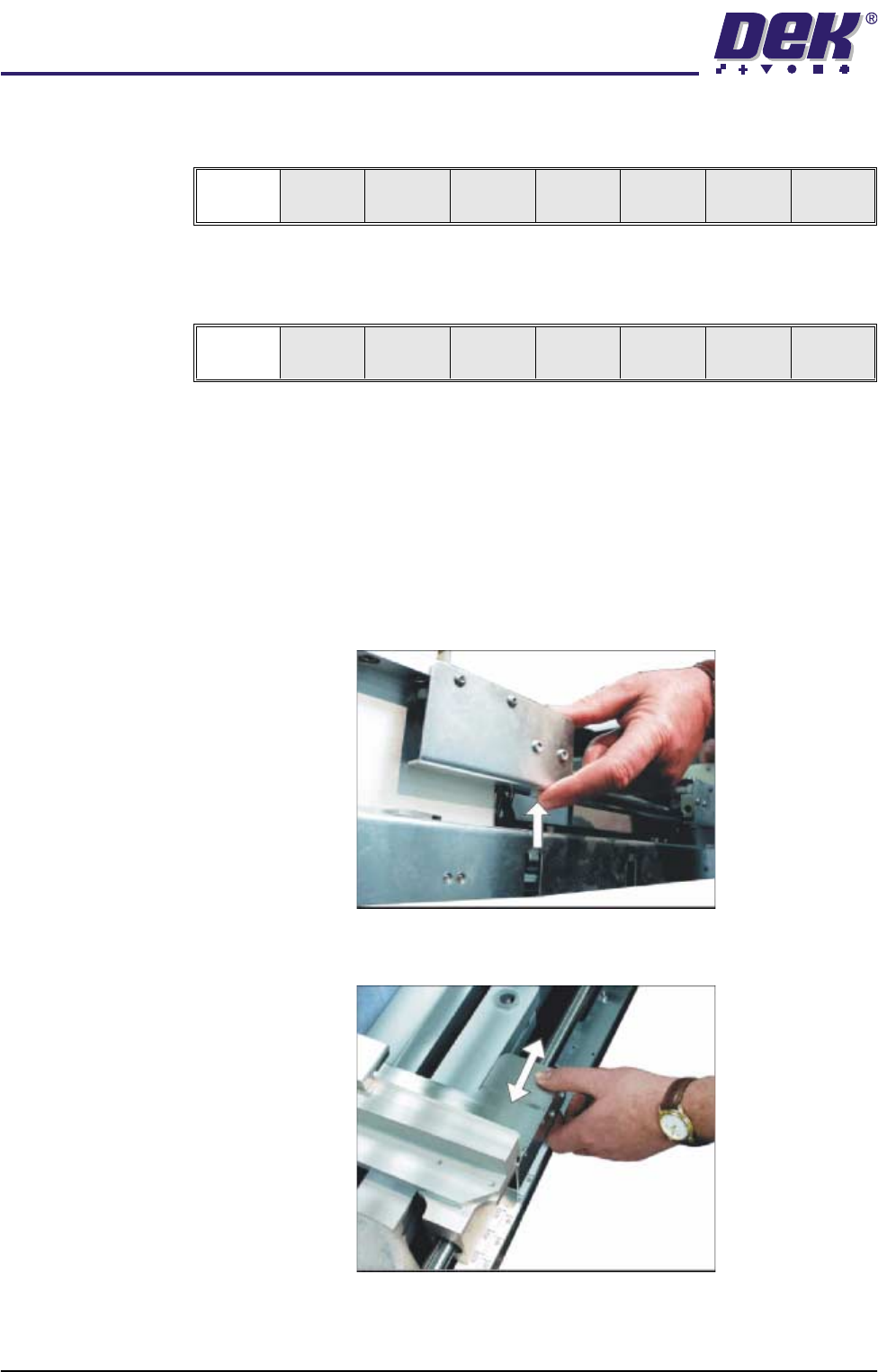

45. To adjust the width of the chase rails to accommodate the stencil for the
product file loaded, carry out the following (ASM only):
a. Press and hold the left hand chase rail push button valve.
b. Slide the left hand chase rail to the desired position indicated on the
graduated scale.
c. Release the push button valve.
d. Repeat the procedure for the right hand chase rail.
Auto
Board
Manual
Board
Continue
Open
Cover
