MACHINE PROGRAMMING
STAGE 5E - FORMFLEX TOOLING
User Manual 1.63
24. Select Load (F1).
25. Select Auto Board (F1).
26. Select Open Cover (F7).
27. Either:
a. Open the front printhead cover.
or
b. Raise the printhead shutter.
28. Slide the appropriate size and number of FormFlex blanking plates on to the
tooling modules outside the area of the squeegees/ProFlow transfer head.
Secure the plates using the thumbscrews.
Load
Vision
Height
Home
Height
Board
Clamps
Change
Screen
Open
Cover
Exit
Auto
Board
Manual
Board
Unload
Vision
Height
Home
Height
Board
Clamps
Change
Screen
Open
Cover
Exit
MACHINE PROGRAMMING
STAGE 5E - FORMFLEX TOOLING
1.64 User Manual
29. Ensuring correct orientation, load the product stencil into the machine.
30. Either:
a. Close the front printhead cover.
or
b. Lower the printhead shutter.
31. Press the System button.
32. Select Exit (F8).
33. Select Change Screen (F5).
34. Select Vision Height (F3). The message ‘Table at Vision Height. Check
Tooling Clearance’ is displayed.
35. Select Contact Height (F3).
Board
Clamps
Exit
Unload
Vision
Height
Home
Height
Board
Clamps
Change
Screen
Open
Cover
Exit
Unload
Vision
Height
Home
Height
Board
Clamps
Change
Screen
Open
Cover
Exit
Contact
Height
Tra nsp r t
Height
Change
Screen
Open
Cover
Exit
MACHINE PROGRAMMING
STAGE 5E - FORMFLEX TOOLING
User Manual 1.65

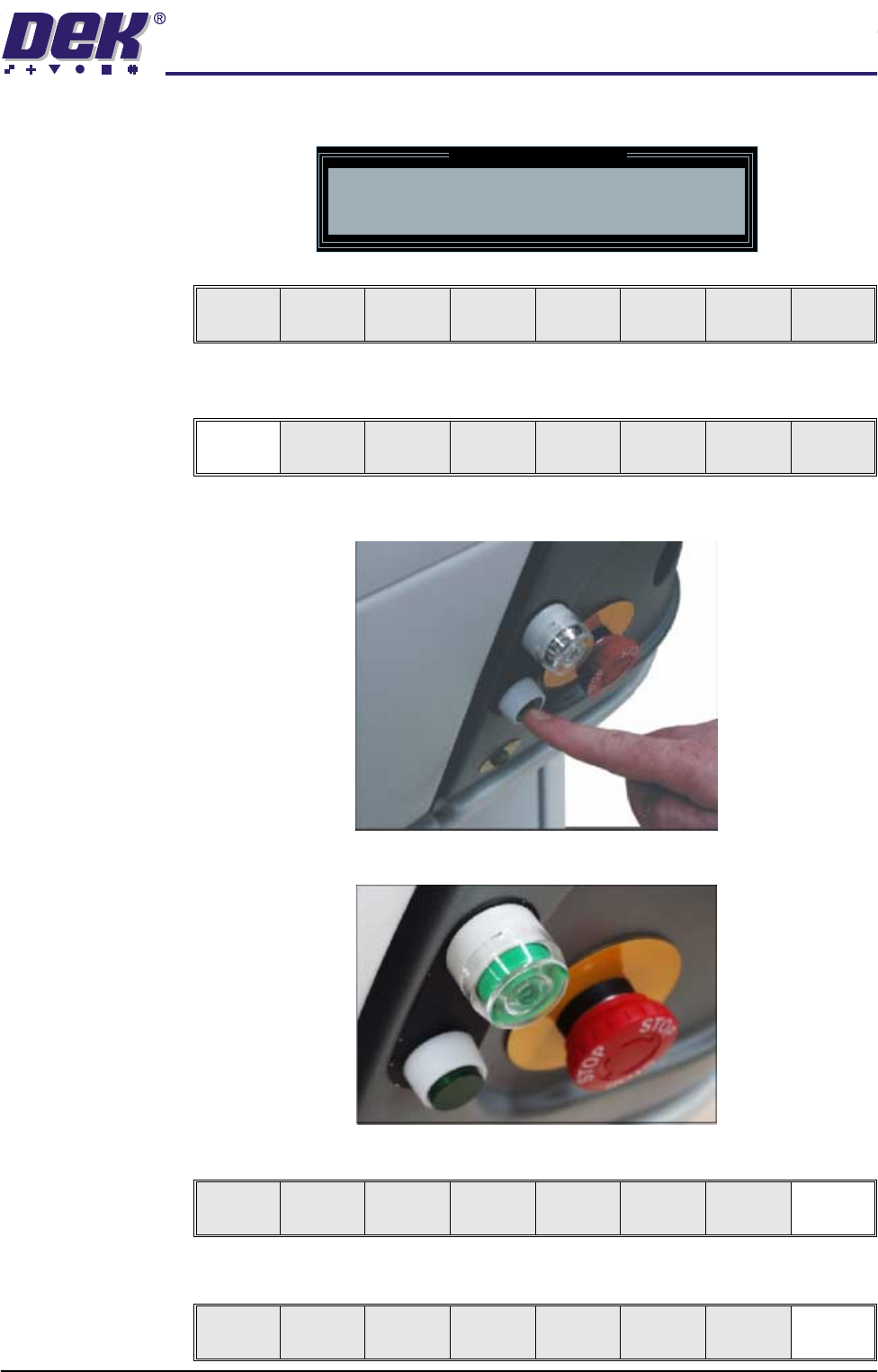

The following window and menu bar are displayed:
36. Select Continue (F1). The message ‘Table at Contact Height. Check
Tooling Clearance.’ is displayed.
37. Press the operator switch on the front of the machine covers.
38. Wait until the pneumatic indicator on the front cover displays green
39. Select Exit (F8).
40. Select Exit (F8).
Contact Height Warning
WARNING Check for obstructions between
the Rails and the Screen
Continue
Open
Cover
Exit
Continue
Open
Cover
Exit
Exit
Vision
Height
Open
Cover
Exit
