MDOC‑SOFT50394 11/22
No.
21
ItemName
[Alignment]X‑Upper
limit[mm]
Explanation
Valueof[Machine]‑[MachineData]‑[PickupMACS][NozzleMACS]‑
[CorrectLimitX(mm)].
(OnlywhenNozzleAlignmentCheckisexecuted)
MeasureresultofnozzlegapsY.
(OnlywhenNozzleAlignmentCheckisexecuted)
Valueof[Machine]‑[MachineData]‑[PickupMACS][NozzleMACS]‑
[CorrectLimitY(mm)].
(OnlywhenNozzleAlignmentCheckisexecuted)
22
[Alignment]Y‑gaps[mm]
23 [Alignment]Y‑Upper
limit[mm]
*Exampleoflogfile
V1.00,MultiLanguage
EN,Date,TableNo,HeadNo,NozzleType,Nozzletation,ExecuteTrigger,VacuumCheck,TipDirtCheck,Buffing
Check,hapeCheck,AlignmentCheck,[Vacuum]VaccumLevel,[Vacuum]PickLowLevel,[Vacuum]PickHigh
Level,[Vacuum]Detectionate,[Vacuum]ErrorDetectionate,[hape]Measurement[um],[hape]Upper
Limit[um],[hape]LowerLimit[um],[Alignment]X‑gaps[mm],[Alignment]X‑Upper
limit[mm],[Alignment]Y‑gaps[mm],[Alignment]Y‑Upperlimit[mm]EN,2015/03/1512:00:00,A,1,
TYPE‑301,1,NHC,OK,OK,OK,OK,OK,200,180,200,100,30,2000,2040,1960,0.100,0.150,0.200,0.160
EN,2015/03/1512:01:00,A,3,TYPE‑301,3,CH,,NG,OK,OK,OK,,,,,,2000,2040,1960,0.200,0.150,0.100,0.160EN
,2015/03/1512:02:00,B,8,TYPE‑302,28,UTL,OK,,,,,190,104,190,100,28,,,,,,,
4.SettingMethod
4.1MachineSetting
4.1.1InstallationSetting
Set［Machine］‑[Setting]‑[MachineInformation]‑[InstallationSetting]‑[NozzleHealthCheck]
to“Use”.
ProductEngineeringDivision
SMTSection
IMOperations
YAMAHAMOTORCO.,
LTD
MDOC‑SOFT50394 12/22
Theconditionsforusing[NozzleHealthCare]functionareasfollows.▲4
1.YSM40R
2.SuperHi‑SpeedHead
3.Enable[AutoNozzleChange]function
Set[Vmspec]‑[MachineVariationSetting]‑[NozzleStation]to“Use”.Set
[Vmspec]‑[NozzleStation]‑[Use/NotUse]to“Use”.
4.Set[Vmspec]‑[NozzleStation]‑[NozzleFreeLayoutSetting]to“Use”.
4.1.2Checkingconditions
NozzleHealthCheckisperformedbasedonthemachinesetting.
1)VacuumCheck

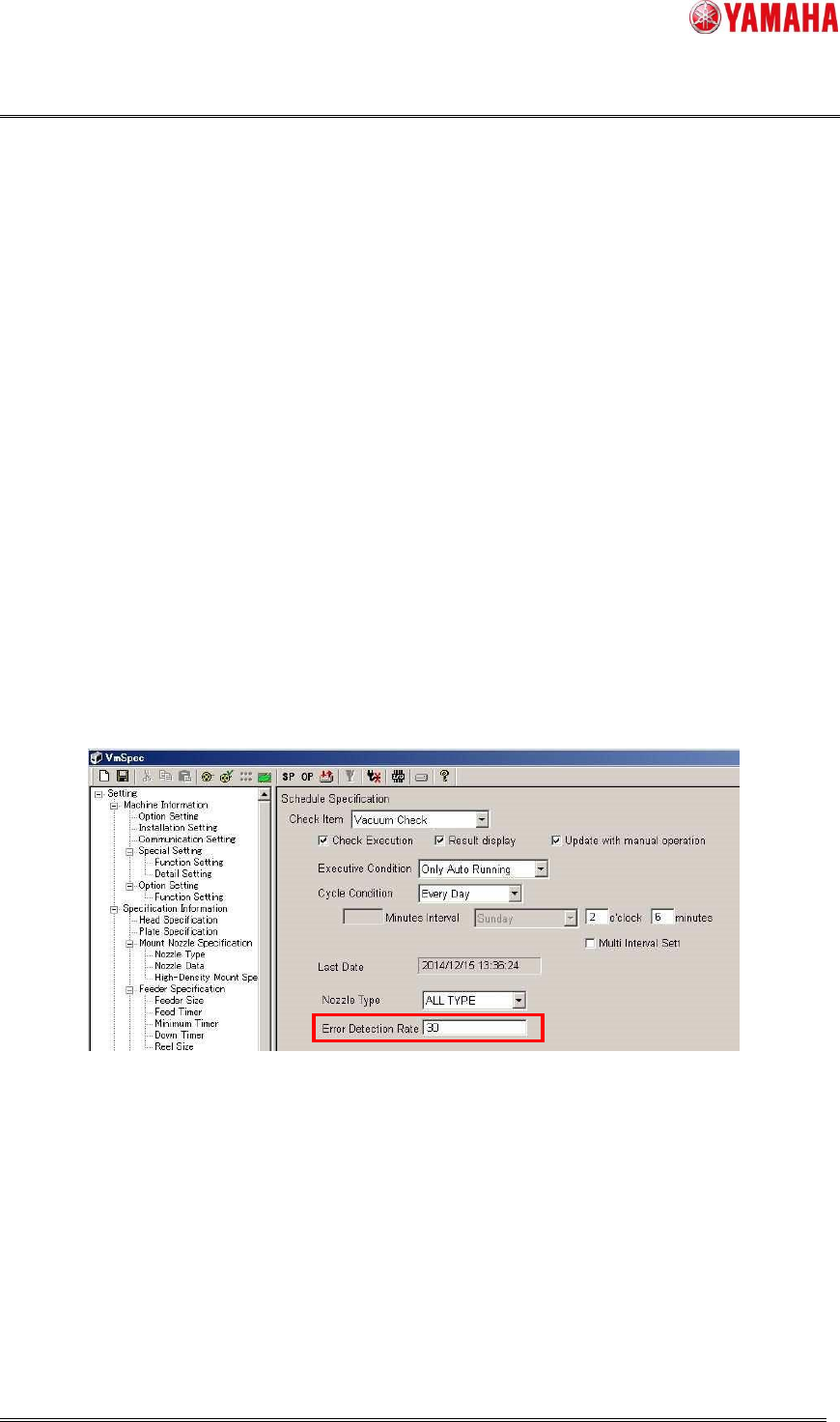

Errordetectionrateofeachmachinemodelisasthefollowingsettingvalues.OnYS88,
YS100,YS12SeriesYG12Series,YS24(X)series
［Machine］‑[Setting]‑[SpecificationInformation]‑[ScheduleSpecification]‑[Vacuum
Check]‑[ErrorDetectionRate]

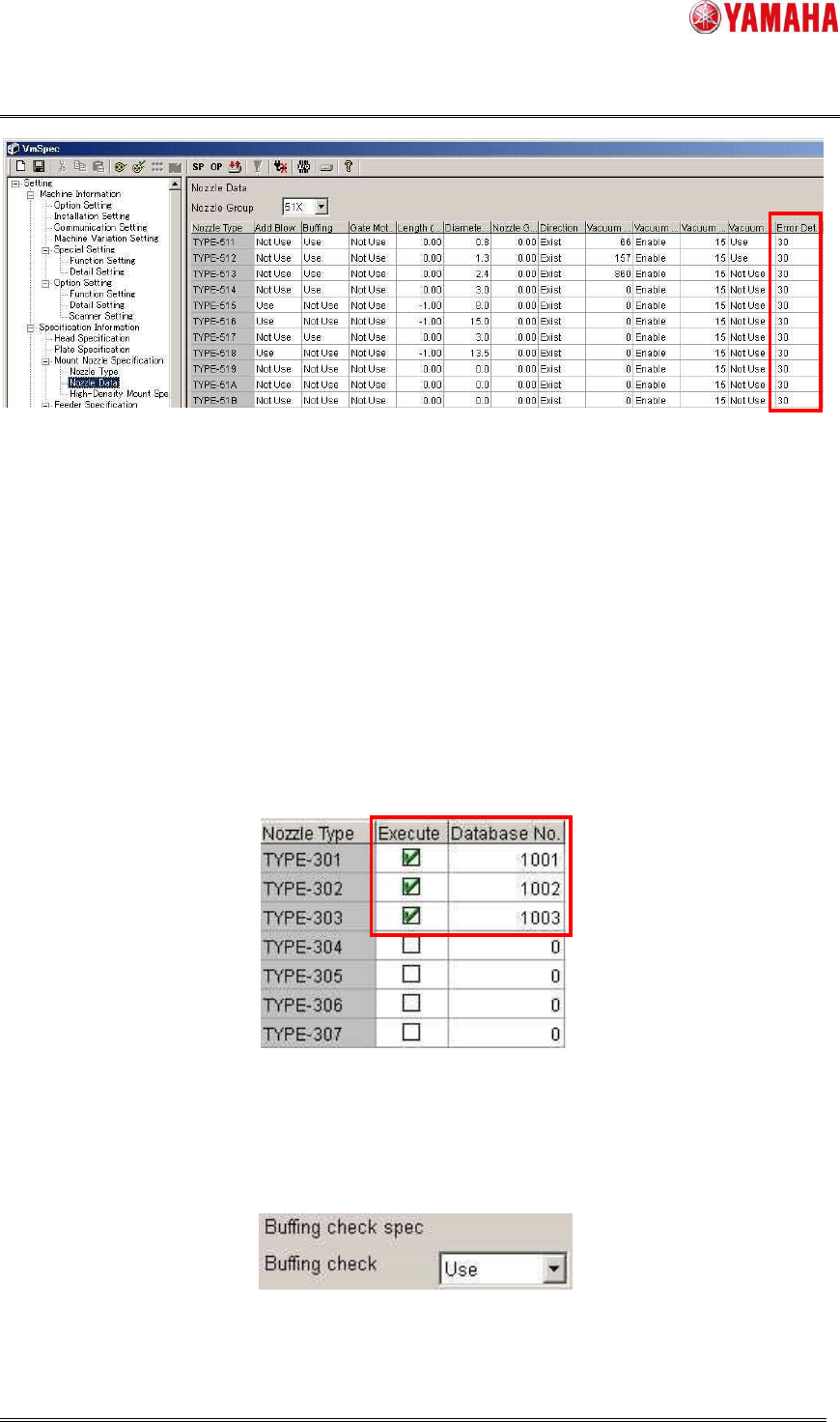

OnYSMSeries▲2,3,4
［Machine］‑[Setting]‑[SpecificationInformation]‑[MountNozzleSpecification]‑[Nozzle
Data]‑[ErrorDetectionRate(%)]
ProductEngineeringDivision
SMTSection
IMOperations
YAMAHAMOTORCO.,
LTD
MDOC‑SOFT50394 13/22
Inthesample,iferrorrateofvacuumcheckisover30%,itisjudgedas“NG”.Ifsmallerthanthat,itis
judgedas“OK”.
ErrorDetectionRate(%)=(Meaured–Minimum)/(Maximum–Minimum)x100※
Minimum=PickLevel,Maximum=MountLevel
2)NozzleTipDirtCheck
NozzleTipDirtCheckisperformedforanozzlewith[Setting]‑[SpecificationInformation][Schedule
Specification]‑[NozzleTipDirtCheck]setto“Execute”.
3)BuffingCheck
ToexecuteBuffingCheck,set[Setting]–[SpecificationInformation]‑[Buffingcheckspec][Buffingcheck]
to“Use”.
※NozzleBuffingCheckworksunderthefollowingconditions.
