Inthesample,iferrorrateofvacuumcheckisover30%,itisjudgedas“NG”.Ifsmallerthanthat,itis
judgedas“OK”.
ErrorDetectionRate(%)=(Meaured–Minimum)/(Maximum–Minimum)x100※
Minimum=PickLevel,Maximum=MountLevel
2)NozzleTipDirtCheck
NozzleTipDirtCheckisperformedforanozzlewith[Setting]‑[SpecificationInformation][Schedule
Specification]‑[NozzleTipDirtCheck]setto“Execute”.
3)BuffingCheck
ToexecuteBuffingCheck,set[Setting]–[SpecificationInformation]‑[Buffingcheckspec][Buffingcheck]
to“Use”.
※NozzleBuffingCheckworksunderthefollowingconditions.
ProductEngineeringDivision
SMTSection
IMOperations
YAMAHAMOTORCO.,
LTD
MDOC‑SOFT50394 14/22
・Onthefollowingmachines.
YS12、YG12、YS24、YS24X、YSMSeries
・[Setting]‑[MachineInformation]‑[Installation]‑[CleaningBlowUnit]issetto“Exist”.
・Headdoesnothaveshaftbuffingequipment.
4)NozzleShapeCheck
NozzleShapeCheckisperformedonlyforanozzlewith[Setting]‑[SpecificationInformation][SideView
CameraSpec]‑[NozzleBasicSetting]‑[SideViewCamera]issetto“Use”.
※NozzleShapeCheckworksunderthefollowingconditions.
・Onamachineequippedwithasideviewcamera.
5)NozzleAlignmentCheck

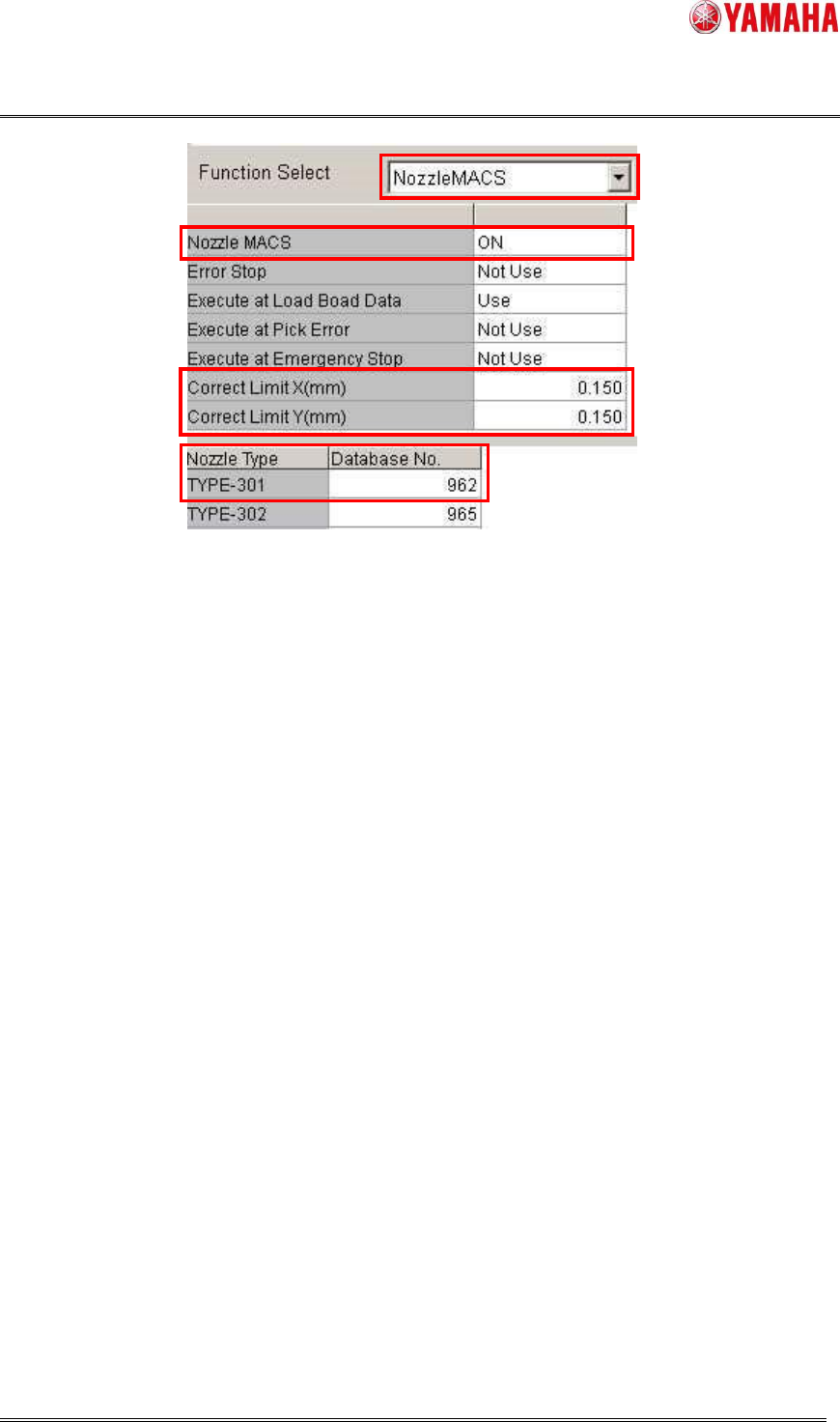

NozzleAlignmentCheckisperformedbasedonthesettingof[Setting]‑[MachineData][Precision]‑
[PickupMACS]‑[NozzleMACS].Set[NozzleMACS]to“ON”.
ThetargetnozzletypeshouldberegisteredasdatabaseNo.960/962/963.Itisjudgedas“NG”when
misalignmentfromtherotationcenterofanozzleisover[CorrectLimit(mm)]ofNozzleMACS.
ProductEngineeringDivision
SMTSection
IMOperations
YAMAHAMOTORCO.,
LTD
MDOC‑SOFT50394 15/22
4.2SoftwareSetting
Whenthe[SaveNGimages.]checkboxischecked,itsavesanimageofNGnozzledetectedbyTipDirt
Check,ShapeCheck,orAlignmentCheck.
Whenthe[Savelogfile]checkboxischecked,itsaveslogfileofcheckresults.Butwhen[OutputPath]is
empty,itdoesnotsavelogfile.
Whenthe[Don’tstartrunningifNozzleHealthCheckNGisdetected.]checkboxischecked,auto‑running
doesnotstartaslongasNozzleHealthCheckisnotcompletedoranabnormalnozzleisdetectedinboard
data.IntheNozzleHealthCarefunction,ifthereisusablesparenozzle,auto‑runningstart.▲4
OnlywhentheNozzleHealthCarefunctionisvalid,[TakeoverthenozzlestatusfromNozzleIDReport]is
displayed.Whenthischeckboxischecked,itispossibletotakeoverthenozzlestatusfromNozzleID
Report.Whenthischeckboxisnotchecked,theNozzleHealthCheckstatusissetto[Uncarried]inmachine
poweredon.
※ItispossibletotakeoverOnlythenozzlestatus.TheeachresultoftheNozzleHealthCheck
isnottakenover.▲4
Youneedtohaveadministratorauthoritytomakethissetting.The
outputpathfolderrequiresatleast100MBoffreespace.Thesecheck
boxesareuncheckedbydefault.
