ProductEngineeringDivision
SMTSection
IMOperations
YAMAHAMOTORCO.,
LTD
MDOC‑SOFT50394 12/22
Theconditionsforusing[NozzleHealthCare]functionareasfollows.▲4
1.YSM40R
2.SuperHi‑SpeedHead
3.Enable[AutoNozzleChange]function
Set[Vmspec]‑[MachineVariationSetting]‑[NozzleStation]to“Use”.Set
[Vmspec]‑[NozzleStation]‑[Use/NotUse]to“Use”.
4.Set[Vmspec]‑[NozzleStation]‑[NozzleFreeLayoutSetting]to“Use”.
4.1.2Checkingconditions
NozzleHealthCheckisperformedbasedonthemachinesetting.
1)VacuumCheck
Errordetectionrateofeachmachinemodelisasthefollowingsettingvalues.OnYS88,
YS100,YS12SeriesYG12Series,YS24(X)series
［Machine］‑[Setting]‑[SpecificationInformation]‑[ScheduleSpecification]‑[Vacuum
Check]‑[ErrorDetectionRate]
OnYSMSeries▲2,3,4
［Machine］‑[Setting]‑[SpecificationInformation]‑[MountNozzleSpecification]‑[Nozzle
Data]‑[ErrorDetectionRate(%)]
ProductEngineeringDivision
SMTSection
IMOperations
YAMAHAMOTORCO.,
LTD
MDOC‑SOFT50394 13/22
Inthesample,iferrorrateofvacuumcheckisover30%,itisjudgedas“NG”.Ifsmallerthanthat,itis
judgedas“OK”.
ErrorDetectionRate(%)=(Meaured–Minimum)/(Maximum–Minimum)x100※
Minimum=PickLevel,Maximum=MountLevel
2)NozzleTipDirtCheck
NozzleTipDirtCheckisperformedforanozzlewith[Setting]‑[SpecificationInformation][Schedule
Specification]‑[NozzleTipDirtCheck]setto“Execute”.
3)BuffingCheck
ToexecuteBuffingCheck,set[Setting]–[SpecificationInformation]‑[Buffingcheckspec][Buffingcheck]
to“Use”.
※NozzleBuffingCheckworksunderthefollowingconditions.
ProductEngineeringDivision
SMTSection
IMOperations
YAMAHAMOTORCO.,
LTD
MDOC‑SOFT50394 14/22
・Onthefollowingmachines.
YS12、YG12、YS24、YS24X、YSMSeries
・[Setting]‑[MachineInformation]‑[Installation]‑[CleaningBlowUnit]issetto“Exist”.
・Headdoesnothaveshaftbuffingequipment.
4)NozzleShapeCheck

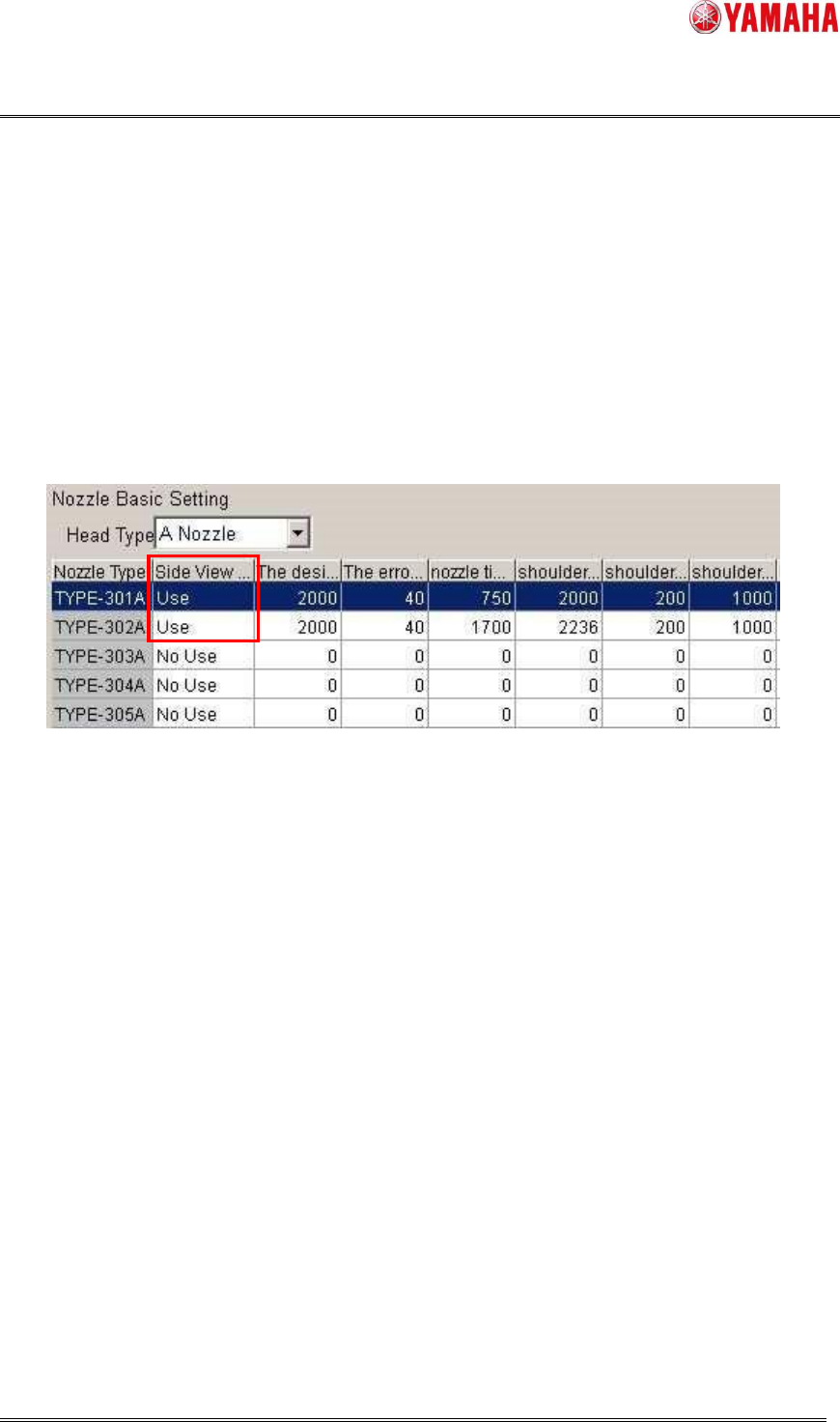

NozzleShapeCheckisperformedonlyforanozzlewith[Setting]‑[SpecificationInformation][SideView
CameraSpec]‑[NozzleBasicSetting]‑[SideViewCamera]issetto“Use”.
※NozzleShapeCheckworksunderthefollowingconditions.
・Onamachineequippedwithasideviewcamera.
5)NozzleAlignmentCheck
NozzleAlignmentCheckisperformedbasedonthesettingof[Setting]‑[MachineData][Precision]‑
[PickupMACS]‑[NozzleMACS].Set[NozzleMACS]to“ON”.
ThetargetnozzletypeshouldberegisteredasdatabaseNo.960/962/963.Itisjudgedas“NG”when
misalignmentfromtherotationcenterofanozzleisover[CorrectLimit(mm)]ofNozzleMACS.
