Operation Handbook
3-2
Chapter 3
This chapter describes the production procedure.
Production
Preparation For Operation Ⅰ > Nozzle type and applied part
Preparation For Operation Ⅰ
Production
2. Nozzle type and applied part
1. Type of nozzle
Nozzle
Name
CN020 CN030 CN040 CN065 CN140 CN220 CN400 CN400N CN750 CN110
External
shape
Outside
diameter
Φ
0.5
Φ
0.6
Φ
0.75
Φ
1.2
Φ
2.2
Φ
3.6
Φ
6.2
Φ
6.2
Φ
9.0
Φ
12.7
Inside
diameter
Φ
0.16
Φ
0.28
Φ
0.38
Φ
0.65
Φ
1.4
Φ
2.2
Φ
4.0
Φ
4.0
Φ
7.5
Φ
11.0
Disk
diameter
Φ
9.8
Φ
9.8
Φ
9.8
Φ
9.8
Φ
9.8
Φ
9.8
Φ
9.8
Φ
13.4
Φ
13.4
Φ
15.6
ㆍ Select the appropriate nozzle according to the type and size of the part to be placed.
For a detailed description of how to check and clean the nozzle, please refer to “Chapter 2 Daily Inspection” in the maintenance handbook.
Operation Handbook
3-3
Chapter 3
This chapter describes the production procedure.
Production
Preparation For Operation Ⅰ > Nozzle type and applied part
Preparation For Operation Ⅰ
2. Nozzle type and applied part
Nozzle
name
Material
number
Minimum
part width
Applied part
CN020 J90551006A 0.2~0.50 0402 Chip
Dedicated
CN030 J9055133C 0.3 ~ 1.5 0603 Chip
Dedicated
CN040 J9055134C 0.5 ~ 1.25 1005 Chip
Dedicated
CN065 J9055136C 0.8 ~ 2.5 1608, 2012, 3216, Melf, Hemt, SSOP03, TR(23), TR2, Chip- Tantal(3012)
CN140 J9055134C 2.5 ~ 4.0 3216, 6432, Chip-Aluminum(5753), Chip-Tantal(7343), TR(13), Trimmer, SOP2(04), SOP(48), SSOP08
CN220 J9055351A 4.0 ~ 7.0 Chip-Aluminum(7268), SOP(48), Connector, QFP(48), Chip-Coil(8280), Chip-Tantal(8060)
CN400 J90551072A 7.0 ~ 10.0 Chip-Aluminum (9082), SOP(66), SOP2(50), QFP(44), PLCC(18), SOJ2, Connector, TR(22), BGA (208G), Chip-Coil(1212)
CN400N J90550258B 7.0 ~ 10.0 SOP, SOP2
CN750 J9055260B 10.0 ~ QFP(Medium)
CN110 J9055260B 20.0 ~ QFP(256), BGA(388G)
ㆍ Select the appropriate nozzle according to the type and size of the part to be placed.
Operation Handbook
3-4
Chapter 3
This chapter describes the production procedure.
Production
Preparation For Operation Ⅰ > Install feeder/nozzle and order parts
Preparation For Operation Ⅰ
Production

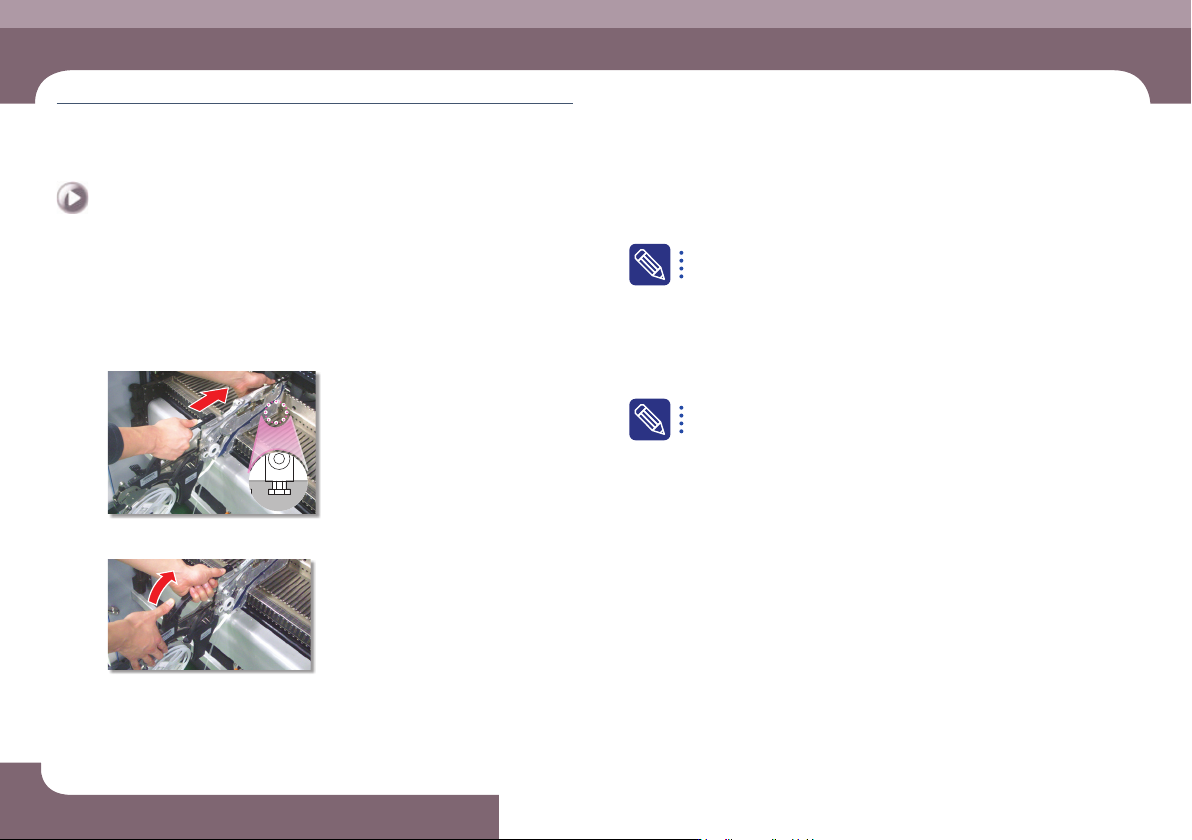

3. Install feeder/nozzle and order parts
◈ Tape Fe eder
1. Check feeder arrangement and install feeders
Step 1.
Secure the feeder in the corresponding slot
Step 2.
Secure the grip
A feeder must be installed as set in the 'Feeder' of the 'PCB Edit'
menu. The method to check whether the feeder is installed correctly
is as follows.
ㆍ The user checks the slot number and part information one by one
manually.
ㆍ When using an IT feeder system, an incorrect feeder insertion can
be checked automatically.
When incorrect feeder insertion occurs, the feeder LED blinks red and
an error message is displayed in the MMI screen. For more details
about the IT feeder system, refer to the corresponding manual.
