Operation Handbook
3-18
Chapter 3
This chapter describes the production procedure.
Production
Preparation For Operation Ⅱ > Check and teach positions
Preparation For Operation Ⅱ
Production
4. Check the placement point
Step 1.
Check the placement point of the PCB
① Select the 'Step' submenu in the 'PCB Edit' menu.
② Select the <Auto> check box and click the arrow button to check the placement
position.
③ Once placement points for the current work station have been checked, click
the combo box in the <Station> group to select another work station
④ Check the placement points for other work stations in the same manner
Step 2.
Teach the placement point
If the currently set placement point is incorrect, teach it again.
Operation Handbook
3-19
Chapter 3
This chapter describes the production procedure.
Production
Production > Loading the PCB file
Production
1. Loading the PCB file
Step 1.
Select the 'Product' menu
ㆍ Displays the 'Product Monitor' screen.
Step 2.
Select the 'Start' submenu (F2)
ㆍ If the 'Start' submenu is selected, the PCB program is downloaded automatically.
Production
Operation Handbook
3-20
Chapter 3
This chapter describes the production procedure.
Production
Production > Starting production (Automatic production)
Production
Production
2. Starting production (Automatic production)
Step 1.

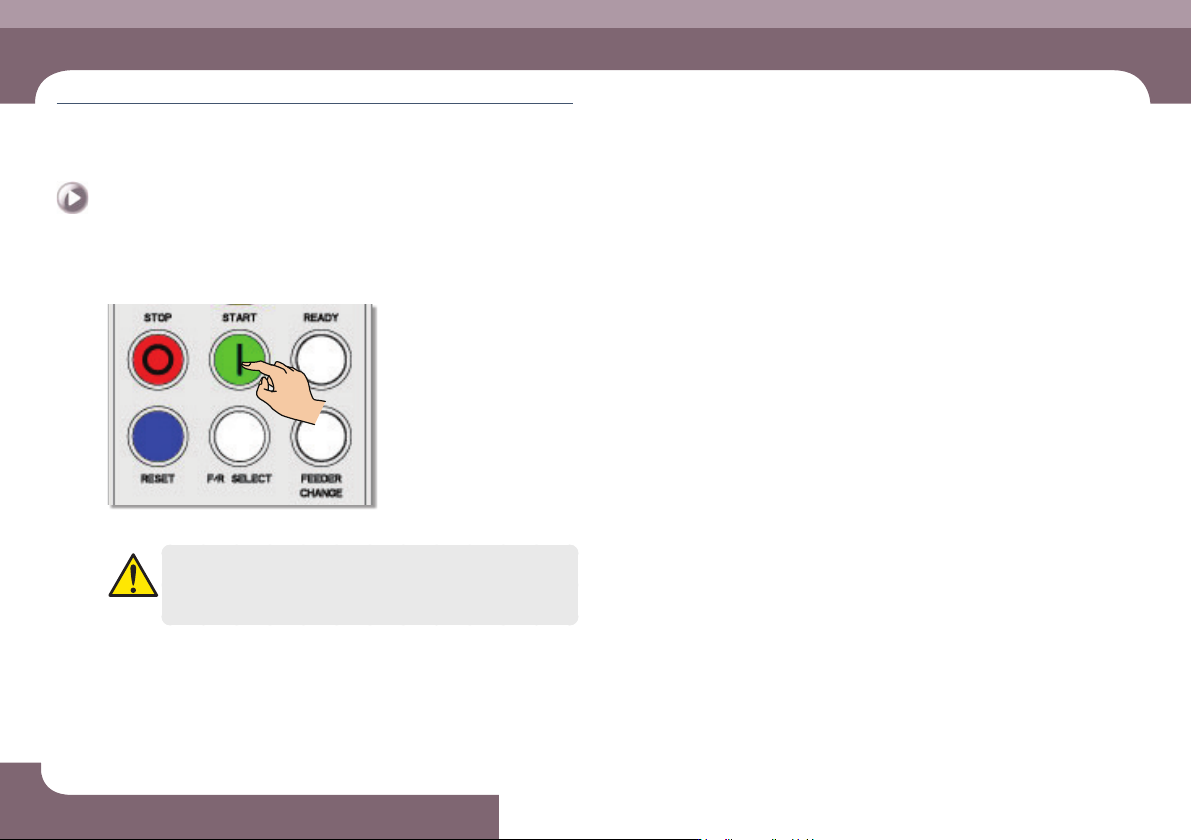

Press 'START' button in the operation pannel
ㆍ Starts production.
Warning
Check if there is a worker around the machine before starting
production.
