Operation Handbook 3-1 0 Chap ter 3 This chapter describes the production procedure. Pr oduction Pr eparat ion Fo r Op erati on Ⅱ > Adjus ting the conve yor wid th Preparation F or Operation Ⅱ Pr oduction 2. Adjusting…
Operation Handbook
3-9
Chapter 3
This chapter describes the production procedure.
Production
Preparation For Operation Ⅱ > Download the PCB file
Preparation For Operation Ⅱ
Step 5.
Select 'PCB D/L'
The file with extension of .opt is the optimization completed file.
Step 6.
The completion of Download the PCB file
ㆍ The PCB file Download is complete.
Operation Handbook
3-10
Chapter 3
This chapter describes the production procedure.
Production
Preparation For Operation Ⅱ > Adjusting the conveyor width
Preparation For Operation Ⅱ
Production
2. Adjusting the conveyor width
Step 1.
Select the 'PCB Edit' menu
Step 2.
Select the 'Board' submenu
Operation Handbook
3-11
Chapter 3
This chapter describes the production procedure.
Production
Preparation For Operation Ⅱ > Adjusting the conveyor width
Preparation For Operation Ⅱ

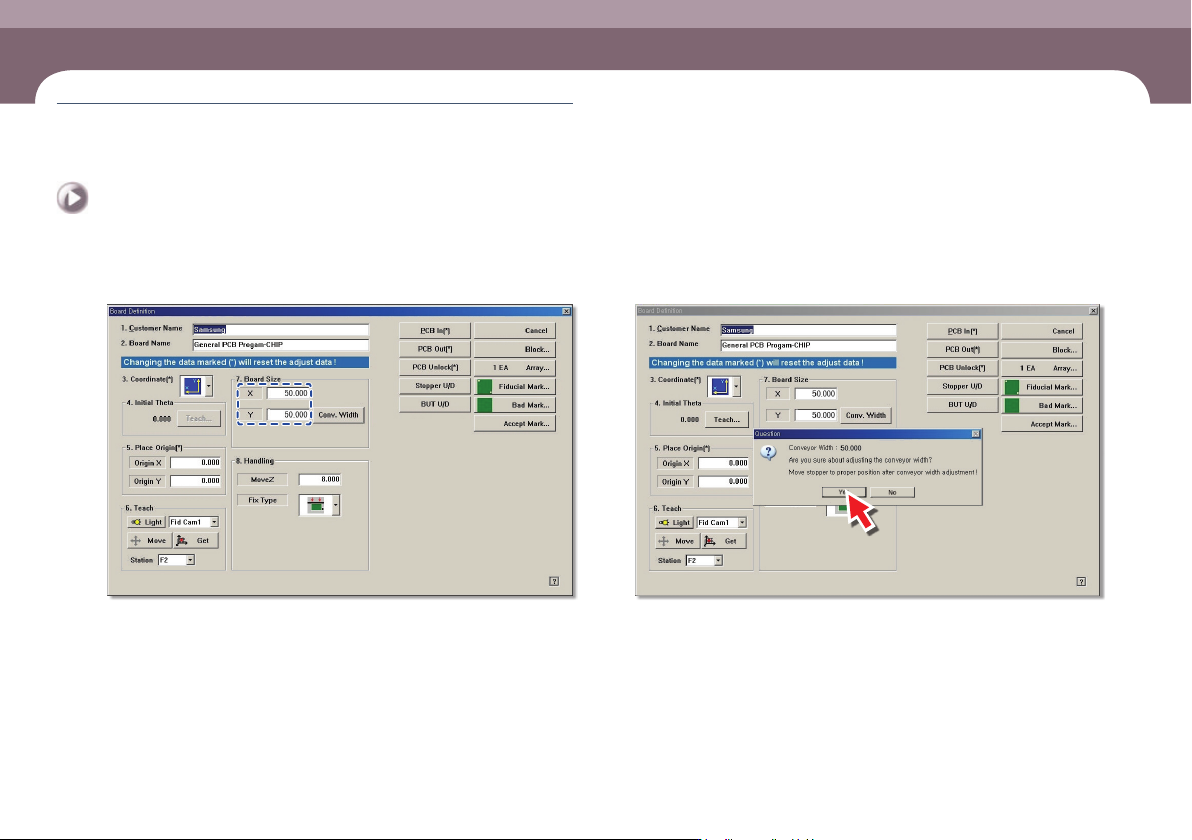

Step 3.
Enter Y size of PCB in the <7.Board Size> group
Step 4.
Click the <Conv. Width> button
