Operation Handbook
3-14
Chapter 3
This chapter describes the production procedure.
Production
Preparation For Operation Ⅱ > Arranging the backup-pins
Preparation For Operation Ⅱ
Production
Step 5.
Close the front/rear safety door
Step 6.
Press the 'READY' button
Operation Handbook
3-15
Chapter 3
This chapter describes the production procedure.
Production
Preparation For Operation Ⅱ > Check and teach positions
Preparation For Operation Ⅱ
4. Check and teach positions
1. Check the PCB origin
Step 1.
Check the currently set PCB origin
① Select the 'Board Define' submenu in the 'PCB Edit' menu
② Select <5. Place Origin> group
③ Select the <Move> Button
④ Check the placement origin of the currently set PCB
Step 2.
Teach PCB origin
If the currently set placement origin position is incorrect, teach the placement
origin again.
For further details, refer to '6.1. Basic Setup' in the Administrator's
Guide.
Operation Handbook
3-16
Chapter 3
This chapter describes the production procedure.
Production
Preparation For Operation Ⅱ > Check and teach positions
Preparation For Operation Ⅱ
Production

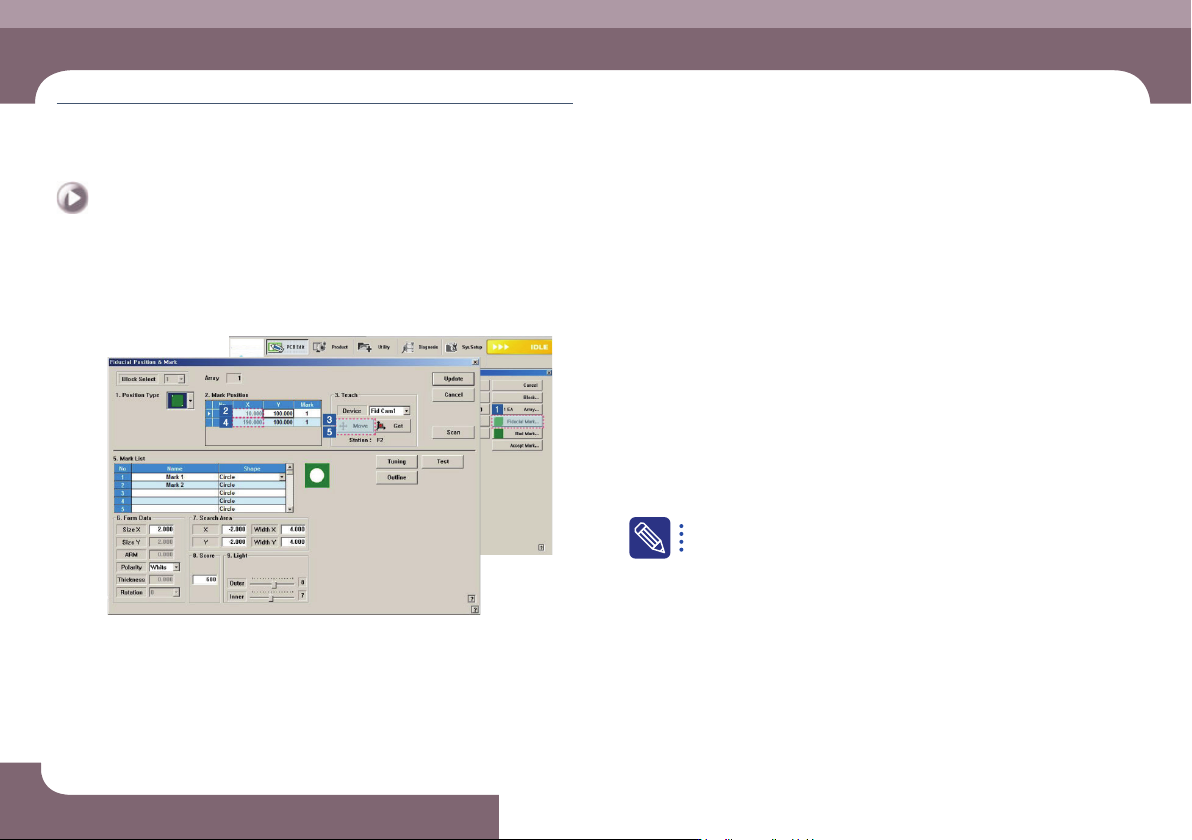

2. Check PCB fiducial mark position
Step 1.
Check the currently set PCB fiducial position
① Click the <Fiducial Mark> button
② Select the first fiducial mark in the <2. Mark Position> group
③ Click the <Move> button
④ Select the second fiducial mark in the <2. Mark Position> group
⑤ Click the <Move> button
⑥ Check the second PCB fiducial mark position
Step 2.
Teach the PCB fiducial mark position
If the current fiducial mark setup is incorrect, teach the fiducial mark again.
For further details, refer to “6.3.1. Fiducial Mark Setup Order” in the
Administrator's Guide.
