5 3. Main Parts 3.1 Reflow Oven Main Body 3.2 Operating Panel
4
2. Specification
Model
NeoDen IN12
Heating Zone Quantity
Upper6 / Down6
Cooling Fan
Upper4
Controller
VGUS Microcomputer
Transmission
Mesh Chain Drive
Heating Type
Nichrome Wire & Aluminum Alloy Heating
Conveyor Speed
50～600 mm/min
Temperature Range
Room temperature～300℃
Temperature Accuracy
1℃
PCB Temperature Deviation
±2℃
Max Soldering Width (PCB Width)
350mm
Length Process Chamber
1354mm
Heat-up Time
30 min
Max Soldering Height (mm)
35mm (includes PCB thickness)
Operation Direction
left→right
Electricity Supply
AC 220v/single phase
Starting Power
2.4kw～4.8kw (adjustable)
Typical Working Power
approx. 2kw(1.5mm fiberglass PCB )
Machine Size
L2300mm×W650mm×H1280mm
Packing Size
L2420mm×W730mm×H1430mm
Net Weight
300KGS
Gross Weight
383KGS
5
3. Main Parts

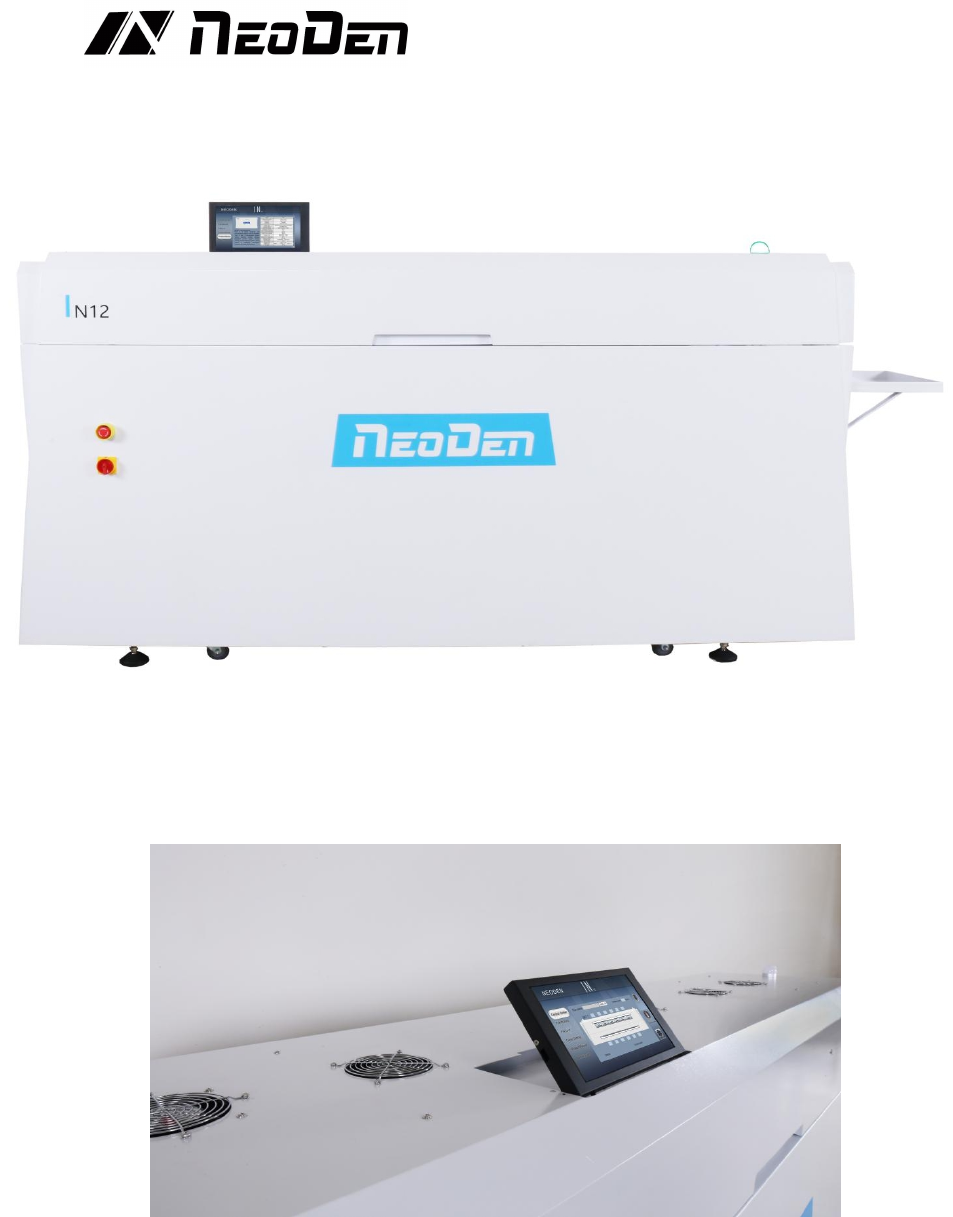

3.1 Reflow Oven Main Body

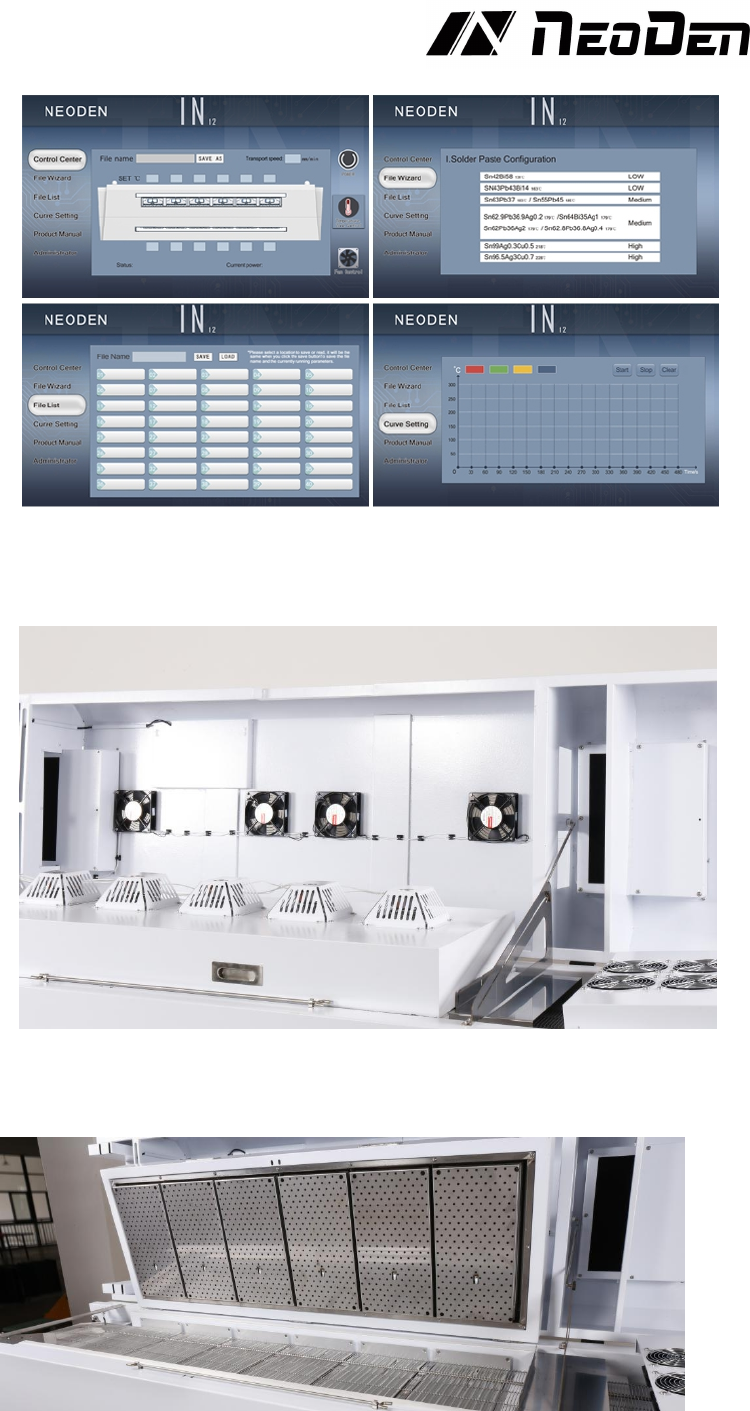

3.2 Operating Panel
6
3.3 Cover and Heating Zone
3.31 Heating Zone
