2 Retrofitting Instructions: M atrix Tray Changer MTC on S-25 HM (Option) SIPLACE 80 S-25 HM 2.7 Installing t he Retrofit Kit 01/01 Issue 80 2. Remove the ang le pi ece (wil l not b e re-us ed) 3. Holddo wn: Not re- inst…
SIPLACE 80 S-25 HM 2 Retrofitting Instructions: Matrix Tray Changer MTC on S-25 HM (Option)
01/01 Issue 2.7 Installing the Retrofit Kit
79
,QVWDOOLQJ1HZ&RPSRQHQW5HMHFW%R[07& &RPSRQHQW7DEOH
The "Component reject box MTC", Item no.: 00355074-01 is required for machines WITH opening
forMTC (approximately from serial no. >
450 and later). It is currently NOT included in the scope
of delivery for the option MTC (see Section 2.5). Prepare for installation as described below.
The "Component reject box component table", Item no.: 00355146-01, is required for machines
WITHOUT opening for MTC (up to about serial no. 449). It is included in the retrofit kit MTC (see:
Section 2.5). This box is placed on the component table, to the right of the MTC. For details ->
see: Section 2.8.3.
,QVWDOOLQJ1HZ&RPSRQHQW5HMHFW%R[07&
.H\
1. Move the screws
2 Retrofitting Instructions: Matrix Tray Changer MTC on S-25 HM (Option) SIPLACE 80 S-25 HM
2.7 Installing the Retrofit Kit 01/01 Issue
80
2. Remove the angle piece (will not be re-used)
3. Holddown: Not re-installed -> see earlier step in work sequence

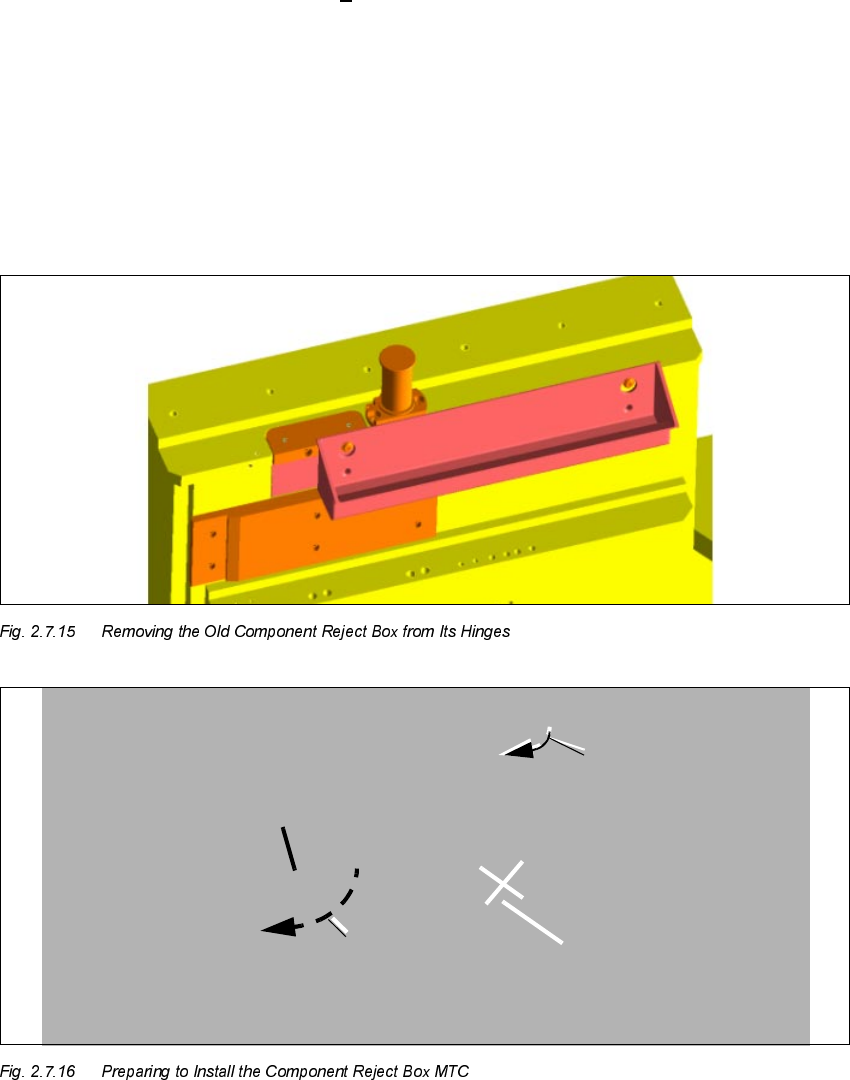

Å Lift out the old component reject box that is on the left on the machine frame.
Å Remove the 2 socket hex head cap screws M4 (see Fig. 2.7.16).
The screws are glued in. Clean the remainder of the Loctite from the threads.
Å Place Loctite no. 243 on the threads: Tighten the two screws in the new positions in the ma-
chine frame.
Å Remove the inserted angle piece from the machine frame (undo 2 socket hex head cap screws
M5).
Retain the angle piece plus the 2 fastening screws and the reject box for possible re-installa-
tion.
NOTE

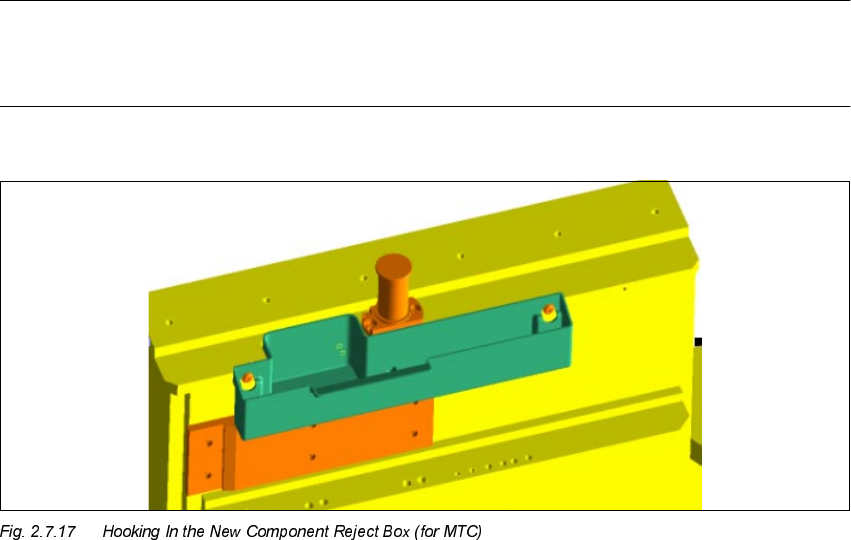

Do not hook in the new component reject box MTC (see Fig. 2.7.17) until after the MTC has been
moved in (see Section 2.8.3, "Assembling the Machine").
Å The actual modification, i.e., the preparations for moving the MTC in, is now concluded.
SIPLACE 80 S-25 HM 2 Retrofitting Instructions: Matrix Tray Changer MTC on S-25 HM (Option)
01/01 Issue 2.7 Installing the Retrofit Kit
81
,QVWDOOLQJWKH&RPSRQHQW5HMHFW%R[&RPSRQHQW7DEOH
Å Use the "component reject box, table", Item no.: 00355146-01, if the machine frame doesn’t
have the opening for MTC (up to approximately serial number 449). Place this reject box - like
a feeder module - on the component table immediately to the right, perhaps not until after the
MTC has been moved in for the first time.
– The reject box requires the feeder locations of 3 feeder modules 2 x 8 mm.
– The "reject box component table" has to be configured later in SITEST (see: Section 2.8.5).
