SIPLACE 80 S-25 HM 2 Retrofitting Instructions: Matrix Tray Changer MTC on S-25 HM (Option) 01/01 Issue 2.8 Installing t he MTC 91 Å Double-cl ick on the li ne in questio n as shown on the followin g screen or select &qu…
2 Retrofitting Instructions: Matrix Tray Changer MTC on S-25 HM (Option) SIPLACE 80 S-25 HM
2.8 Installing the MTC 01/01 Issue
90
Å Starting from the SITEST main view, select
the ICON "Revolver heads" -> and
then "Revolver head 1" or "Revolver head 2" .
Å In the menu "Functions", click on the ICON "Nozzle changer head functions" .
The following will appear on the screen:
Å On the 6-segment revolver head, insert one 9-series nozzle and one 8-series nozzle.
Å In case of an 12- segment revolver head it is only necessary to insert a random 9-series nozzle
on the head (see also Fig. 2.8.10 and NOTE you will find under it).
NOTE
On 12-segment revolver head, there MUST be ONE large nozzle on the head or in garage 1 of
the magazine in question for the measurement of the large nozzles (800 series).
SIPLACE 80 S-25 HM 2 Retrofitting Instructions: Matrix Tray Changer MTC on S-25 HM (Option)
01/01 Issue 2.8 Installing the MTC
91

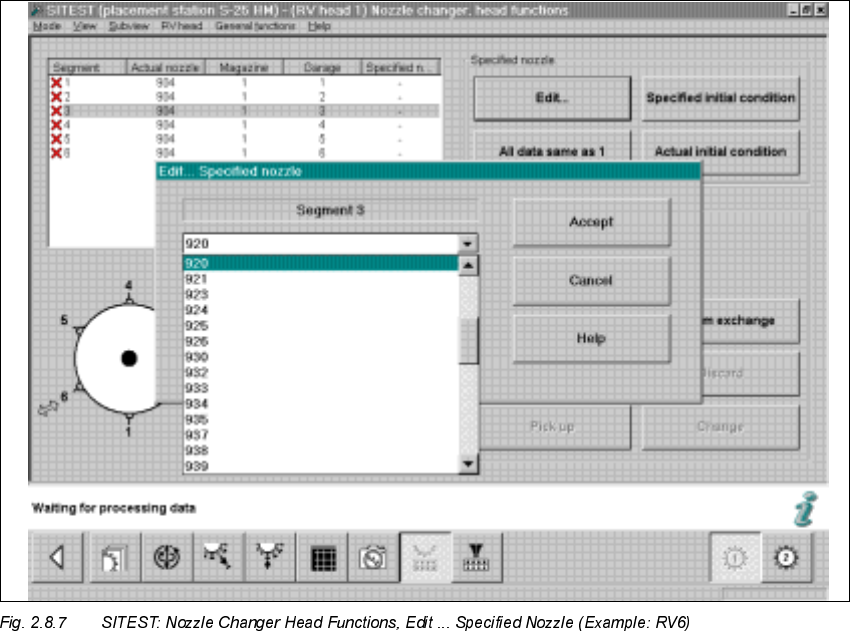

Å Double-click on the line in question as shown on the following screen or select "Edit" (button):
Å In the window that is opening, "Edit...", select the specified nozzle (e.g., type 920) that is con-
figured in the setup -> Select "Accept" (button).
Å Make this selection for each segment in succession.
Å In conclusion, select "Confirm exchange" (button).
2 Retrofitting Instructions: Matrix Tray Changer MTC on S-25 HM (Option) SIPLACE 80 S-25 HM
2.8 Installing the MTC 01/01 Issue
92

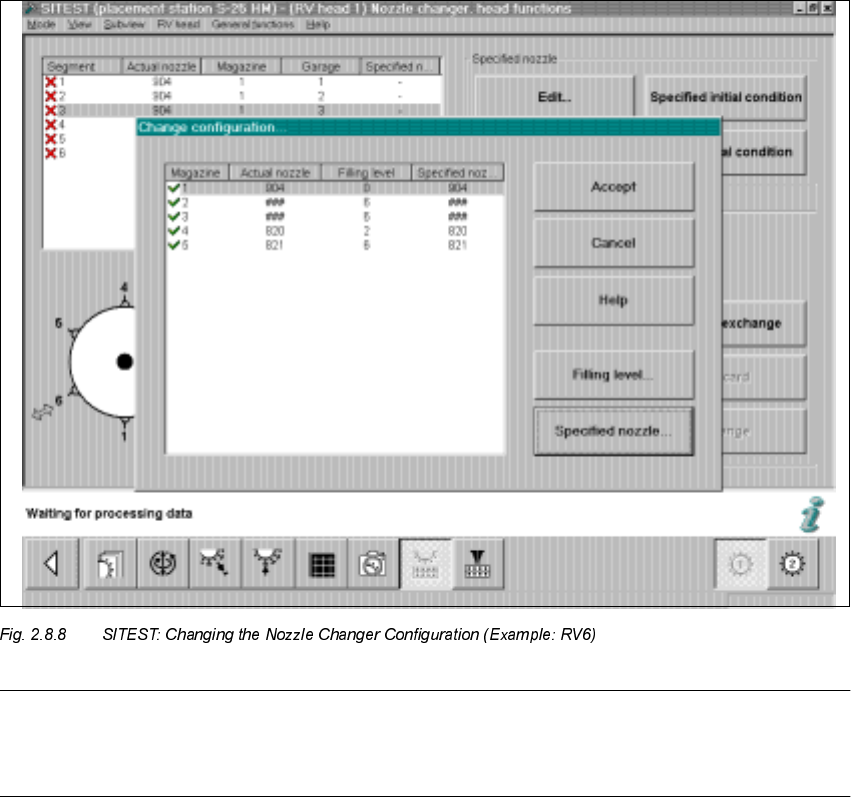

Å Select "Nozzle changer, head functions -> "Change configuration".
The following screen will appear:
NOTE:
- 9 -series magazines must be defined with 9-series nozzle type (e.g., type 920),
- 8-series magazines with an 8-series nozzle type (e.g., type 820).
Å For each magazine, select the SPECIFIED nozzle (e.g., type 920 / 820) that was previously
defined on the head -> Select "Accept" (button) to accept this nozzle as the ACTUAL nozzle.
Å For each magazine, set the "Filling level" (button) to "0" -> Select "Accept" (button) -> Check
the filling levels.
