① <FEED> button
This button knocks a feeder once to feed a component (except a 32-mm
paper tape).
② “Update pick data with new coordinates”
Check this check box to use the HOD device and store the taught result in
Pick data.
If you do not check this box, the taught coordinates are applied to the
current pick-up operation only.
3) “Executing inspection” screen
While the system is checking a component with the vision recognition
function, the following dialog box appears on the screen. On this dialog
box, data on a component being inspected and its pick-up position are
displayed. The process being performed is also displayed.

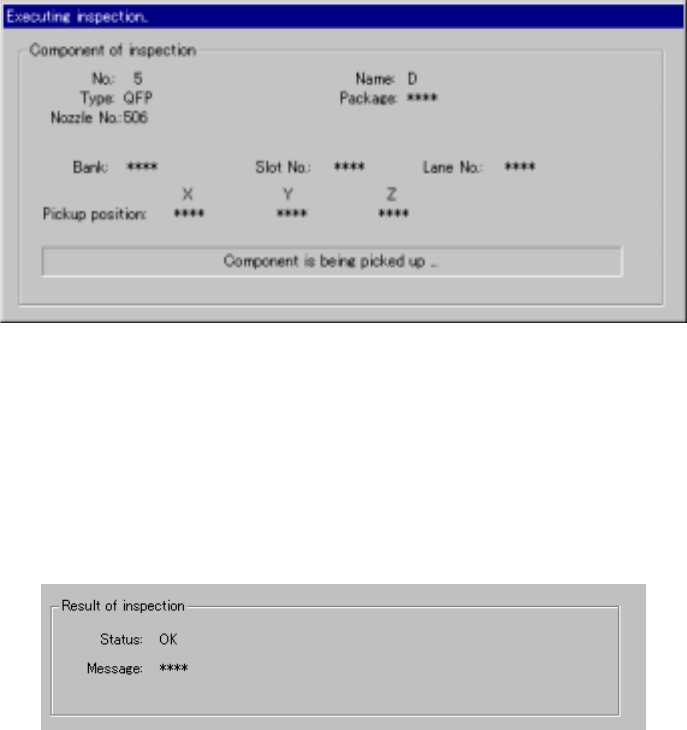

Figure 4.12.3.4.5 “Executing inspection” screen
4) Result of inspection
After checking a component, the system displays the result in the “Result
of inspection” section of the screen. “OK” appears if a component can be
centered based on its vision, while “NG” and the reason of an error
appear in the “Message” space if not.
Figure 4.12.3.4.6 “Result of inspection” section
5) <INSP.> button
This button checks a component with the vision recognition function.
6) <Exit (ESC)> button
This button finishes checking a component with the vision recognition
function and returns to the previous screen.
4 – 209
7) Short-cut keys
The following short-cut keys are available on the “Vision inspection”
screen.
Table 4.12.3.4.1 Available short-cut keys
Keyboard
Operation
panel key
HOD key Action
F10 ENTER Starts checking a component with the
vision recognition function.
F4 Knocks a feeder.
F5 PREVIOUS Previous alternate component
F6 NEXT Next alternate component
ESC CANCEL Returns to the previous screen.
4.12.4 Confirmation
4.12.4.1 Mark - BOC
This command recognizes a BOC mark, then saves the measured coordinates of the
recognized BOC mark to the main unit. These measured coordinates are used to
correct coordinates during teaching of Placement data.
If the safety cover opens after you select the BOC command, the following dialog box
appears on the screen because the function to be invoked operates the axis.
Check the safety of the machine and yourself, then press the <Start> button.

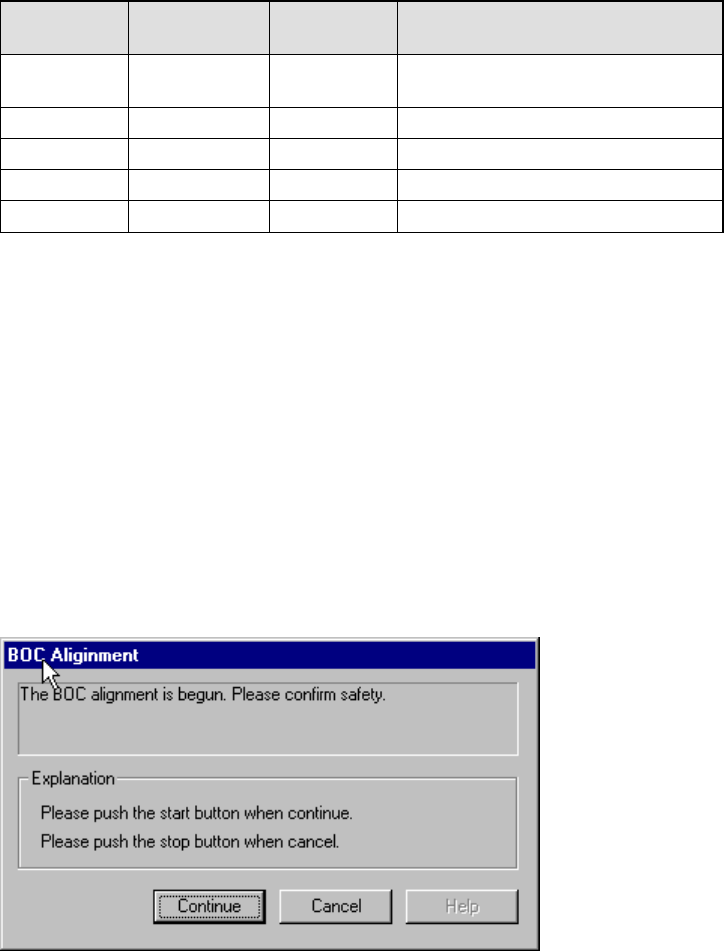

Figure 4.12.4.1.1 BOC alignment - safety confirmation dialog box
4 – 210
When you press the <Start> button, the following dialog box appears on the screen
during BOC alignment operation.
To abort the operation for some reason, press the <Stop> button.
Figure 4.12.4.1.2 “BOC mark alignment” dialog box
1) State
① Circuit no
The number of circuit being recognized is displayed here. This number is
indicated in the format: “current circuit number”/”total number of circuits”.
(Normally, only a BOC of the reference circuit is recognized.)
② Station (available to a KE-2030 only)
The station which is recognizing a BOC mark is displayed here.
2) Progress
The progress bar indicates the progress of the current operation.
