9 − 53
(3) Control button
Each control item can be executed with the control button.
The displayed control buttons vary depending on the control item you selected.
1) Tray
This item extends and/or stores a tray.
- When the control item "Tray" is checked, click the <TrayA>, <TrayB> or
<A/B> button or press the F3, F4 or F5 key to control a tray.
The state of a tray is updated when it is controlled completely.
(4) State display
Each unit state is displayed when it is controlled completely.
☞
9 − 54
9.5.4 MTS control
When you select the [Feeder] command on the [Ctrl] menu, then [MTS control]
command, the following "MTS control" dialog box appears on the screen.

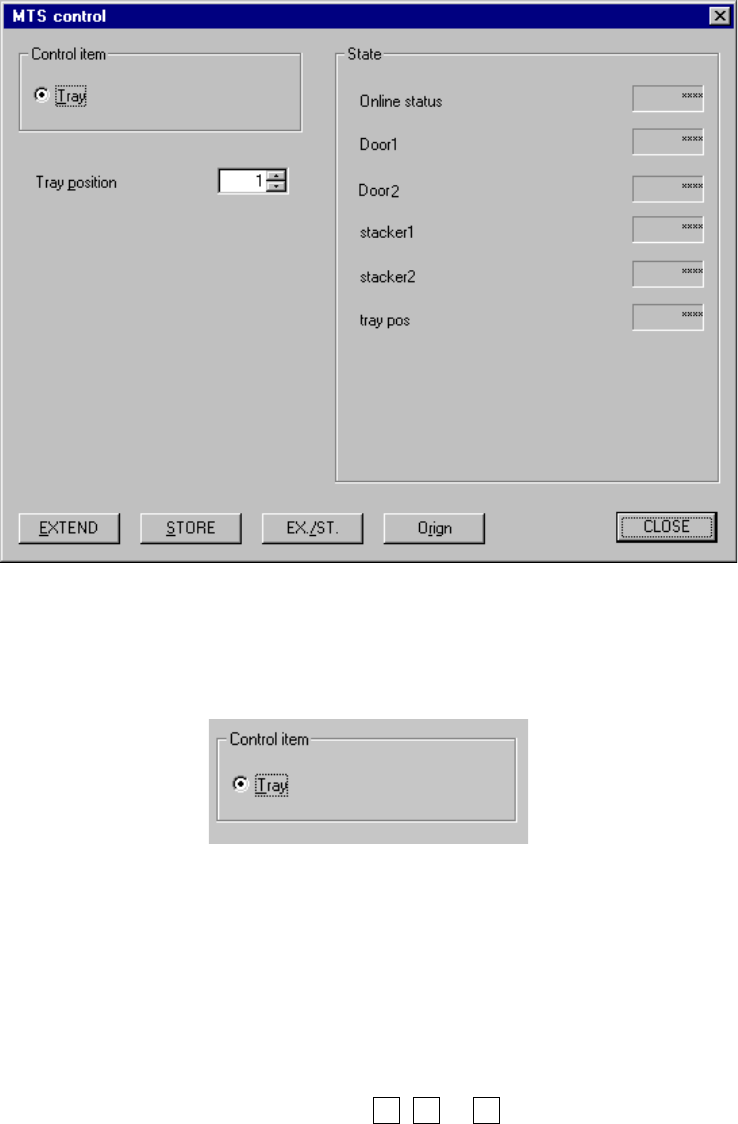

Figure 9.5.4 MTS control dialog box
(1) Control item
Select a control item with the corresponding radio button.
(2) Control button
Each control item can be executed with the control button.
The displayed control buttons vary depending on the control item you selected.
1) Tray
This item extends and/or stores a tray.
- When the control item "Tray" is checked, click the <EXTEND>, <STORE>
or <EX./ST.> button or press the F3, F4 or F5 key to control a tray.
The state of a tray is updated when it is controlled completely.
(3) State display
Each unit state is displayed when it is controlled completely.
☞
9 − 55
9.6 Others
9.6.1 ATC control
When you select the [Others] command from the [Ctrl] menu, then the [ATC control]
command, the following ATC control dialog box appears on the screen.
Figure 9.6.1.1 ATC control screen
(1) Control unit
Select the unit to be controlled from the combo box.
When you press the ALT key and down arrow key at the same time, the
following list appears on the screen.
Note: You can select “R-ATC” only when you use a KE-2030.
