1-50
AKFEMT-ID
4.3 Replacement of Fluorine Sheet and Urethane Clamp
Time of Replacement
It is recommended that they should be replaced once a year.
Replacement Procedure
(1) Zero the cutter.
Reference
Refer to "4.4 "CUTTER ADJ" Window" in "Chapter 4 (Vol. 2)" for the
zeroing operation of the cutter.
(2) Move down the feeder base and detach the bank feeder change cart.
(3) Turn off the power to the machine.
(4) Open the cover.
(5) Detach the transparent cover (origin and motor sides) and the tape
guide.
Notice
(a) Carefully detach or attach the tape guide to avoid the Y-axis
linear scale being scratched.
(b) When the cutter is not located at its origin, the tape guide
cannotbedetachedbecausetheuorinesheetiscaughtbythe
tape clamp.
Tape Guide
Transparent Cover
(Motor Side)
Transparent Cover
(Origin Side)
Fig. 4A48
0601-002
4.3 Replacement of Fluorine Sheet and Urethane Clamp
1-51
AKFEMT-ID

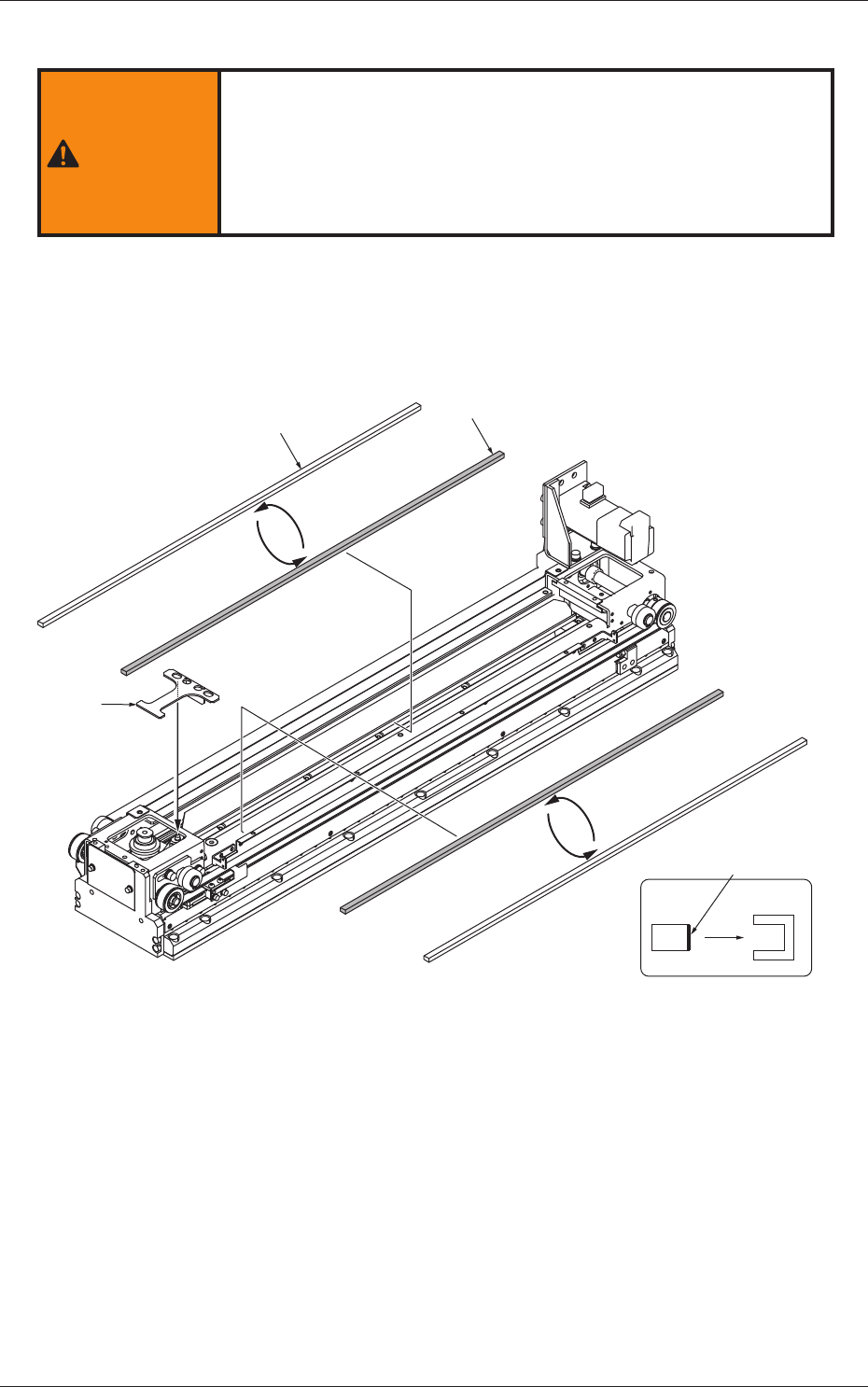

(6) AttachthecutunitxingJig.
WARNING
Pay close attention to the cutter blade during the maintenance
work.
·
Lack of attention will result in a hand injury, etc.
·
Besuretoattachthexingjigtothecutunitduringthe
maintenance work for safety purposes.
(7) Detach the urethane clamp from the tape clamp.
(8) Peel off the double-faced tape of a new urethane clamp and attach a
new urethane clamp to the tape clamp.
New Urethane Clamp
Old Urethane Clamp
Double-Faced Tape Side
View (Attachment Direction)
from Side Face
Cut Unit
Fixing Jig
Fig. 4A49
0601-002
4.3 Replacement of Fluorine Sheet and Urethane Clamp
1-52
AKFEMT-ID

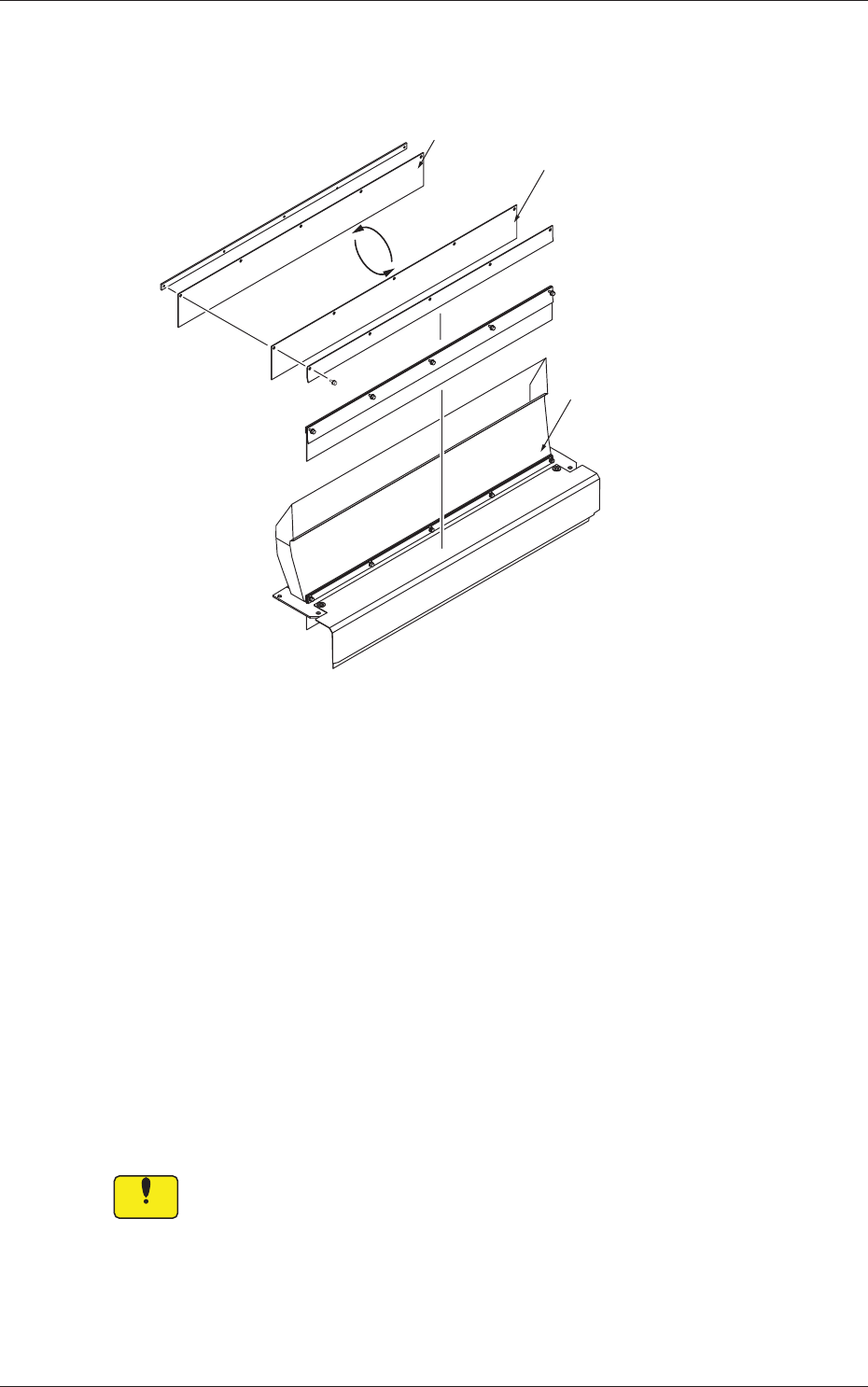

(9) Loosenthescrewsoftapeguideanddetachtheuorinesheetand
theplate.Afterthat,replacetheuorinesheetwithanewone.
Old Fluorine Sheet
New Fluorine Sheet
Tape Guide
Fig. 4A50
(10) Attachtheuorinesheetandtheplatetothetapeguide.
Atthistime,conrmthattheuorinesheetisputbetweenthetapeclamps.
(11) Detachthe
cutunitxingjig.
(12) Attach the tape guide and the transparent cover.
(13) Close the cover, power the machine, and perform a zeroing
operation.
(14)
Select the [Round trip] button in the "Mode" group box in the
"CUTTER ADJ" window to shuttle the cutters.
(Operation Sequence: [MAINT] on Main Menu
→
[UNIT ADJ.] on
Submenu Bar
→
"CUTTER ADJ" window)
Theunrequiredportionsoftheuorinesheetarecutandfalldownintothe
scrap box of the bank feeder change cart.
Notice
Besuretocuttheunrequiredportionsoftheuorinesheetwithoutthe
tape being threaded through the cutters. Otherwise, the tape cannot be
cut normally.
0601-002
4.3 Replacement of Fluorine Sheet and Urethane Clamp
