1-16 AKFEMT -ID 3. Maintenance Spots 3.1 Whole View Notice Any operations with a cover(s) being removed are included. After the maintenance work, be sure to attach the cover . 630 100 0633 00- 0 012- Feeder Cart Section …
1-15
AKFEMT-ID
2.5 Half-Yearly Maintenance
Grease Symbols
DE1 : DAPHNE EPONEX GREASE No. 1
KS64 : Silicon Grease KS64

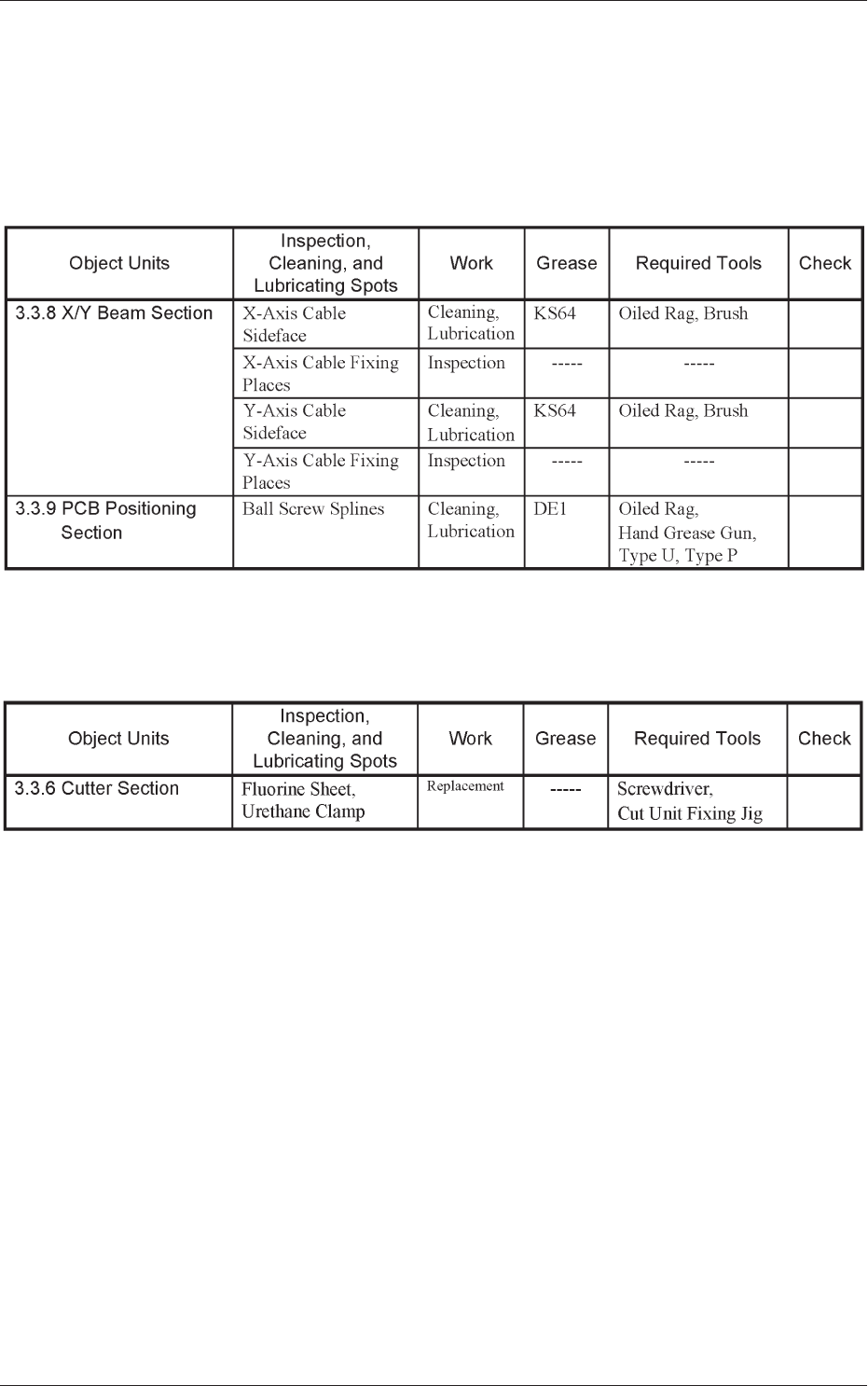

Table 4A12
2.6 Yearly Maintenance
Table 4A13
0607-003
2.5 Half-Yearly Maintenance
1-16
AKFEMT-ID
3. Maintenance Spots
3.1 Whole View
Notice
Any operations with a cover(s) being removed are included.
After the maintenance work, be sure to attach the cover.
630
100 0633
00-
0
012-
Feeder Cart Section
Control Box Section
Air Source
Vacuum System

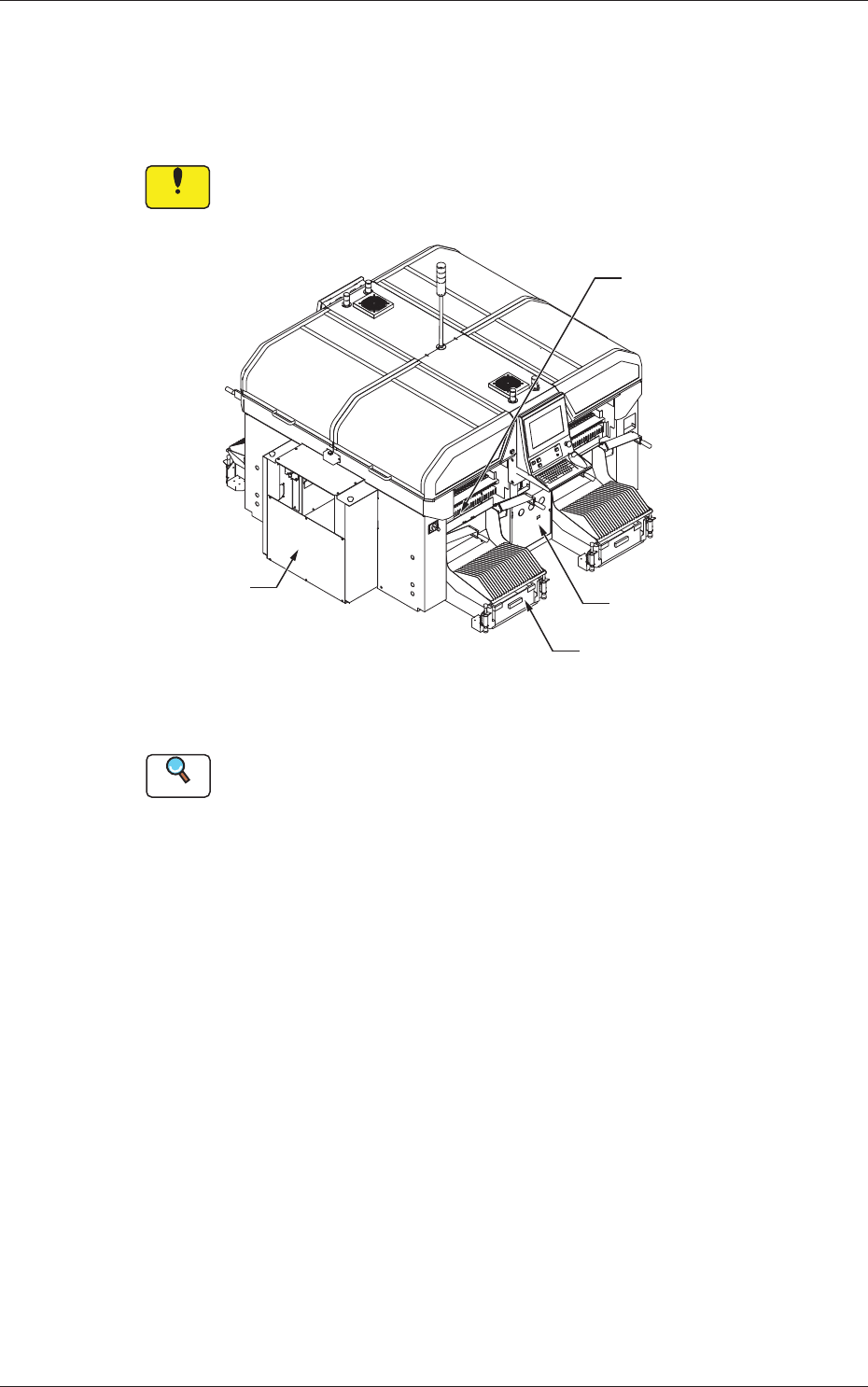

Fig. 4A6 Front View of Machine
Reference
(a) Refer to "3.3" and the subsequent items for the detailed information
on the spots of each section to be maintained and how to maintain
them.
(b) As for the options, refer to each instruction manual of the specially
specied devices for the maintenance.
0804-005
3. Maintenance Spots
1-17
AKFEMT-ID

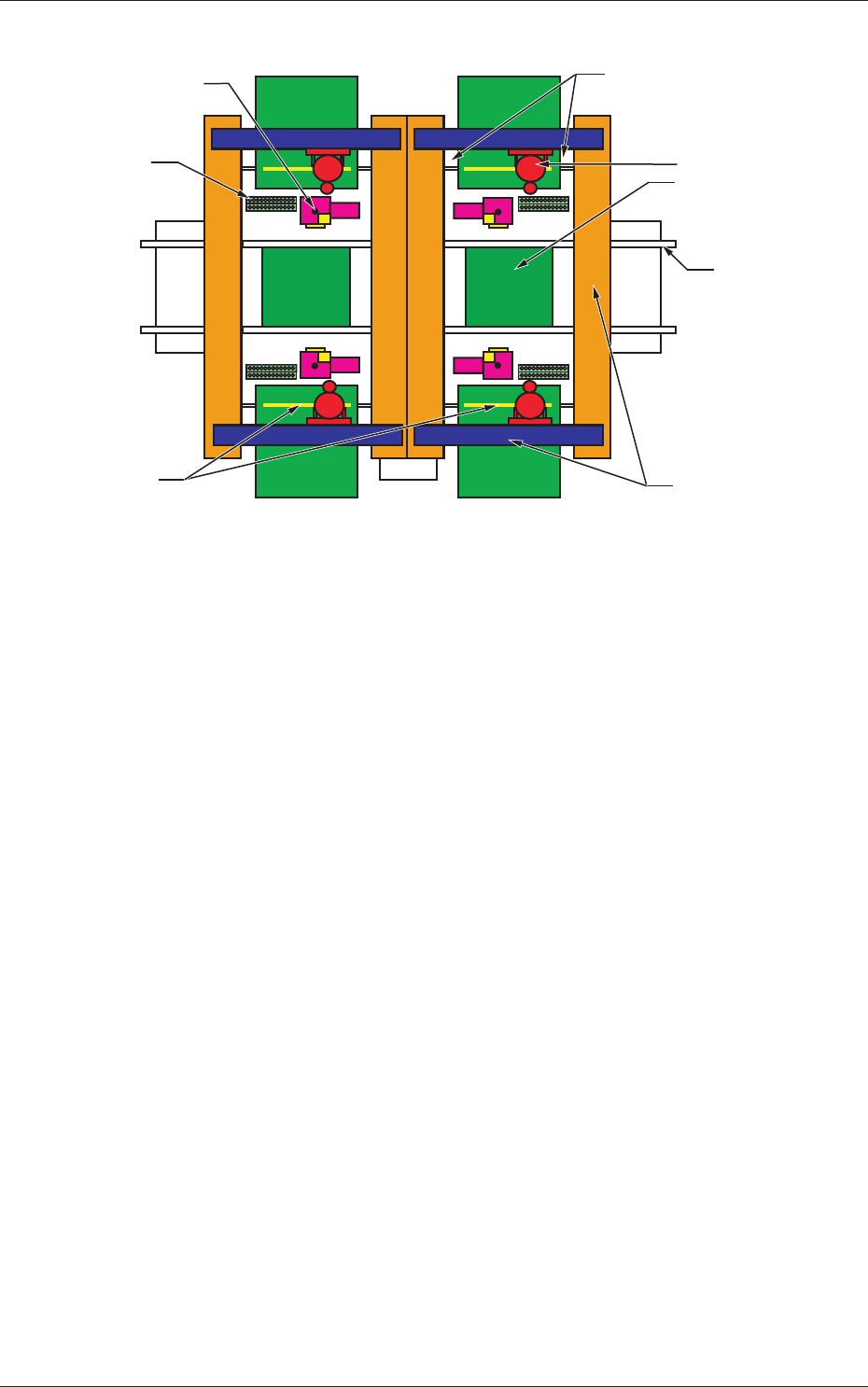

(Front Side of Machine)
(Rear Side of Machine)
Component Recognition
Camera Section
Conveyor Section
PCB Positioning
Section
Head Section
X/Y Beam Section
Nozzle Stocker
Section
Cutter Section
Feeder Base Driving Section
Fig. 4A8
0601-002
3.1 Whole View
