1-53

AKFEMT-ID

4.4 Procedure of Flat Ring Replacement

Time of Replacement

It is recommended that they should be replaced every 3 months (approx.).

Replacement Procedure

(1) Zero the cutter.

Reference

Refer to "4.4 "CUTTER ADJ" Window" in "Chapter 4 (Vol. 2)" for the

zeroing operation of the cutter.

(2) Move down the feeder base and detach the bank feeder change cart.

(3) Turn off the power to the machine.

(4) Open the cover.

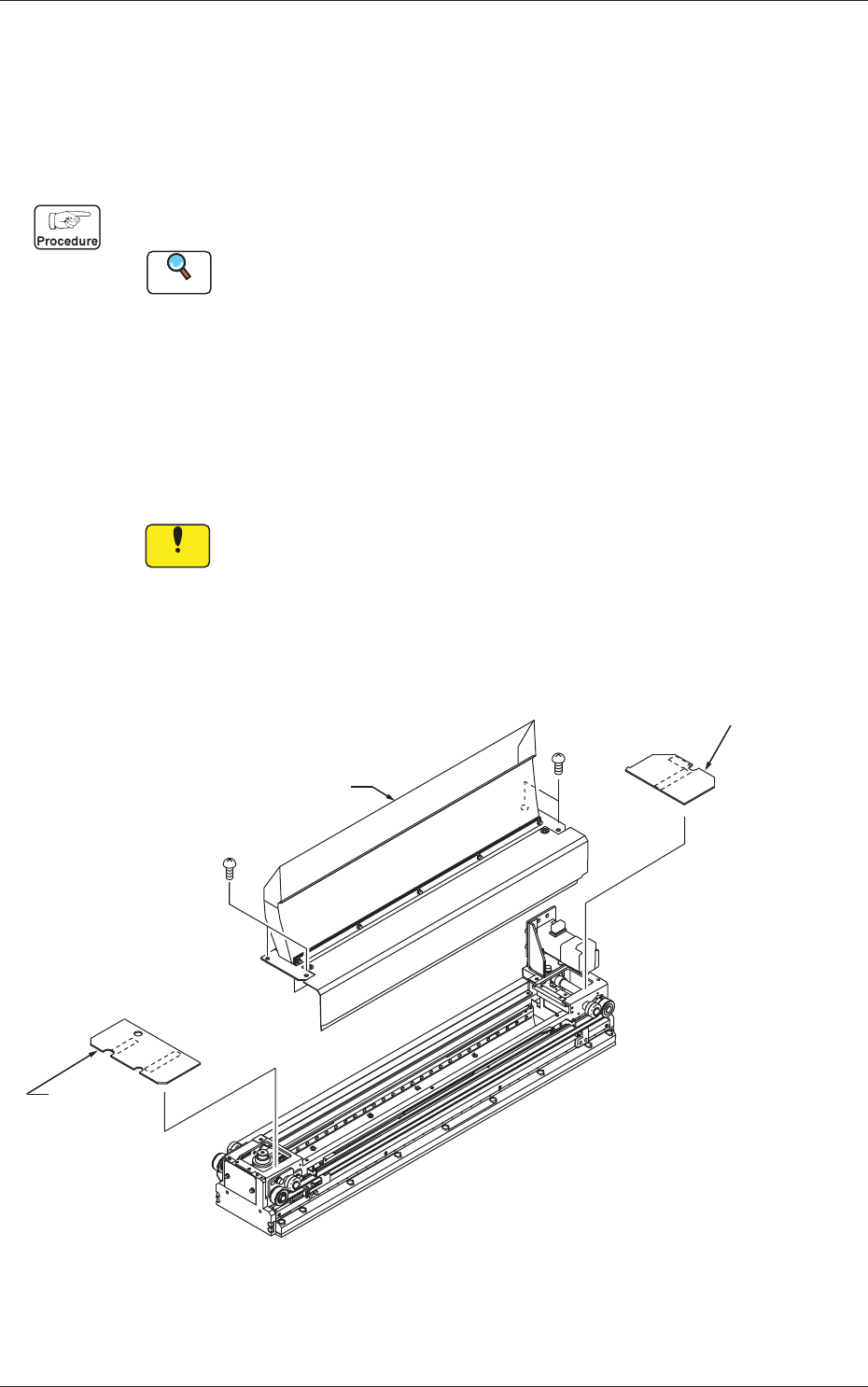

(5) Detach the transparent cover (origin and motor sides) and the tape

guide.

Notice

(a) Carefully detach or attach the tape guide to avoid the Y-axis

linear scale being scratched.

(b) When the cutter is not located at its origin, the tape guide

cannotbedetachedbecausetheuorinesheetiscaughtbythe

tape clamp.

Tape Guide

Transparent Cover

(Motor Side)

Transparent Cover

(Origin Side)

Fig. 4A51

0601-002

4.4 Procedure of Flat Ring Replacement

1-54

AKFEMT-ID

 (6) Usetheinnerholesofthecutunitxingjigwiththetapeclampbeing

closed and attach the jig with the bent portion being directed upward.

Fig. 4A52

WARNING

Pay close attention to the cutter blade during the maintenance

work.

Lack of attention will result in a hand injury, etc.

Besuretoattachthexingjigtothecutunitduringthe

maintenance work for safety purposes.

 (7) Cuttheusedatringwithacutteronmarketanddetachit.

 (8) Attachtheatringtotheatringreplacementjig.

Fig. 4A53

0601-002

4.4 Procedure of Flat Ring Replacement

1-55

AKFEMT-ID

 (9) Puttheatringreplacementjigontherollerontheoscillatingside

(outside of the machine).

  Pushonlytheatringdownwardbyhandandinsertitintothegroove

of the roller.

Flat Ring

Fig. 4A54

 (10) Payattentiontothecutterbladeanddetachtheatringreplacement

jig.

(11) Attach the tape guide and the transparent cover.
