1-43 AKFEMT -ID 3.3.12 Control Box Section Fans (2 places) Every 3 Months Cleaning Required T ime: 4 minutes (1) Detach four setscrews fastening the dust filter . (2) Suck dirt and d ust wi th a v acuum cleane r . (3) At…
1-42
AKFEMT-ID
3.3.11 Nozzle Stocker Section
Nozzle Stocker Sliding Area
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
(1) Wipe off old grease with an oiled rag.
(2) Apply new grease with a syringe.
Use No. 19 (brown) nozzle.
Note
No. 19
Nozzle Storage Section
Every Month Cleaning
Suck dirt and dust with a vacuum cleaner.
Fig. 4A33
0804-004
3.3 Inspection, Cleaning, and Lubrication Spots
1-43
AKFEMT-ID

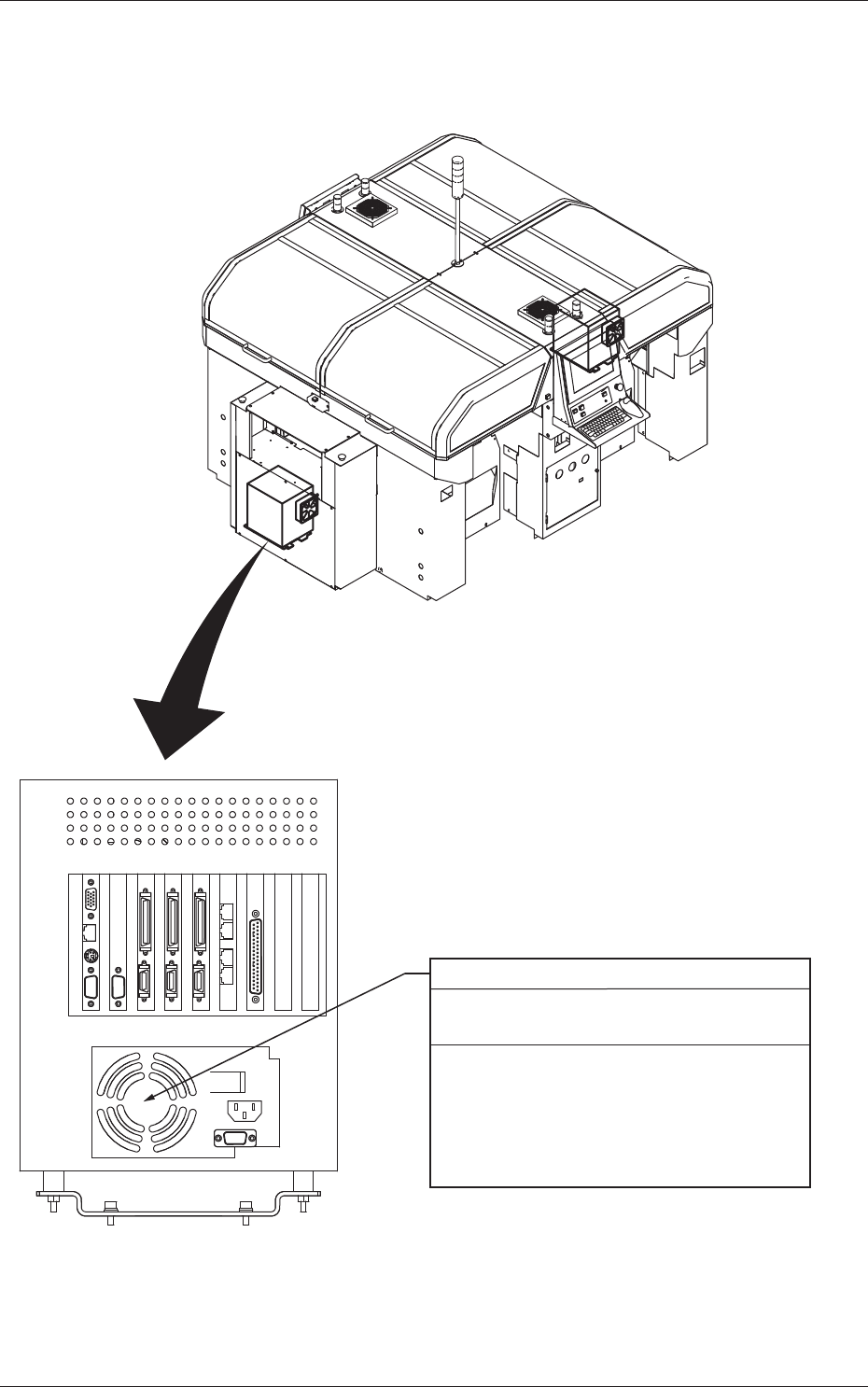

3.3.12 Control Box Section
Fans (2 places)
Every 3 Months Cleaning
Required Time: 4 minutes
(1) Detach four setscrews fastening the
dust filter.
(2) Suck dirt and dust with a vacuum cleaner.
(3) Attach the dust filter and secure it with
the setscrews.
Fig. 4A34
0804-004
3.3 Inspection, Cleaning, and Lubrication Spots
1-44
AKFEMT-ID

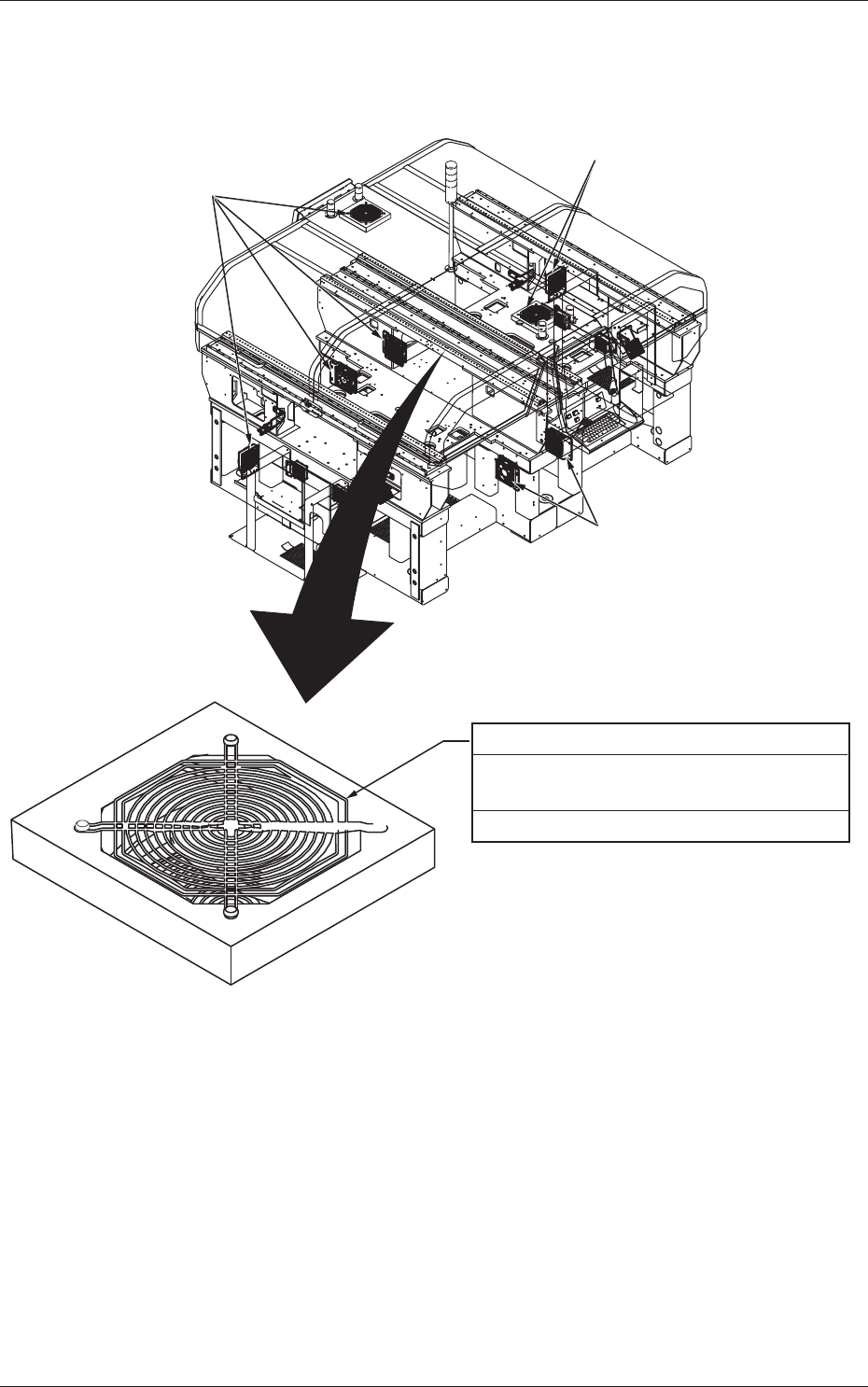

3.3.13 Fans
Every 3 Months Cleaning
Required Time: 10 minutes
Suck dirt and dust with a vacuum cleaner.
Fans
Fans
Fans
Fan (10 places)
Fig. 4A35
0804-004
3.3 Inspection, Cleaning, and Lubrication Spots
