1.2.2 Preparation for Lubrication
Prepare for the specied types of grease and lubrication tools.
Specied Greases
·
DAPHNE EPONEX GREASE No. 1 (IDEMITSU KOSAN)
·
MOLYNOC GREASE AP1 (NIPPON OIL CORPORATION)
·
Silicon Grease KS64 (Shinetsu Kagaku)
Note
Before lubrication, wipe off old grease. Otherwise, the effect of grease and
oil will decrease.
Same Types of Lubricants
·
Grease Types equivalent to DAPHNE EPONEX GREASE No. 1
(IDEMITSU KOSAN)
Table 4A1
·
Grease Types equivalent to MOLYNOC GREASE AP1 (NIPPON OIL
CORPORATION)
Table 4A2
·
Grease Types equivalent to Silicon Grease KS64 (Shinetsu Kagaku)
Table 4A3
0601-002
1.2 Preparation for Maintenance
AKFEMT-ID
0909-004
1.2 Preparation for Maintenance
Specied lubrication tools
(1) Brush
Use a brush whose bristles do not come off if possible.
Notice
Do not use a brush for ball screws and splines.
(2) Vinyl Gloves
Use a pair of vinyl gloves to apply grease or oil by hand.
(3) Hand Grease Gun
Standard : KH-120
Part No. : 228A0022 (630 062 2577)
Maker : Yamada Corporation
Note
Use this gun only for DAPHNE EPONEX GREASE No. 1.
Reference
Refer to the attached instruction manuals for the hand grease gun for the
usage.

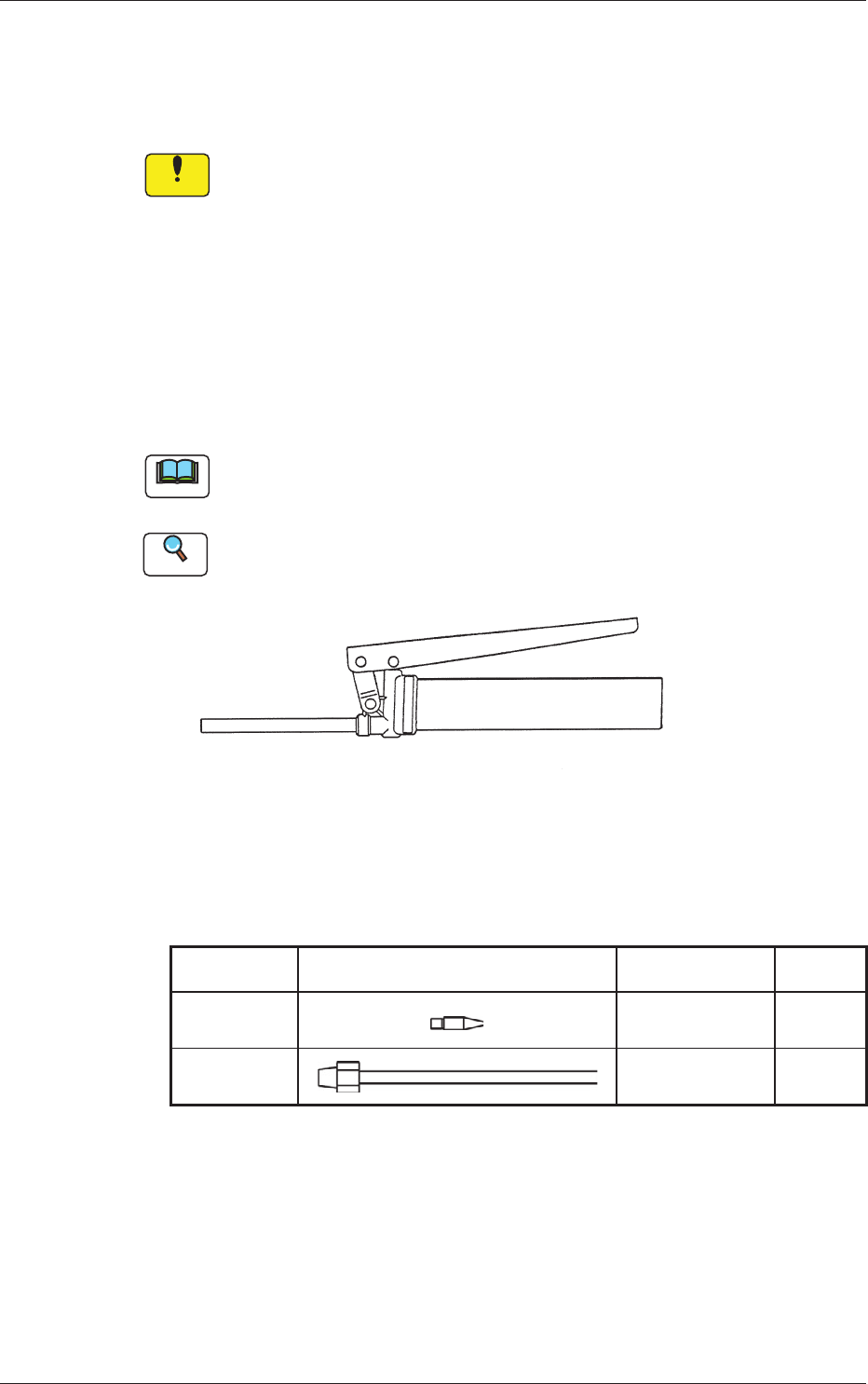

Fig. 4A4
● Attachment for Hand Grease Gun KH-120
Table 4A5
Standard Shape Part No. Remarks
Type P
216M0441
(630 061 7474)
THK
Type U
216M0438
(630 061 7443)
THK
1-6
AKFEMT-ID
0909-003
1.2 Preparation for Maintenance
1-7
(4) Syringe
Maker: TERUMO
This gun can be used for two types of greases.
Use the syringes and the nozzle properly.
Two Types of Greases : DAPHNE EPONEX GREASE No. 1
MOLYNOC GREASE
AP1
Fig.4A5
Table 4A6
228A0171
(630 133 3793)
216M0451
(630 062 2607)
216M0453
(630 062 2621)
