Fuji Software Upgrade Report (Appendix) 02022A3 9/21
http://www.fuji.co.jp/
Copyright © 2002 Fuji Machine Manufacturing Co., Ltd. All Rights Reserved.
5. Displaying the Measurement Results
Press [Maintenance] - [PAM Measure] - [100%/80%] - [OK] - [PAM Measure] - [Result] to display the
following screen. The results for all the measurements display (Avg., 3
σ, 6σ, Max., Min., Cp, Cpk).
Measurement results screen.
5.1 Change Nozzle
The nozzle display can be changed.
5.2 Edit USL/LSL
The data (USL, LSL) can be set for the calculation of Cp and Cpk.
5.3 Show Deviation
The measurement results for each sequence are displayed.
Fuji Software Upgrade Report (Appendix) 02022A3 10/21
http://www.fuji.co.jp/
Copyright © 2002 Fuji Machine Manufacturing Co., Ltd. All Rights Reserved.
6. Editing USL and LSL
Press [Maintenance] - [PAM Measure] - [100%/80%] - [OK] - [PAM Measure] - [Result] - [Edit
USL/LSL] to display the following screen.
Editing screen for USL/LSL.
6.1 Set
Press [Set] to the left of the item to be edited, and input the setting using the numerical keypad.
6.2 Cp and Cpk Calculation Functions
The functions to calculate Cp and Cpk are as follows.
Ave: Average amount of misalignment
σ: Standard deviation
USL: Upper limit
LSL: Lower limit
Cp
=
6 sigma
USL - LSL
Cpk
=
USL + LSL
2
-Ave
USL - LSL
2
Cp 1 -
Fuji Software Upgrade Report (Appendix) 02022A3 11/21
http://www.fuji.co.jp/
Copyright © 2002 Fuji Machine Manufacturing Co., Ltd. All Rights Reserved.
7. Displaying the Distribution
Press [Maintenance] - [PAM Measure] - [100%/80%] - [OK] - [PAM Measure] - [Result] - [Indicate
Distribution] to display the following screen. A measurement results diagram for each nozzle can be
displayed.

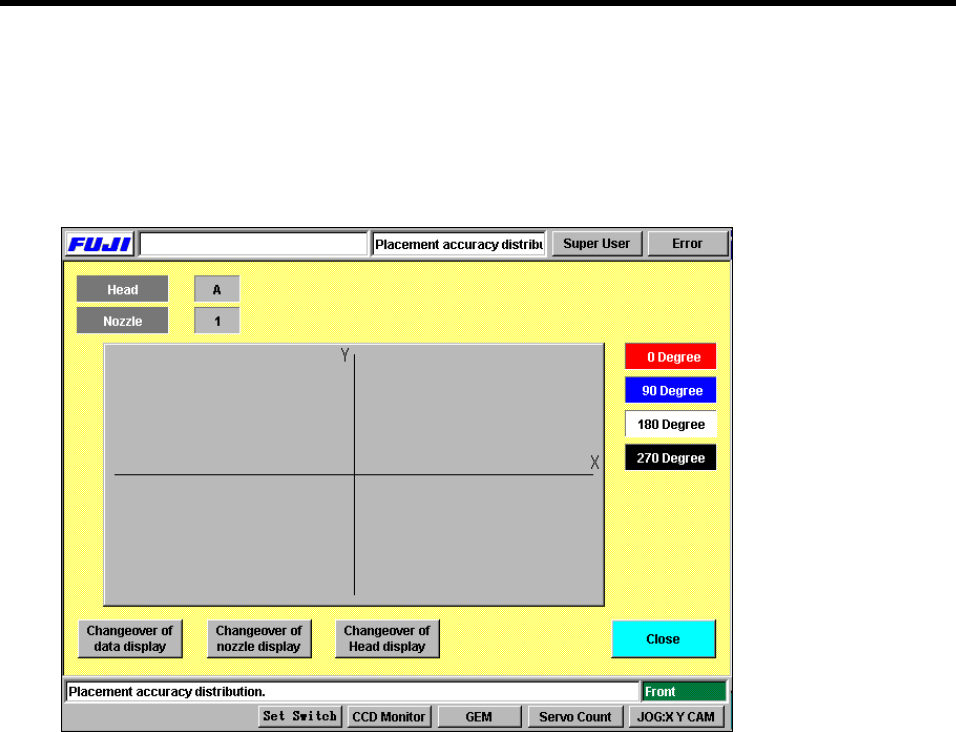

Placement distribution screen.
7.1 Changeover of Data Display
The display can be switched to the standard distribution display.
7.2 Changeover of Nozzle Display
The nozzle display can be switched.
7.3 Changeover of Head Display
The placing head display can be switched.
