Fuji Software Upgrade Report (Appendix) 02022A3 15/21
http://www.fuji.co.jp/
Copyright © 2002 Fuji Machine Manufacturing Co., Ltd. All Rights Reserved.
When PAM measurement is performed and the results are batch converted at a cam speed of
80%, they are fed back to the calibration data items only for the cam speed of 80%, not to
those for 100% (Similarly, when batch converted at a cam speed of 100%, the results are fed
back only to the calibration items for 100%).
Fuji Software Upgrade Report (Appendix) 02022A3 16/21
http://www.fuji.co.jp/
Copyright © 2002 Fuji Machine Manufacturing Co., Ltd. All Rights Reserved.
10.Editing the Offset Tolerances
Press [Maintenance] → [PAM Measure] → [100%/80%] → [OK] → [PAM Measure] → [Setting offset
tolerance] to display the following screen. The offset tolerances can be set at this screen.

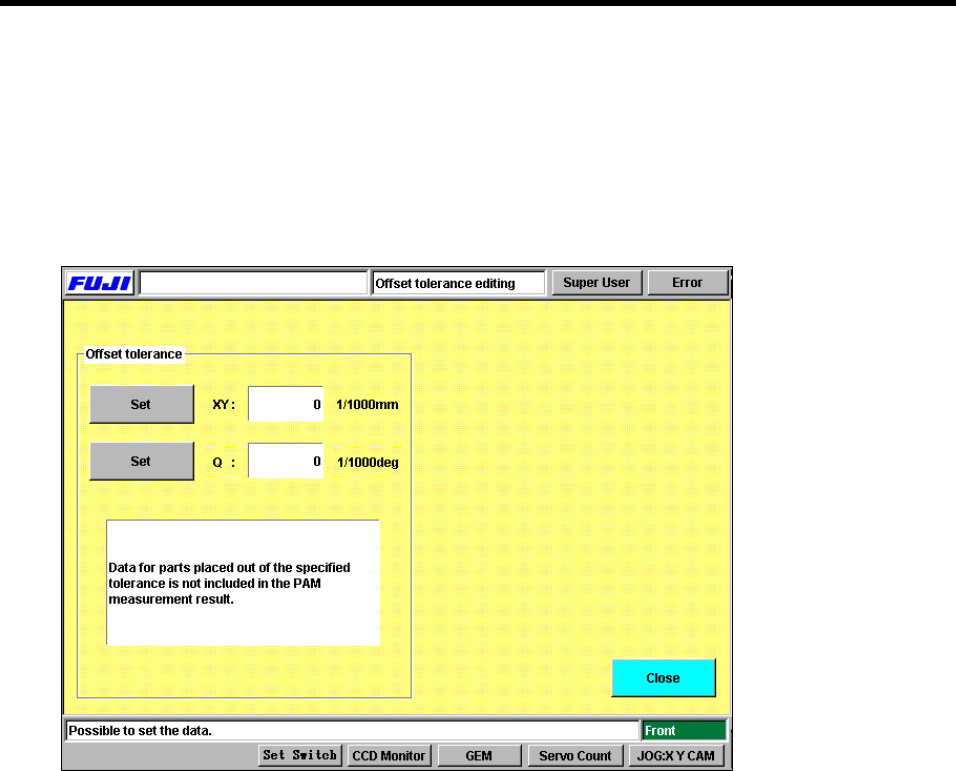

Offset tolerance settings screen.
10.1Set
Press [Set] to the left of the item to be edited, and input the setting using the numerical keypad.
10.2Offset Tolerances
PAM parts which are found to be outside these tolerances when they are inspected during the
PAM placement measurement are treated as error data.
Parts which fall within the range indicated by the following function are regarded as valid.
Parts outside this range are treated as errors.
- Offset tolerance < Inspection result < + Offset tolerance
Fuji Software Upgrade Report (Appendix) 02022A3 17/21
http://www.fuji.co.jp/
Copyright © 2002 Fuji Machine Manufacturing Co., Ltd. All Rights Reserved.
11.Production Program Settings
In order to use the [PAM Equip] and [PAM Measure] commands, the nozzle name (GNANAM) used
in the production program must be set at the part data special nozzle name (PENNZN). By making
this setting, the parts are only placed using the specified nozzle.
“UNIT”,”NOZZLE”
"BLOCK","CP732+"
"GNANN","GNANAM"
1,"R08-007"
2,"R08-010"
3,
"R08-013"
"R08-013" "R08-013"
"R08-013" ç
çç
ç
This nozzle must be set in part data.
4,"R16-018"
5,"R16-025"
6,"R08-004"
"UNIT","PARTS"
Omitted
"ELEMENT","VISION-"
"PTPVICVT",10
"PENVILIT",0
"PTPVILCA",0
"PTPVILB",0
"AUTOHEIGHTCHK",1
"PARTHEIGHTTOL",0
"PTPVIPL",0
"ELEMENT","ENVDT"
"LEVEL1","CP732ENVDT-"
"PENNMI",1.3
"PENNMA",1.3
"PENNZN",
"R08-013"
"R08-013" "R08-013"
"R08-013" ç
çç
ç
For PAM placement and measurement.
"PENBLM",9
Omitted
