Installations- und Betriebsanl eitung Pinolenreinigungsstation Ausgabe 10/2007 16 1 1
Installations- und Betriebsanleitung Pinolenreinigungsstation
Ausgabe 10/2007
15

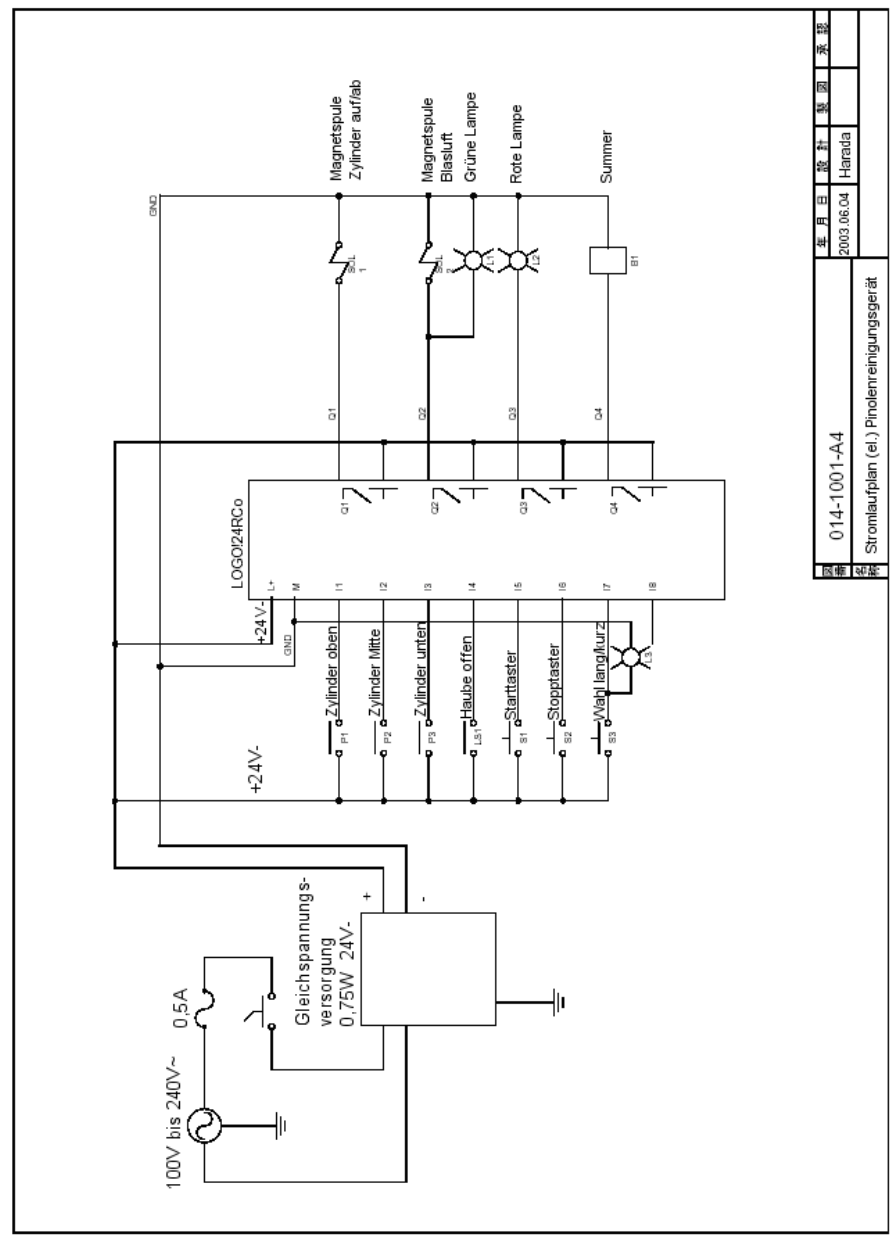

1.13 Elektrischer Stromlaufplan
Installations- und Betriebsanleitung Pinolenreinigungsstation
Ausgabe 10/2007
16
1
1
Installation and User manual Sleeve cleaning station
10/2007 Edition
17
2 Installation and User Manual
Sleeve Cleaning Station
2.1 Product description
The proper preventive maintenance of sleeves ensures the smooth operation of SIPLACE place-
ment equipment with respect to pick up reliability and component placement. 2
Up to now airborne dirt and dust which have accumulated over time within the sleeve are cleaned
manually with various drill bits. However, this manual cleaning procedure consumes a significant
amount of the maintenance staff’s time. 2
The SIPLACE Sleeve Cleaning Station is designed to perform the cleaning procedure in a most
systematic, easy and efficient way: 2
– simple operation, no special knowledge necessary
– reduced time of sleeve cleaning
– uniformed quality of cleaning.
2.2 Scope of delivery
2.3 Necessary tools
Set of Allan wrenches 2
1
Main Unit
1
Two pins AC input power cord (1 metre)
1
User manual (Item no.: 00194653-xx)
