Installation and User manual Sleeve cleaning station 10/2007 Edition 22 2 2 2 1 Power connecto r 2 Air hose 3 Air regulator 4 Nozzle jet 5 Safety switch for upper cover a s d f g
Installation and User manual Sleeve cleaning station
10/2007 Edition
21

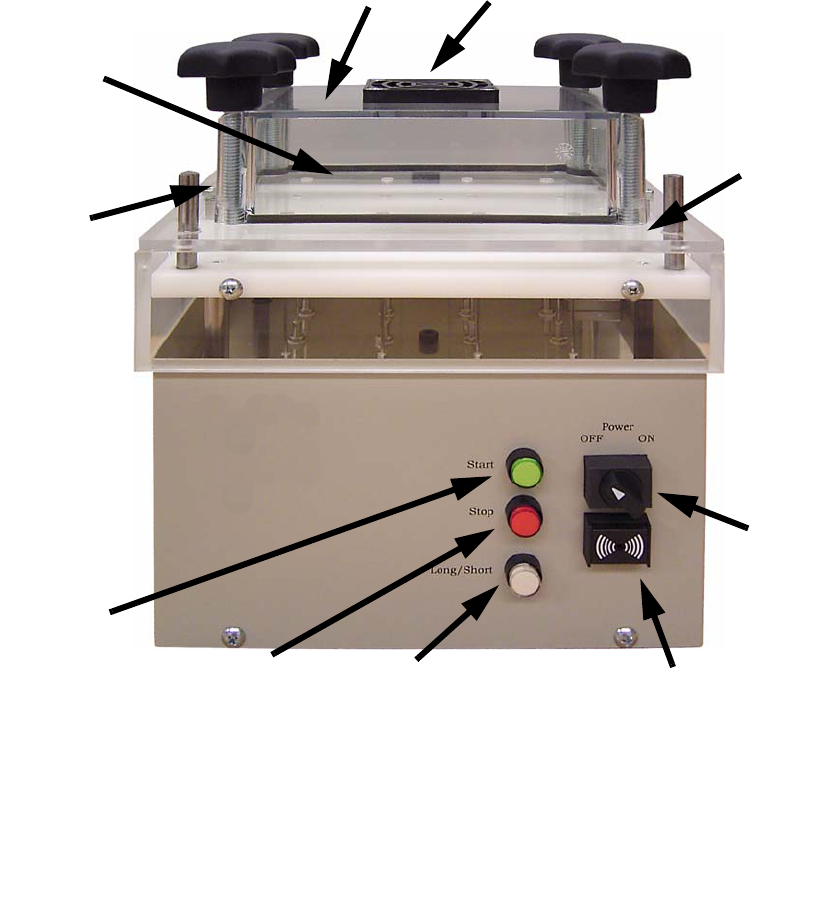

2.7 System components and configuration
2
2
1 Power switch 6 Air filter
2 Start button 7 Sleeve set plate
3 Stop button 8 Upper cover set guide
4 Mode selector (long / short ditch) 9 Upper cover fixing magnet
5 Upper cover 10 Buzzer
a
s
d
f
g
h
j
k
l
;
Installation and User manual Sleeve cleaning station
10/2007 Edition
22
2
2
2

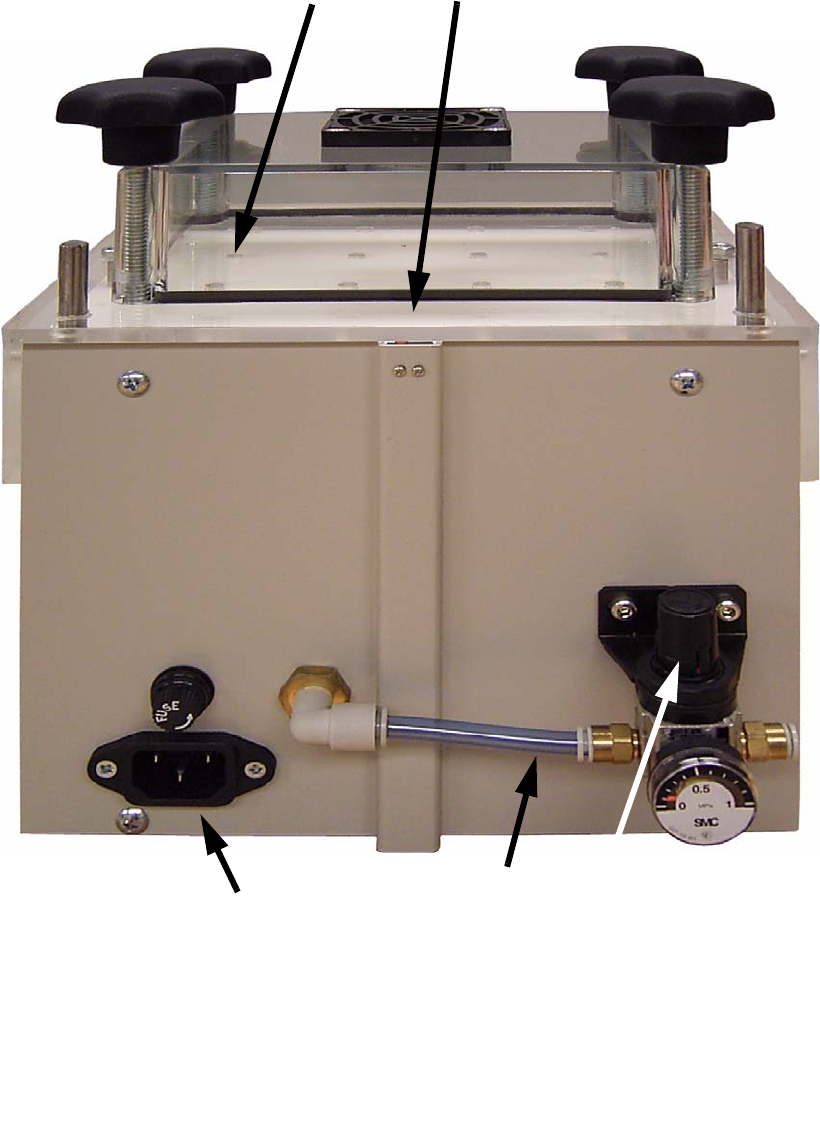

1 Power connector
2 Air hose
3 Air regulator
4 Nozzle jet
5 Safety switch for upper cover
a
s
d
f
g
Installation and User manual Sleeve cleaning station
10/2007 Edition
23
2.8 Installation

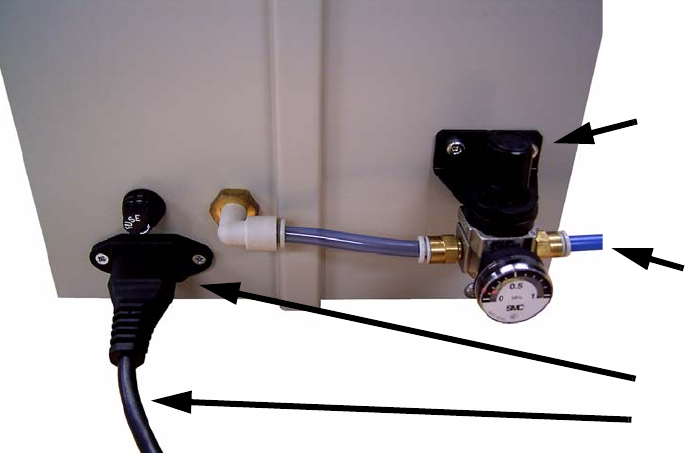

: Connect the power cable to the connector at the back of the unit and to the power outlet (see
photo below).
: Connect the air hose to the entrance of regulator and to the air supply (see photo below).
: Check the air regulator an adjust it to 5 bar (0.5 Mpa).
: Ensure a clean and dry supply of compressed air, use filter if necessary!
2
2
2
Power cable
Air hose
Power connector
Air regulator
