2 Safety 2.3 Safety instructions for transporting the machine Instruction Guide ASM ProcessLens Dual-lane 06/2018 29 2.3 Safety instructions for transporting the machine Use a forklift truck with the following specificat…
2 Safety
2.2 Warning labels
28 Instruction Guide ASM ProcessLens Dual-lane 06/2018
2.2.3.13 Warning label PSUC - Power Supply Unit Cover
Fig.22: Warning label for power supply unit cover [03113903-xx] (quantity per machine: 1)
See fig. "Warning labels - Power supply unit and voltage distribution board" [}23]
2.2.3.14 Warning label – Laser radiation
Fig.23: W laser class 2 [03134118-xx]
LASER RADIATION
Laser class 2
Acc. to IEC 60825-1:2014
► Do not look into beam!
See fig. "Warning labels front view" [}19]
2.2.4 Other Labels
2.2.4.1 Label - External grounding point
External grounding point
Please observe chapter 2.8 ESD guidelines.
Label - General warning/attention [00359574-xx] (quantity per machine: 1)
See fig. "Warning labels front view" [}19]
2.2.4.2 Label – Ground
Ground
All ground termination points must be connec-
ted.
Label - Ground on various locations
2 Safety
2.3 Safety instructions for transporting the machine
Instruction Guide ASM ProcessLens Dual-lane 06/2018 29
2.3 Safety instructions for transporting the machine
Use a forklift truck with the following specification to carry the machine:
Fork length: min. 1800 mm
Carrying power: min. 6000 kg
Clear width between forks: min. 350 mm
WARNING
Risk of tipping
If the required specification cannot be applied to the forklift, there is a risk that the forklift
will tip over when carrying the machine.
Transportation of the machine is described in section 4.1 "Transport and delivery configura-
tion" [}55].
2 Safety
2.4 Safety instructions for operating the machine
30 Instruction Guide ASM ProcessLens Dual-lane 06/2018
2.4 Safety instructions for operating the machine
2.4.1 Safety instructions for closing the protective covers
CAUTION
Risk of crushing hands, if the protective covers are not closed correctly
To avoid risk of injury when closing the protective covers on the machine, the operator must
instruct the personnel
► Follow the instructions below when handling the protective covers.

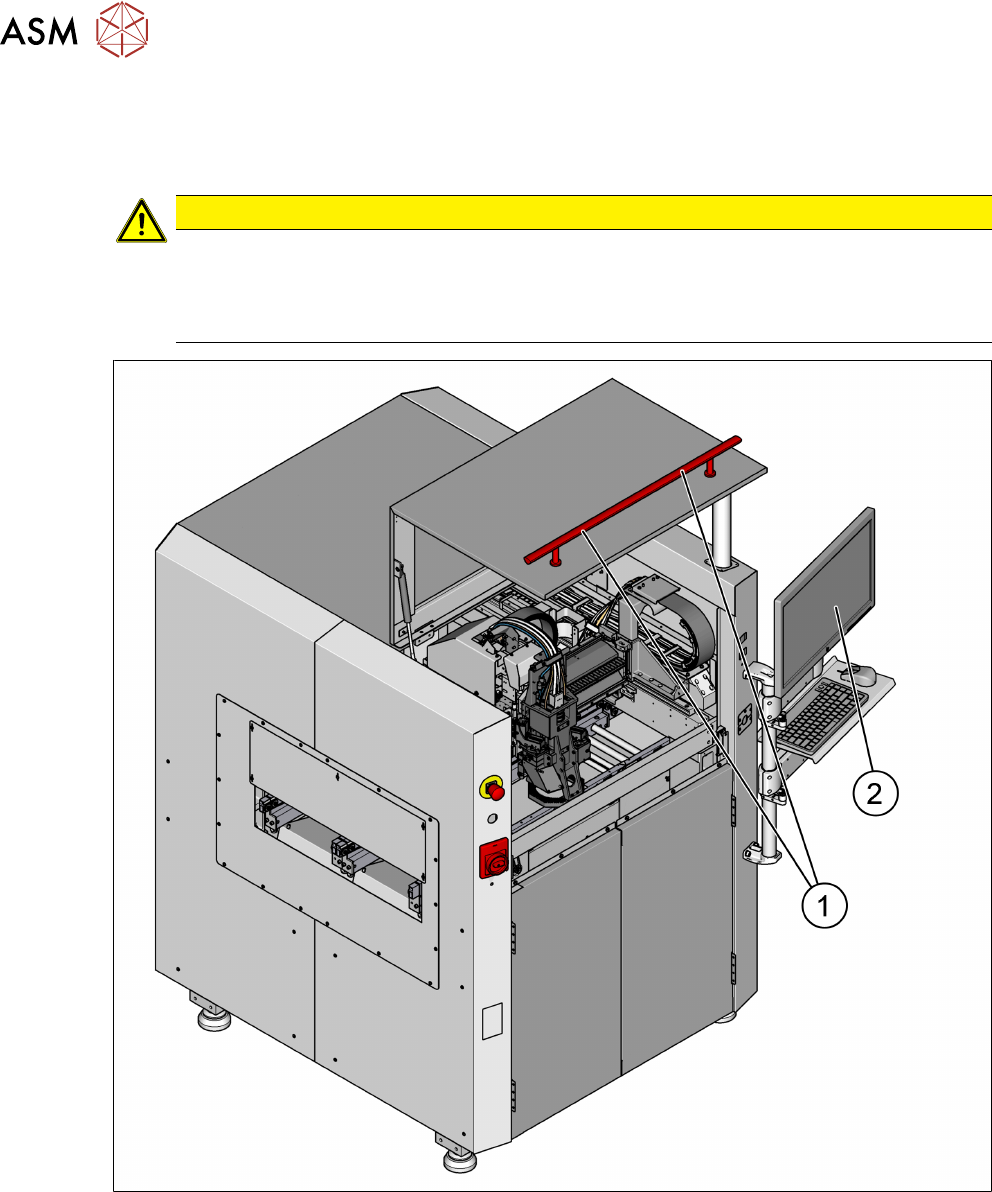

Fig.24: Safety instructions for closing the protective cover
1 Recessed grip 2 Monitor
► To open or close the protective cover, always take hold of these by the recessed grip (1).
► When closing, do not reach into the gap between the protective cover and the machine panel.
► When closing the protective cover, make sure that the area in which it is swiveled is free of
obstruction and that no other people are at risk of injury.
► Pay attention to the monitor (2) and make sure it is not in the way of the closing door which
could result in irreversible damages.
