3 Machine description
3.2 Technical data
Instruction Guide ASM ProcessLens Dual-lane 06/2018 53
3.2.5 Conveyor specifications
Flexible dual conveyor Dual conveyor in "single
conveyor" (optional) mode
Minimum PCB size L x W 50 mm x 45 mm 50 mm x 45 mm
Maximum PCB size L x W 375 mm x 260 mm 375 mm x 460 mm
PCB thickness range 0.3 mm to 4.5 mm
Maximum PCB weight Max. 3.0 kg
Underside PCB clearance 25 mm
PCB conveyor height
●
Option
●
Standard
●
Option SMEMA
900 mm
930 mm
950 mm
Stationary conveyor side Outside
Right / Right
Left / Left
3.2.6 Inspection capabilities
Pixel size (camera resolution) 15 μm x 15 μm
Inspection speed Up to 30 cm
2
/s
Height resolution 0.37 μm
Height accuracy on calibration target <= 2 μm
X/Y gantry accuracy < ±25 µm at 6 σ
3.2.7 Solder paste inspection capabilities
Measurement Shadow-free
Paste measurement functions Volume, area, height, X-and Y-offset, shape,
bridging, coplanarity
Maximum paste height 1000 μm
Minimum paste size 90 μm x 130 μm
Minimum paste pitch 75 μm
Height repeatability on solder paste <= 1 μm at ± 3 σ
Volume repeatability on solder paste <= 3 % at ± 3 σ
Area repeatability on solder paste <= 3 % at ± 3 σ
Gage Repeatability and Reproducibility (GRR) < 10 %
3.2.8 Program generation specifications
Program generation < 10 min.
Offline programming available
Supported Gerber formats RS-274X
3 Machine description
3.2 Technical data
54 Instruction Guide ASM ProcessLens Dual-lane 06/2018
4 Setting up and commissioning
4.1 Transport and delivery configuration
Instruction Guide ASM ProcessLens Dual-lane 06/2018 55
4 Setting up and commissioning
4.1 Transport and delivery configuration
4.1.1 Shipping packaging
The ASM ProcessLens Dual-lane machine will be shipped on a wooden pallet, packaged in plastic
film, or in a wooden crate.
4.1.1.1 Transporting environment condition
Temperature max. 70°C
Humility 60%
4.1.1.2 Shipping packaging dimensions
The dimensions of the pallets and wooden crates are listed in the following table:
Machine (L x W x H)
Wooden pallet 1850mm x 1500mm
Wooden crate 1850mm x 1500mm x 1850mm

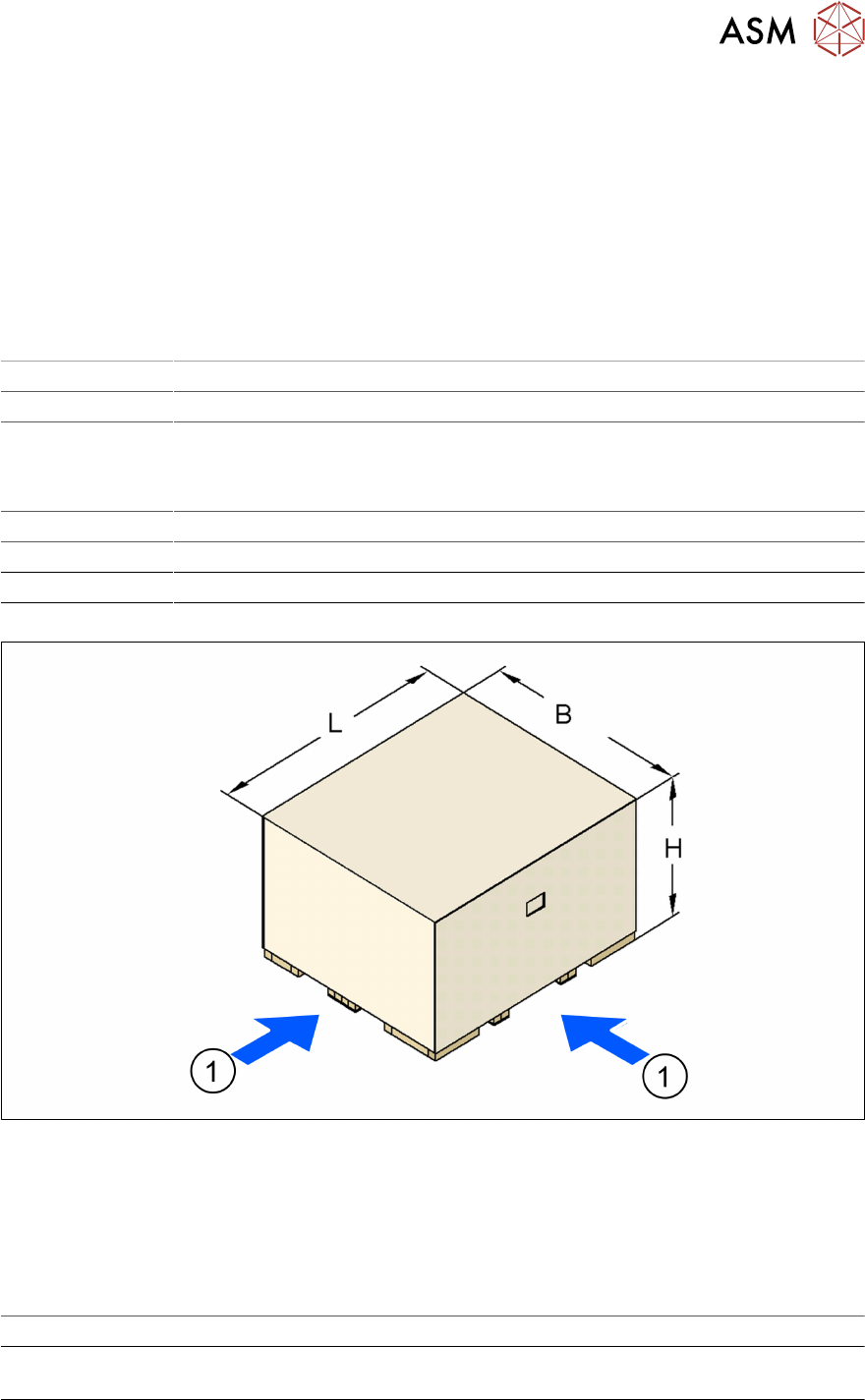

Fig.32: Transport crate - dimensions in millimeters
1 Forklift attachment points
4.1.1.3 Weight of machine when ready for dispatch
The following table contains the weights of the machines prepared for dispatch, including pack-
aging.
Machine Dispatch on wooden pallet Dispatch on wooden crate
ASM ProcessLens Dual-
lane
840 kg 940 kg
