1 Applicable models and software versions
Applicable items and software version are as below.
Fig 1. Applicable models and software version
Item Name Software Version Remarks
YS12 series mounters
YG12 series mounters
VGOS V3.41STD R1.000 or later
2 Outline
This function is the function to mount long boards in two steps at the main stopper position
(first half mount) and the exit stopper position (second half mount) by the machine equipped
with the "Std. LED (NLED)" conveyor or the "Extension LED (ELED)" conveyor.
3 Restrictions
This function has the following restrictions.
3.1 Restrictions when this function is effective
1. This function requires the "Std. LED (NLED)" conveyor or the "Extension LED (ELED)"
conveyor.
2. Only one board can exist on the conveyor during board transfer when the machine
equipped with the “LED package specs”.
3. The mountable maximum board length is as follows.
4. This function does not support “fiducial all recognition” function. (Data check error
occurs)
5. This function does not support “stride board buffering” function.
6. This function does not support “Op010: 3A Process Control” function.
Conveyor type Maximum board length
Standard conveyor 510mm
Std. LED (NLED), (When using this function) 750mm
Extension LED (ELED)", (When using this function) 1200mm
3.2 Restrictions on the board data for long board partition
mount
1. Values of X coordinate and R coordinate of block offset have to be “0.000”. (Ref. 4.2.3)
2. One set of board fiducial is required for the position that can be recognized at “first half
mount”, and another one set of board fiducial is required for the position that can be
recognized at “second half mount”. (Ref. 4.2.3.1)
3. Block fiducial is not able to use. (Ref. 4.2.3.2)
4. The board bad mark and the block bad mark have to be recognizable at “first half mount”.
(Ref. 4.2.5)
5. Visual editor of P-Tool does not support board fiducial for “second half mount”. (Ref.
4.2.3.1)
6. This function does not support sequence running mode.
7. When using 2D code scan function (special function), all 2D code (board, block,
distributed) has to be recognizable at “first half mount”. (Ref. 4.2.6)
3.3 Restrictions when machine produces board data for long
board partition mount
1. Only “Line” or “Manual” can be used for “Conveyor Spec”.
2. “Precede Pick” is executed only before the starting of “first half mount”. It is not executed
before the starting of “second half mount”.
3. Cycle times and error counts of history are outputted total of “first half mount” and
“second half mount”. Each of “first half mount” and “second half mount” is not outputted.
(Ref. 4.5)
4 Detail
4.1 Movement of machine
4.1.1 Transfer method and mount method
In this function, the partition mount is executed in the following procedures.
(1) A board is transferred to the main stopper; the board is fixed; and parts of first half area
are mounted.
(2) After parts of first half area are mounted, the board is released and transferred to the
exit stopper.
(3) After the board reaches the exit stopper, the board is fixed, and parts of second half
area are mounted.
(4) After parts of second half area are mounted, the board is released and transferred to
the lower machine.
(5) After the board is transferred to the lower machine, a next board is transferred from
entrance.

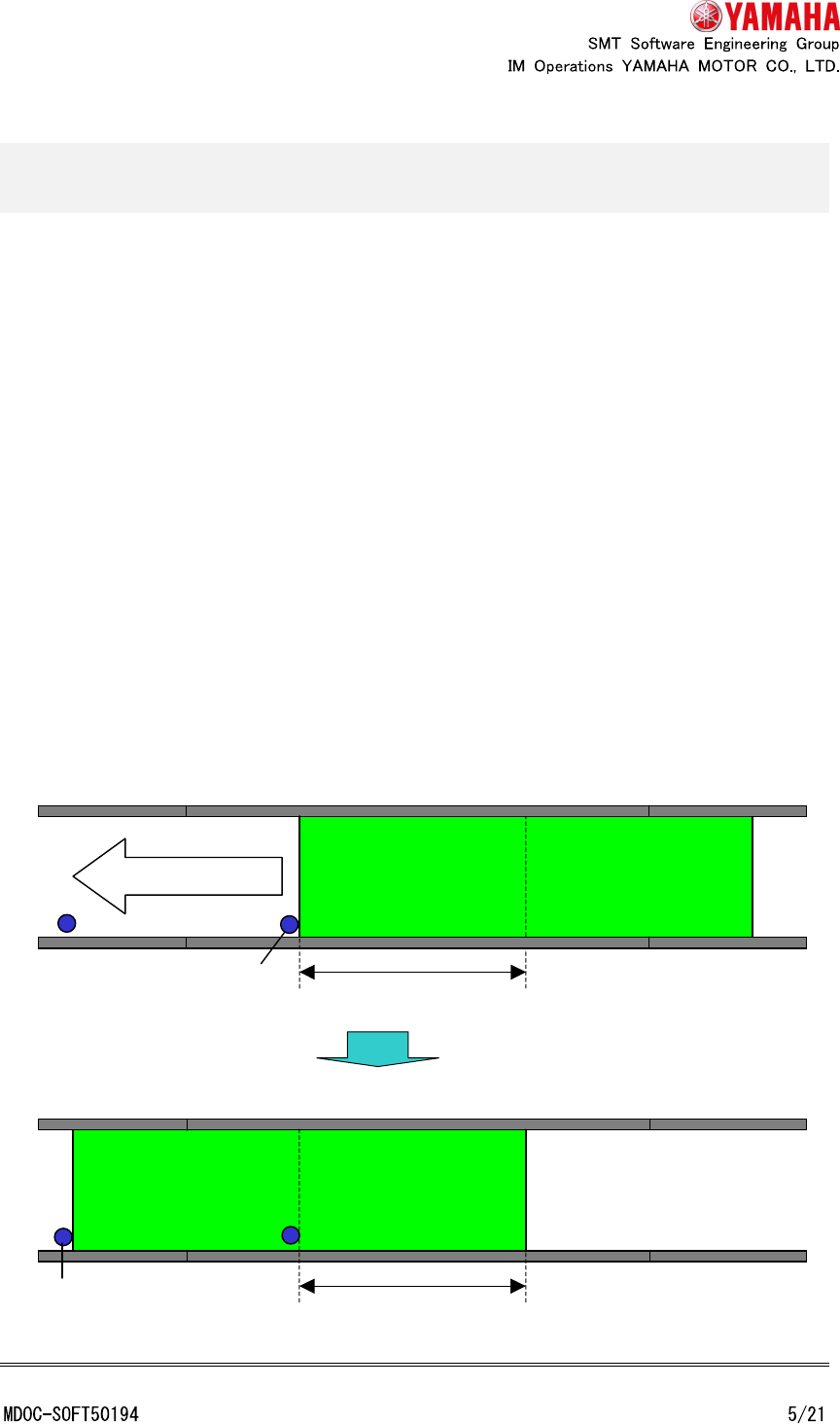

Case of first half area mount
Case of second half area mount.
Second half mount area
Exit stopper
First half mount area
Conveyor direction
Main stopper
