Only first half mount parts exists (Short boards) Only “f irst h alf mount” is executed. B oard i s not fixed at the exit stopper position. There are no restrictions of board dat a to be descr ib ed below . (For example,…
* The next board is not carried in until the mounted board is carried out. When you insert a
board by manual, insert it when no board exists in the machine. If a board is inserted during
transfer, the board might be regarded as a part of transferring board and be overlapped.
4.1.2 Decision method of mount position for each mount
The mount position (“first half mount” or “second half mount”) of each mount data is
decided as follows.
Optimized or
unoptimized board data
Decision method of mount position (“first half mount” or
“second half mount”)
Optimized board data The mount position of each mount data is decided by
optimization.
Unoptimized board data Basically, the mount position of each mount data is uniformly
decided from the mount coordinates.
That is to say, all mount data that can be mounted at “first half
mount” are mounted at “first half mount” and the others are
mounted at “second half mount”.
But, when the local fiducial or the local bad mark is not
recognizable at “first half mount” even if the mount coordinate of
mount data can be mounted at “first half mount”, this mount is
mounted at “second half mount”.
4.1.3 Existence of “first half mount” parts and “second half mount” parts
and the movement
Existence of “first half mount” parts and “second half mount” parts and these movements
are as follows.
Board data type Movement
Both “first half mount” parts
and “second half mount” parts
exists
Both “first half mount” and “second half mount” are
executed.
There are restrictions of board data to be described below.
Only second half mount parts
exists
(Long boards which do not
have “first half mount” parts)
Only “second half mount” is executed. When it is necessary,
bad marks are recognized at the main stopper position.
There are restrictions of board data to be described below.
Only first half mount parts
exists
(Short boards)
Only “first half mount” is executed. Board is not fixed at the
exit stopper position.
There are no restrictions of board data to be described
below. (For example, board fiducial for “second half mount”
is not necessary, and values other than “0.000” can be set
to X coordinate of block offset)
4.2 Cautions when creating board data
There are following restrictions when creating board data for “long board partition mount”.
But, there are no following restrictions on board data that do not need the partition mount
(only “first half mount” exists).
4.2.1 Mount coordinate
Input the coordinates from block origin to mount coordinates. It is not necessary to
distinguish “first half mount” from “second half mount”.
4.2.2 Block offset
Values of X coordinate and R coordinate of block offset have to be “0.000”. When board
data that value of X coordinate or R coordinate is not “0.000” (X positions of same mount
point of each block are different in each block), execute block distribution by the board
editor.
Values other than “0.000” can also be set to Y coordinate.

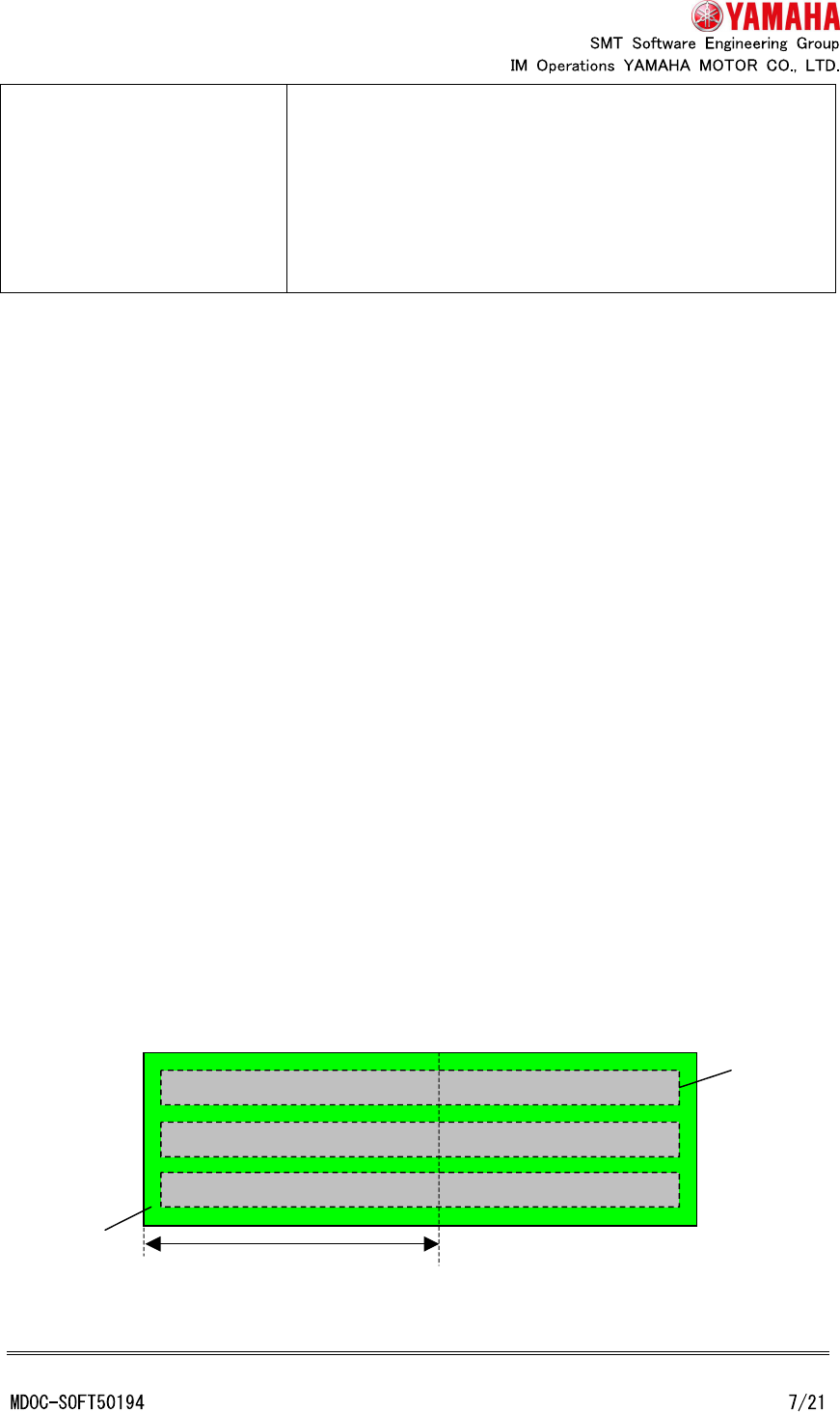

Example 1: Usable board data without block distribution (Only Y coordinate of block offset is
set)
Block
Board
Mountable area of “first half mount”

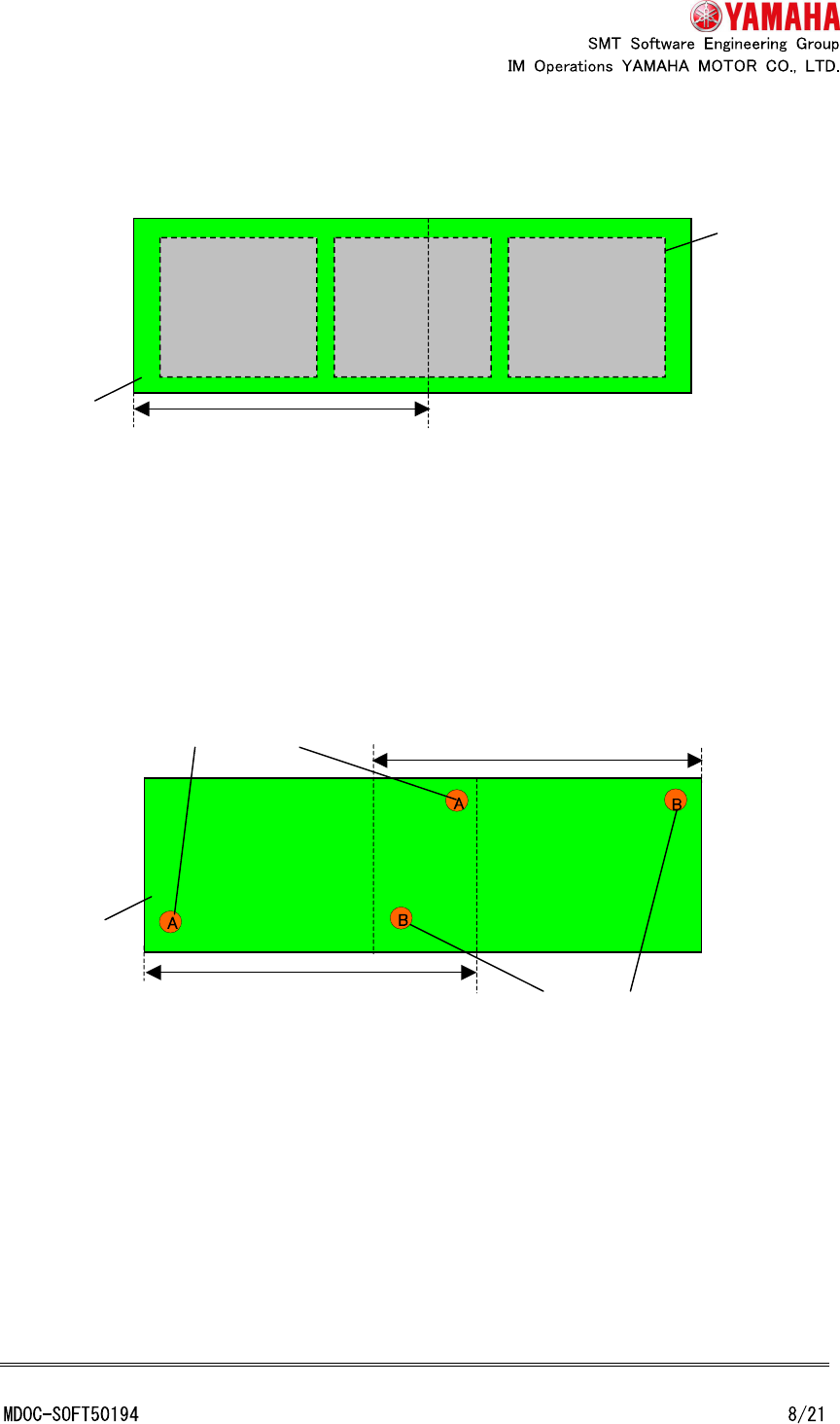

Example 2: Unusable board data without block distribution (Data check error occurs
because X coordinate or R coordinate of block offset is set)
4.2.3 Fiducial
4.2.3.1 Board fiducial
One set of board fiducial is required for the position that can be recognized at “first half
mount”, and another one set of board fiducial is required for the position that can be
recognized at “second half mount”.
Set each board fiducial to [Board] - [Fiducial] tab as following.
(A): Board fiducial for “first half mount” --- Set to “Board (First half)” row
(B): Board fiducial for “second half mount” --- Set to “Board (Second half)” row
Block
Board
Mountable area of “first half mount”
Board
Recognizable area of
“
second
half mount
”
Board fiducial for “first half mount”
Board fiducial for “second half mount”
Recognizable area of “first half mount”
