- - 5. RF12AS,RF12 AS(SP),RF16AS,RF16 AS(SP),RF24AS,RF24AS(SP )(2)
- -
REF.
NO
NOT-REPLACEABLE
PARTS
NOTE PARTNO DESCRIPTION Qty
1
●
401-98755 FRAME_UNIT_12K_C 1
2
●
401-75340 FEED_WHEEL_ASSY_12K 1
3 CM-3003000-01 HIGHTEMPARATURECAUTIONLABEL2(16) 1
4 401-72618 PP_SENSOR_COVER_12K 1
5 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 2
6 400-85419 SCREWM2X4 2
7
●
401-72617 PP_SENSOR_BR_12K 1
8 401-67279 COVER_CS_SCREW_MAC_M26X6 1
9
●
401-67203 FEED_GEAR_D_08K 1
10 401-67202 FEED_GEAR_E_08K 1
11 401-72608 LINER_STUD_12K 3
12
●
401-71255 FEED_GEAR_GUARD_08K_P 1
13
●
401-67264 SPROKET_THRUST_SP_08K 1
14 401-98996 BINDING_MEC_SCREW_M26X6 4
15
●
401-67260 FEED_GEAR_COVER_12K 1
16 401-67279 COVER_CS_SCREW_MAC_M26X6 1
17 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 3
18
●
401-67205 FEED_GEAR_B_08K 1
19
●
401-67204 FEED_GEAR_C_08K 1
20 401-72671 UCSP_R_12K 1
21 401-67225 UPPER_PUSHER_BR_08K 1
22 401-67279 COVER_CS_SCREW_MAC_M26X6 1
23 401-72620 UPPER_COVER_HOOK_12K 1
24 401-72621 UPPER_COVER_HOOK_PIN_12K 1
25 SM-8030302-TP SCREWM3X3 1
26 401-67263 UC_HOOK_SP_08K 1
27
#01
401-75350 UPPER_COVER_UNIT_12K 1
28
#02
401-75360 UPPER_COVER_UNIT_16K 1
29
#03
401-75362 UPPER_COVER_UNIT_24K 1
30
#01
401-75351 UPPER_COVER_12K_ASSY (1)
31
#02
401-75361 UPPER_COVER_16K_ASSY (1)
32
#03
401-75363 UPPER_COVER_24K_ASSY (1)
33
#01
401-72624 PEEL_PLATE_12K (1)
34
#02
401-72625 PEEL_PLATE_16K (1)
35
#03
401-72626 PEEL_PLATE_24K (1)
36
#01
401-72670 SCREW (2)
37
#04
401-72670 SCREW (4)
38
●
401-66950 MOTOR_ASSY_12K 1
39
●
401-78886 ETFPPSENSPCBASM_C 1
- -

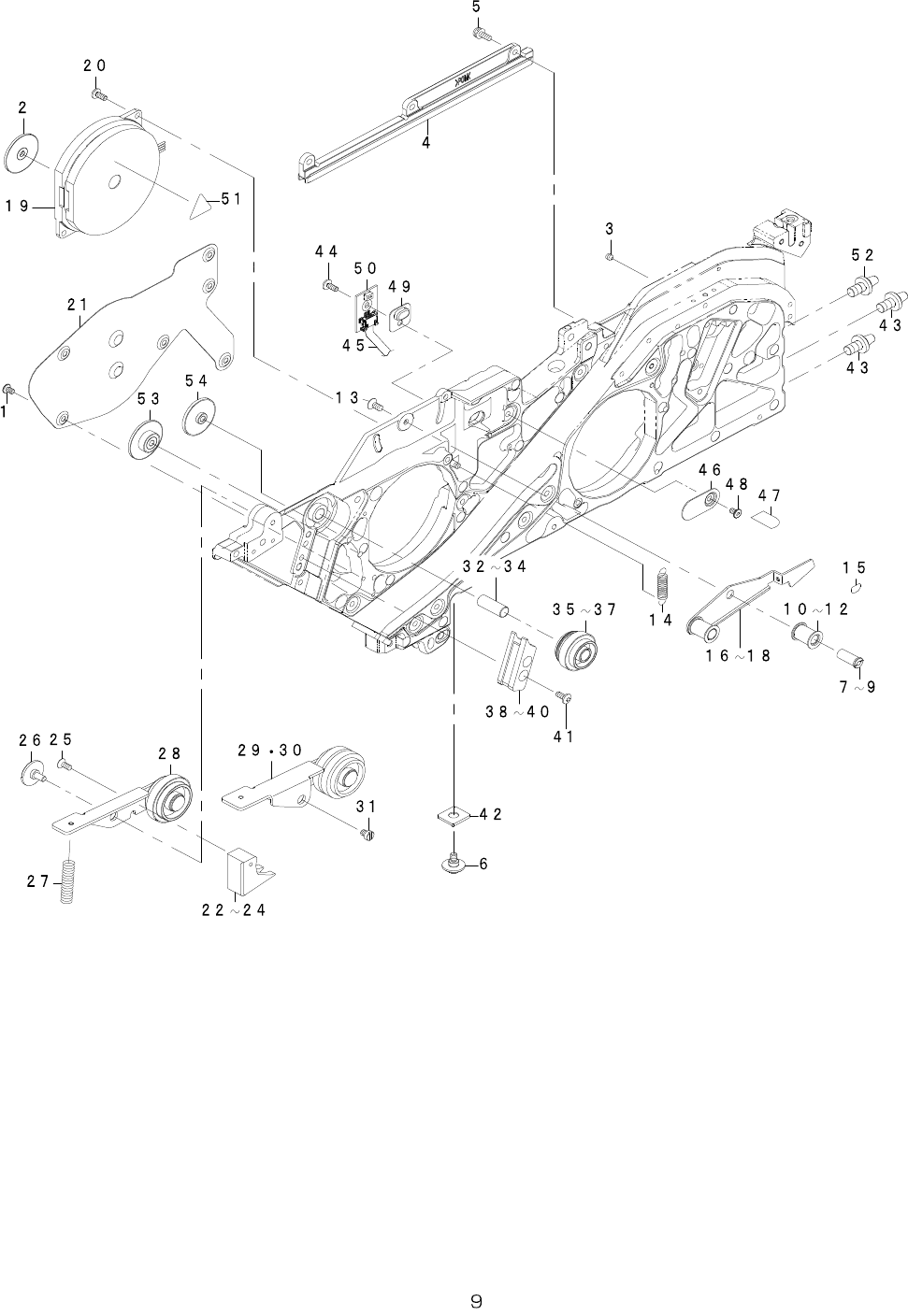

5. RF12AS,RF12AS(SP),RF16AS,RF16AS(SP),RF24AS,RF24AS(SP)(2)
- -
REF.
NO
NOT-REPLACEABLE
PARTS
NOTE PARTNO DESCRIPTION Qty
1 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 6
2 401-67202 FEED_GEAR_E_08K 1
3 SM-8030302-TP SCREWM3X3 3
4 401-67213 SLIDE_RAIL 1
5 SL-4860891-SC SCREWM2.6L=8 3
6 401-67290 LOCATE_PIN_A 1
7
#01
401-72646 T_ROLLER_MAIN_SH_12K 2
8
#02
401-72647 T_ROLLER_MAIN_SH_16K 2
9
#03
401-72648 T_ROLLER_MAIN_SH_24K 2
10
#01
401-72649 T_ROLLER_12K 1
11
#02
401-72650 T_ROLLER_16K 1
12
#03
401-72651 T_ROLLER_24K 1
13 400-52050 SCREWM3X6MEC 2
14 401-72655 TENSIONER_SP_12K 1
15 401-89573 TENSIONER_REFLECTOR_R 1
16
#01
401-75354 TENSIONER_ARM_SUB_ASSY_12K 1
17
#02
401-75366 TENSIONER_ARM_SUB_ASSY_16K 1
18
#03
401-75371 TENSIONER_ARM_SUB_ASSY_24K 1
19
● #01
401-66950 MOTOR_ASSY_12K 1
20 401-98996 BINDING_MEC_SCREW_M26X6 2
21 401-67261 PULL_GEAR_COVER_12K 1
22
#01
401-72642 PULL_UPPER_SCRAPER_12K 1
23
#02
401-72643 PULL_UPPER_SCRAPER_16K 1
24
#03
401-72644 PULL_UPPER_SCRAPER_24K 1
25 401-67280 COVER_SC_TAPPING_SCREW_M26X6 1
26 E1524-706-C00 STEPSCREW 1
27 401-72645 PULL_IDLER_ARM_SP_12K 1
28
#01
401-75356 PULL_IDLER_ARM_SUB_ASSY_12K 1
29
#02
401-75368 PULL_IDLER_ARM_SUB_ASSY_16K 1
30
#03
401-75373 PULL_IDLER_ARM_SUB_ASSY_24K 1
31
#04
401-81066 IDLER_ARM_SH 1
32
#01
401-72627 GEAR_SH_12K 1
33
#02
401-72628 GEAR_SH_16K 1
34
#03
401-72629 GEAR_SH_24K 1
35
#01
401-72630 PULL_GEAR_12K 1
36
#02
401-72631 PULL_GEAR_16K 1
37
#03
401-72632 PULL_GEAR_24K 1
38
#01
401-72633 PULL_LOWER_SCRAPER_12K 1
39
#02
401-72634 PULL_LOWER_SCRAPER_16K 1
40
#03
401-72635 PULL_LOWER_SCRAPER_24K 1
41 401-98996 BINDING_MEC_SCREW_M26X6 2
42 401-67291 LOCATE_PIN_BASE 1
43 401-67211 X_AXIS_BASE_PIN_1 2
44 401-98996 BINDING_MEC_SCREW_M26X6 1
45 401-66941 TENSIONSENSFPC 1
46 401-67247 PULL_SENSOR_COVER_A 1
47 402-07086 ANTIREF_SHEET_TENSIONER 1
48 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 1
49 402-07091 SENSOR_OPEN_CAP 1
50 401-78887 ETFREFLECTIVESENSPCBASM_C 1
51 CM-3003000-01 HIGHTEMPARATURECAUTIONLABEL2(16) 1
52
○
401-67212 X_AXIS_BASE_PIN_2 1
53 401-67207 PULL_GEAR_A 1
54 401-67208 PULL_GEAR_B 1
