- - REF. NO NOT-REPLACEABLE PARTS NOTE PARTNO DESCRIPTION Qty 1 ● 401-85729 FRAME_UNIT_08K_C 1 2 ● #01 402-07078 FRAME_UNIT_08K_CA 1 3 ● 401-69533…
- -

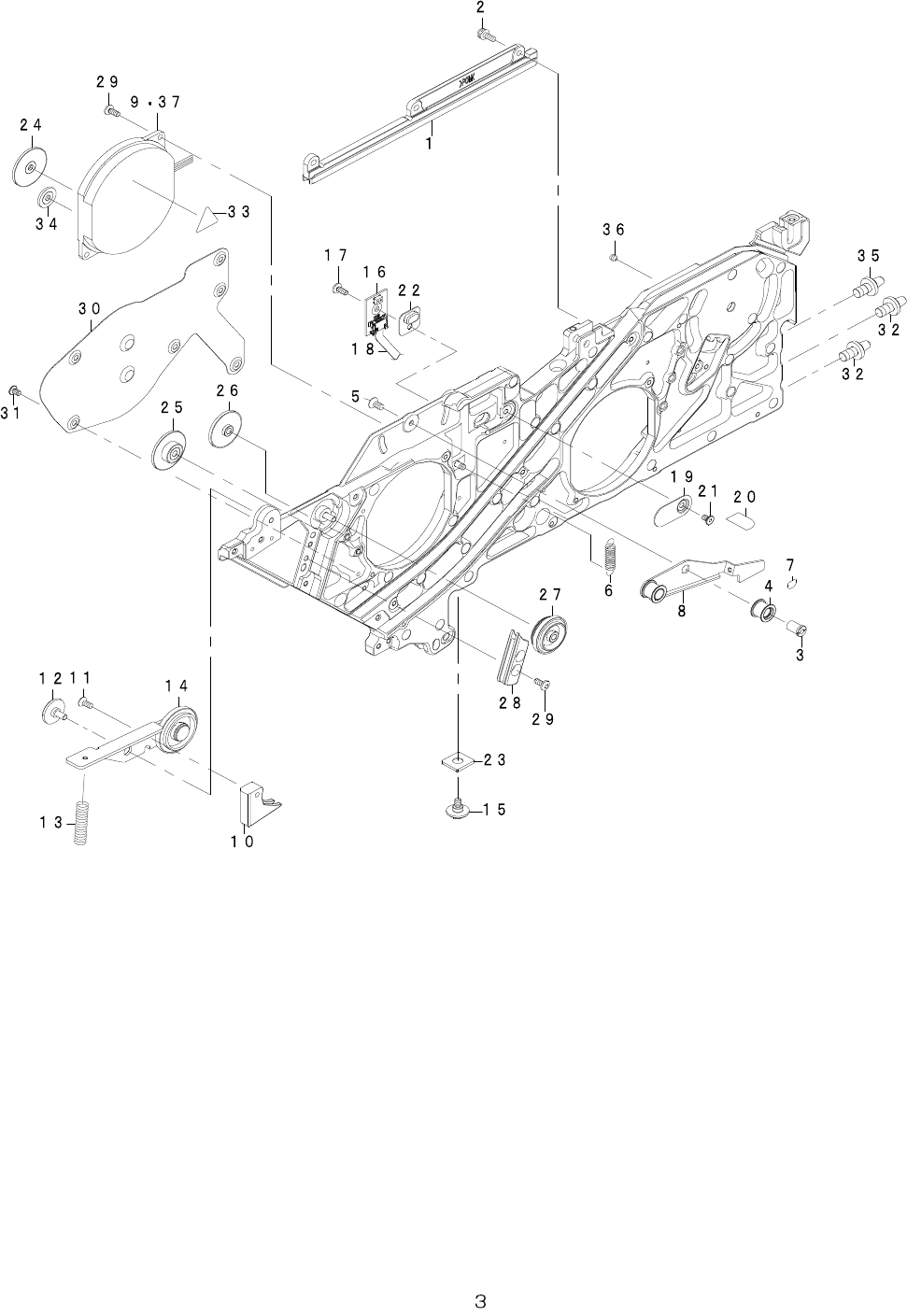

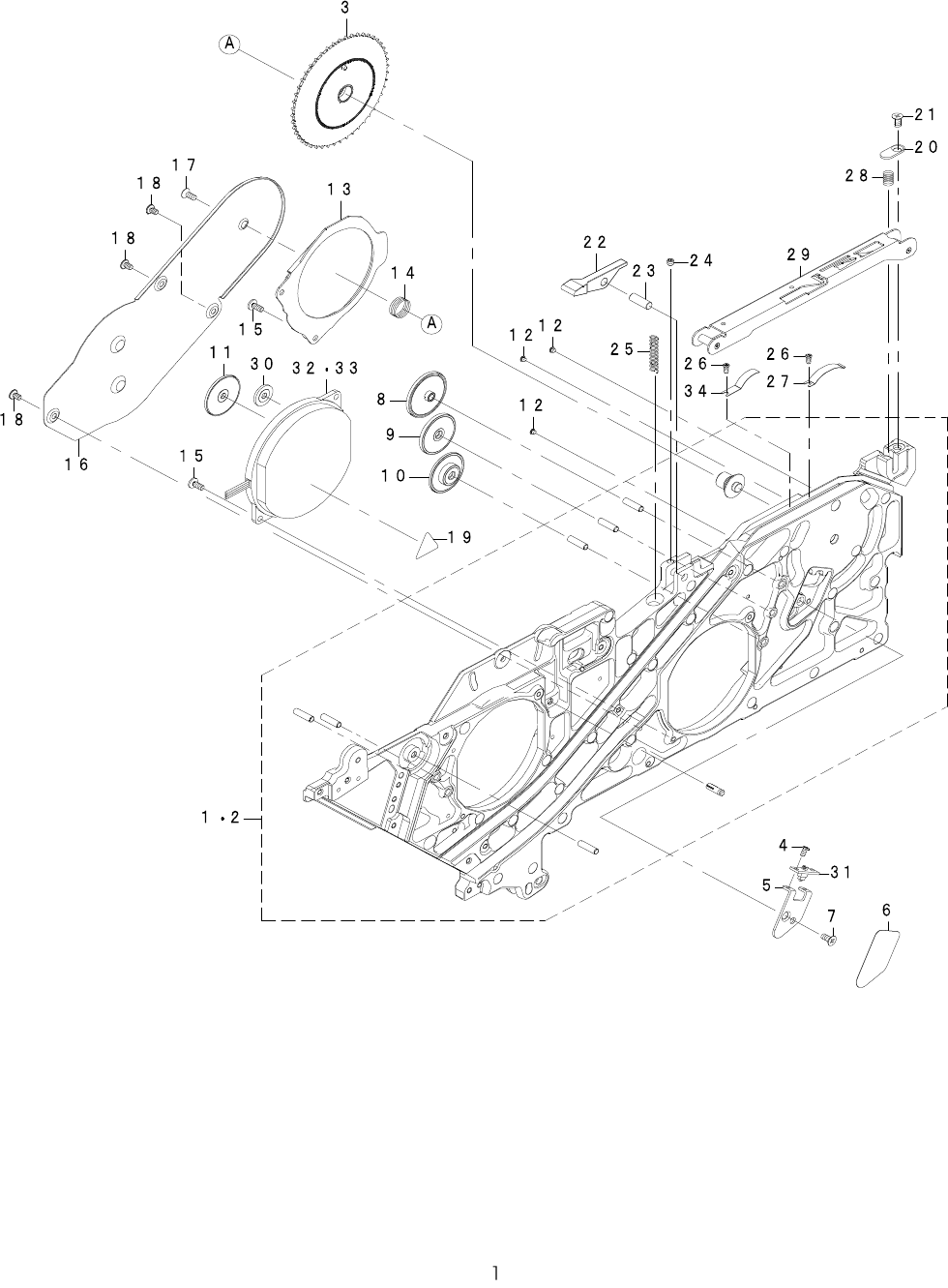

1. RF08AS,RF08AS(SP)(1)
- -

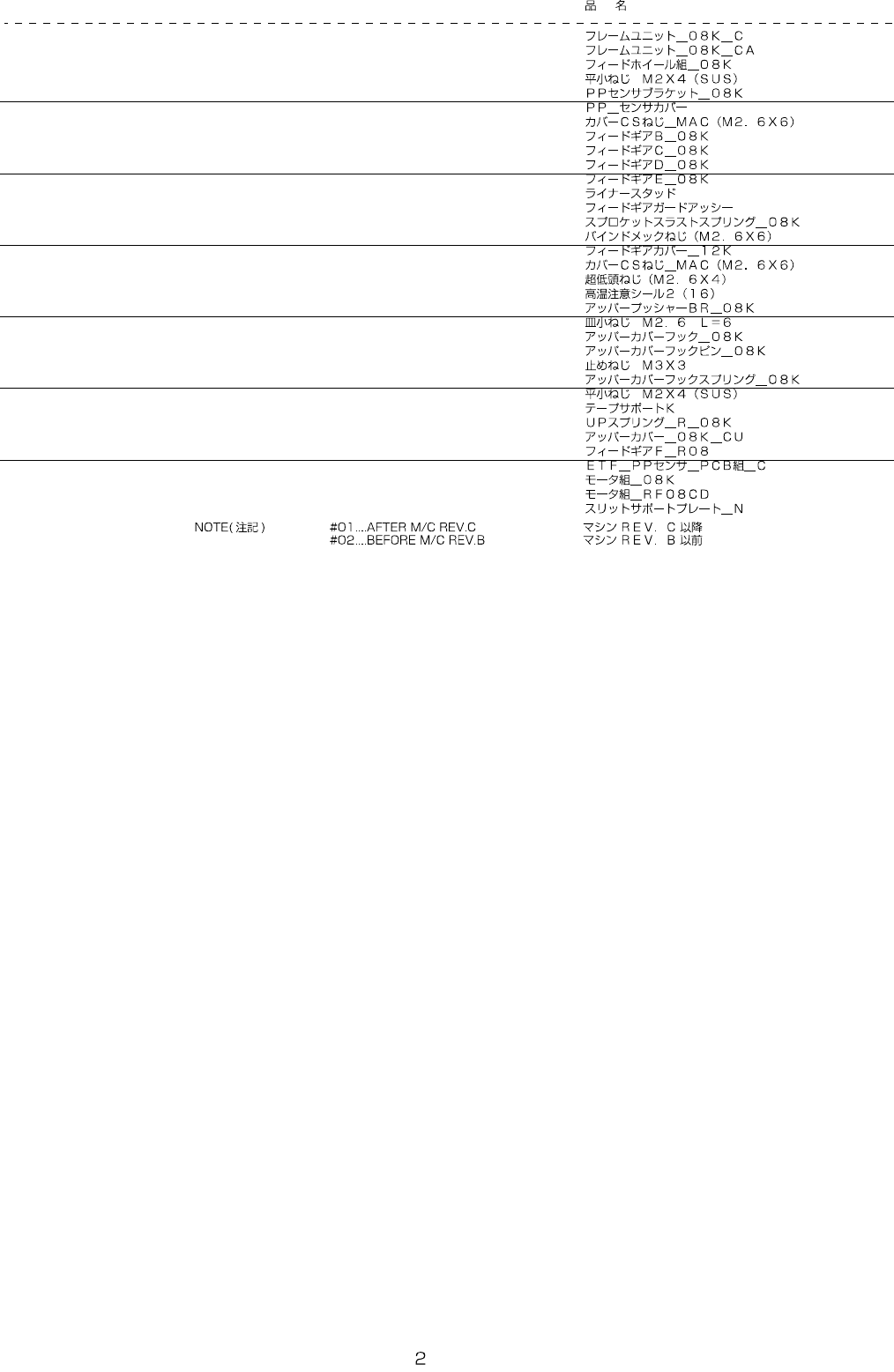

REF.
NO
NOT-REPLACEABLE
PARTS
NOTE PARTNO DESCRIPTION Qty
1
●
401-85729 FRAME_UNIT_08K_C 1
2
● #01
402-07078 FRAME_UNIT_08K_CA 1
3
●
401-69533 FEED_WHEEL_ASSY_08K 1
4 400-85419 SCREWM2X4 2
5
●
401-67231 PP_SENSOR_BR_08K 1
6 401-67230 PP_SENSOR_COVER 1
7 401-67279 COVER_CS_SCREW_MAC_M26X6 1
8
●
401-67205 FEED_GEAR_B_08K 1
9
●
401-67204 FEED_GEAR_C_08K 1
10
●
401-67203 FEED_GEAR_D_08K 1
11 401-67202 FEED_GEAR_E_08K 1
12
●
401-03295 LINER_STUD 3
13
●
402-49601 FEED_GEAR_GUARD_ASSY 1
14
●
401-67264 SPROKET_THRUST_SP_08K 1
15 401-98996 BINDING_MEC_SCREW_M26X6 4
16
●
401-67260 FEED_GEAR_COVER_12K 1
17 401-67279 COVER_CS_SCREW_MAC_M26X6 1
18 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 3
19 CM-3003000-01 HIGHTEMPARATURECAUTIONLABEL2(16) 1
20 401-67225 UPPER_PUSHER_BR_08K 1
21 SM-1860601-SC SCREWM2.6L=6 1
22 401-67223 UPPER_COVER_HOOK_08K 1
23 401-67226 UPPER_COVER_HOOK_PIN_08K 1
24 SM-8030302-TP SCREWM3X3 1
25 401-67263 UC_HOOK_SP_08K 1
26 400-85419 SCREWM2X4 2
27 401-78024 SUPPORT_PLATE_K 1
28 401-67224 UCSP_R_08K 1
29 402-37420 UPPER_COVER_08K_CU 1
30
#01
401-98968 FEED_GEAR_F_R08 1
31
●
401-78886 ETFPPSENSPCBASM_C 1
32
● #02
401-66937 MOTOR_ASSY_08K 1
33
● #01
402-04639 MOTOR_ASSY_RF08CD 1
34 402-12930 SLIT_SUPPORT_PLATE_N 1
- -
2. RF08AS,RF08AS(SP)(2)
