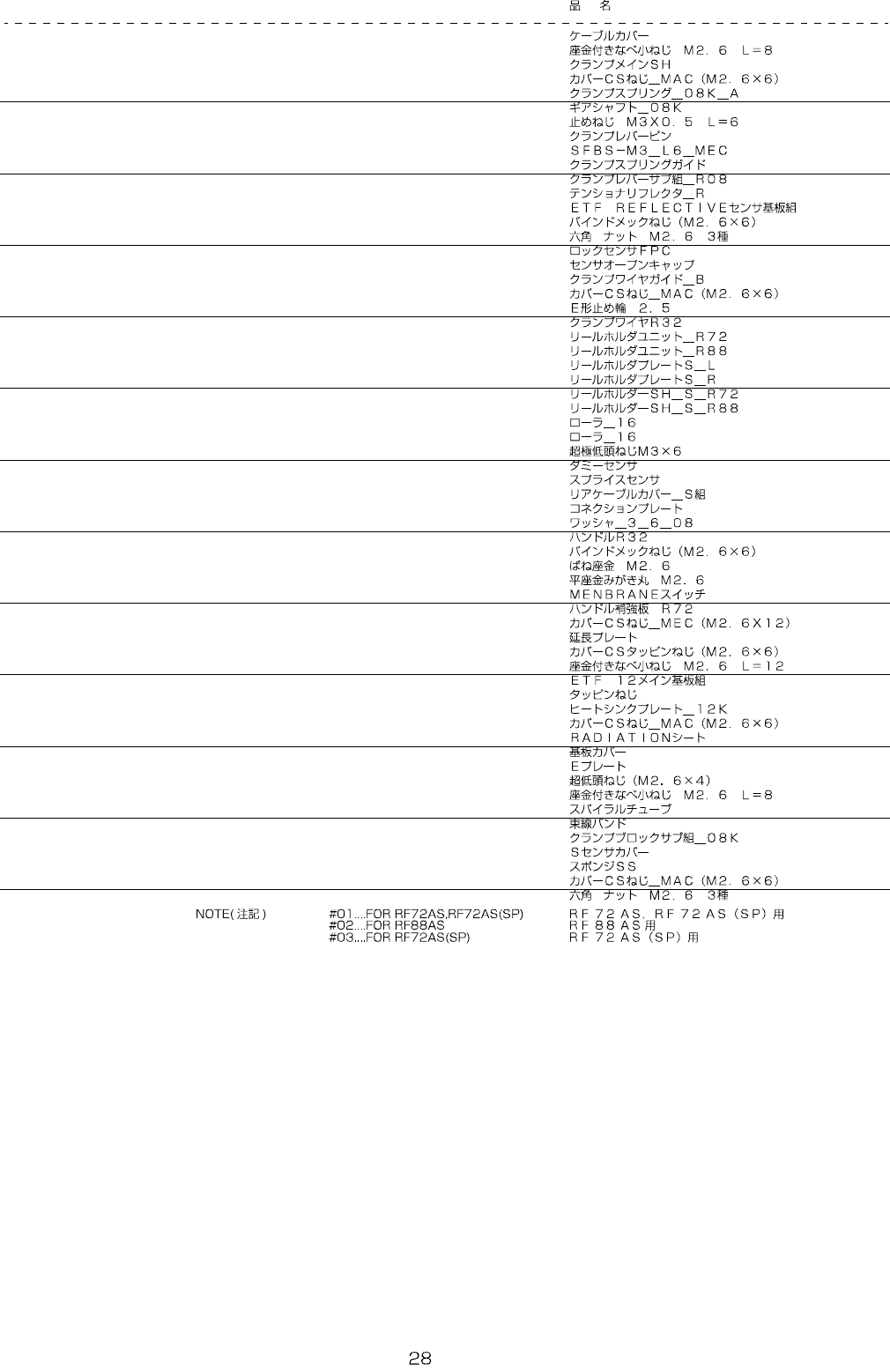

- - 15. RF04AS(1)

- -

REF.

NOT-REPLACEABLE

PARTS

NOTE PARTNO DESCRIPTION Qty

1 401-89106 CABLE_COVER 1

2 SL-4860891-SC SCREWM2.6L=8 4

3 401-67218 CLAMP_MAIN_SH 1

4 401-67279 COVER_CS_SCREW_MAC_M26X6 1

5 401-67265 CLAMP_SP 1

6 401-67216 GEAR_SH_08K 1

7 SM-8030602-TP SCREWM3X0.5L=6 1

8 401-67237 CLAMP_LEVER_PIN 1

9 402-02970 SFBS-M3_L6_MEC 1

10 401-67238 CLAMP_SPRING_GUIDE 1

11 402-04901 CLAMP_LEVER_SUB_ASSY_R08 1

12 401-89573 TENSIONER_REFLECTOR_R (1)

13 401-62445 ETFREFLECTIVESENSPCBASM 1

14 401-98996 BINDING_MEC_SCREW_M26X6 1

15 NM-6860003-SC NUTM2.6TYPE3 1

16 401-66940 LOCKSENSFPC 1

17 402-07091 SENSOR_OPEN_CAP 1

18 401-67250 CLAMP_WIRE_GUIDE_B 3

19 401-67279 COVER_CS_SCREW_MAC_M26X6 6

20 RE-0250000-K0 E-RING2.5 1

21 401-91037 CLAMP_WIRE_R32 1

#01

402-33597 REELHOLDER_UNIT_R72 1

#02

402-33612 REELHOLDER_UNIT_R88 1

24 402-30227 REEL_HOLDER_PLATE_S_L (1)

25 402-30228 REEL_HOLDER_PLATE_S_R (1)

#01

402-30229 REEL_HOLDER_SH_S_R72 (4)

#02

402-30230 REEL_HOLDER_SH_S_R88 (4)

#01

402-30231 ROLLER_16 (12)

#02

402-30231 ROLLER_16 (14)

30 402-30171 SUPER_LOW_HEAD_SCREW_M3X6 (8)

31 401-67233 DUMMY_SENSOR 1

#03

401-66944 SPLICESENSOR 1

33 402-07093 REAR_CABLE_COVER_S_ASSY 1

34 402-37523 CONNECTION_PLATE 1

35 402-37524 WASHER_3_6_08 1

36 401-89150 HANDLE_R32 1

37 401-98996 BINDING_MEC_SCREW_M26X6 3

38 WS-0270002-KN SPRINGWASHERM2.6 3

39 WP-0280501-SC WASHERM2.6 3

40 401-66942 MENBRANESWITCH 1

41 402-37028 HANDLE_REINFORCED_PLATE_R72 1

42 401-97340 COVER_CS_SCREW_MEC_M26X12 4

43 401-67253 EXTENSION_PLATE 1

44 401-67280 COVER_SC_TAPPING_SCREW_M26X6 2

45 SL-4861291-SC SCREWM2.6L=12 2

●

401-66952 ETF12MAINPCBASM 1

47 ST-4860821-SN TAPPINGSCREWM2.5X8 2

48 401-72665 HEAT_SINK_PLATE_12K 1

49 401-67279 COVER_CS_SCREW_MAC_M26X6 2

50 401-66943 RADIATIONSHEET 2

51 401-89151 PCB_COVER 1

52 401-89152 E_PLATE 1

53 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 2

54 SL-4860891-SC SCREWM2.6L=8 5

55 HX-0031400-00 SPIRALTUBE 0.14

56 EA-9500B00-00 CABLEBAND 3

57 401-69546 CLAMP_BLOCK_SUB_ASSY_08K 1

58 401-89153 S_SENSOR_COVER 1

59 401-89200 SPONGE_SS 1

60 401-67279 COVER_CS_SCREW_MAC_M26X6 3

61 NM-6860003-SC NUTM2.6TYPE3 2

- -

15.RF04AS(1)

- -

REF.

NOT-REPLACEABLE

PARTS

NOTE PARTNO DESCRIPTION Qty

● #01

402-09064 FRAME_UNIT_R04_C 1

2 400-85419 SCREWM2X4 2

●

401-67231 PP_SENSOR_BR_08K 1

4 401-67230 PP_SENSOR_COVER 1

5 401-67279 COVER_CS_SCREW_MAC_M26X6 1

●

401-67205 FEED_GEAR_B_08K 1

●

401-67204 FEED_GEAR_C_08K 1

●

401-67203 FEED_GEAR_D_08K 1

9 401-67202 FEED_GEAR_E_08K 1

●

401-72608 LINER_STUD_12K 3

●

401-71255 FEED_GEAR_GUARD_08K_P 1

●

401-67264 SPROKET_THRUST_SP_08K 1

13 401-98996 BINDING_MEC_SCREW_M26X6 4

●

401-67260 FEED_GEAR_COVER_12K 1

15 401-67279 COVER_CS_SCREW_MAC_M26X6 1

16 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 3

●

401-99006 FEED_WHEEL_ASSY_R04 1

18 401-67225 UPPER_PUSHER_BR_08K 1

19 SM-1860601-SC SCREWM2.6L=6 1

20 401-67223 UPPER_COVER_HOOK_08K 1

21 401-67226 UPPER_COVER_HOOK_PIN_08K 1

22 SM-8030302-TP SCREWM3X3 1

23 401-67263 UC_HOOK_SP_08K 1

24 401-67224 UCSP_R_08K 1

25 401-99043 UPPER_COVER_W4P1 1

26 CM-3003000-01 HIGHTEMPARATURECAUTIONLABEL2(16) 1

●

401-78886 ETFPPSENSPCBASM_C 1

● #01

401-66937 MOTOR_ASSY_08K 1

● #02

402-04639 MOTOR_ASSY_RF08CD 1

● #02

402-27101 FRAME_UNIT_R04_CA 1

● #02

401-98968 FEED_GEAR_F_R08 1
