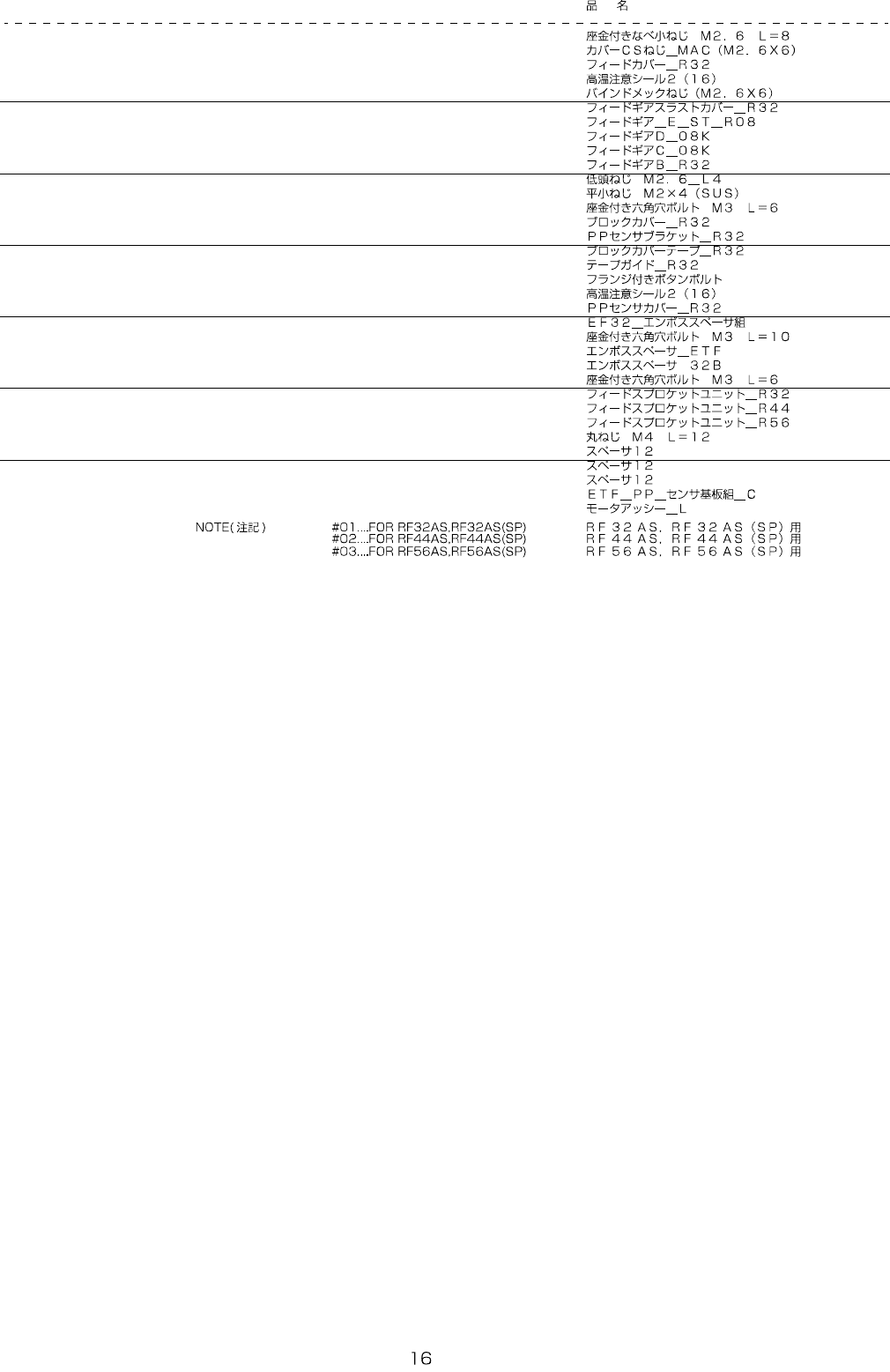

- - 9. RF32AS,RF32 AS(SP),RF44AS,RF44 AS(SP),RF56AS,RF56AS(SP )(3)
- -
REF.
NO
NOT-REPLACEABLE
PARTS
NOTE PARTNO DESCRIPTION Qty
1 SL-4860891-SC SCREWM2.6L=8 2
2 401-67279 COVER_CS_SCREW_MAC_M26X6 1
3 401-89180 FEED_COVER_R32 1
4 CM-3003000-01 HIGHTEMPARATURECAUTIONLABEL2(16) 1
5 401-98996 BINDING_MEC_SCREW_M26X6 2
6
●
401-89170 FEED_GEAR_THRUST_COVER_R32 1
7 402-26792 FEED_GEAR_E_ST_R08 1
8
●
401-67203 FEED_GEAR_D_08K 1
9
●
401-67204 FEED_GEAR_C_08K 1
10
●
401-89168 FEED_GEAR_B_R32 1
11 401-89110 LOW_HEAD_SCREW_M26_L4 5
12 400-85419 SCREWM2X4 1
13 SL-6030692-TN SCREWM3L=6 2
14 401-89179 BLOCK_COVER_R32 1
15
●
401-89177 PP_SENSOR_BR_R32 1
16 401-89178 BLOCK_COVER_TAPE_R32 1
17
●
401-89160 TAPE_GUIDE_R32 1
18 401-71822 SFBS-M3_L6 5
19 CM-3003000-01 HIGHTEMPARATURECAUTIONLABEL2(16) 1
20 401-89181 PP_SENSOR_COVER_R32 1
21 400-91583 EF32_EMBOSS_SPACER_ASSY 1
22 SL-6031092-TN SCREWM3L=10 (1)
23 400-91599 EMBOSS_SPACER_ETF (1)
24 E6902-706-R00 EMBOSSSPACER32B (1)
25 SL-6030692-TN SCREWM3L=6 (2)
26
● #01
401-91047 FEED_SPROKET_UNIT_R32 1
27
● #02
401-91063 FEED_SPROKET_UNIT_R44 1
28
● #03
401-91077 FEED_SPROKET_UNIT_R56 1
29
●
SM-3041252-TN SCREWM4L=12 (2)
30
● #01
401-89108 SPACER_12 3
31
● #02
401-89108 SPACER_12 6
32
● #03
401-89108 SPACER_12 9
33
●
401-78886 ETFPPSENSPCBASM_C 1
34
●
402-44435 MOTOR_ASSY_L 1
- -
9. RF32AS,RF32AS(SP),RF44AS,RF44AS(SP),RF56AS,RF56AS(SP)(3)
- -
REF.
NO
NOT-REPLACEABLE
PARTS
NOTE PARTNO DESCRIPTION Qty
1 401-72655 TENSIONER_SP_12K 1
2 402-07091 SENSOR_OPEN_CAP
1
3 401-78887 ETFREFLECTIVESENSPCBASM_C 1
4 401-98996 BINDING_MEC_SCREW_M26X6 1
5 401-90456 TENSION_SENS_FPC_R32 1
6 401-89129 PULL_GEAR_SPACER 1
7 401-89573 TENSIONER_REFLECTOR_R 1
8 CM-3003000-01 HIGHTEMPARATURECAUTIONLABEL2(16) 1
9 402-26792 FEED_GEAR_E_ST_R08 1
10 402-26793 PULL_GEAR_A_ST_R08 1
11 401-67208 PULL_GEAR_B 1
12 401-98996 BINDING_MEC_SCREW_M26X6 2
13 401-89109 PULL_GEAR_COVER 1
14 401-89110 LOW_HEAD_SCREW_M26_L4 6
15 401-89127 PULL_DRIVE_GEAR 1
16 400-52050 SCREWM3X6MEC 3
17 400-52050 SCREWM3X6MEC 1
18
#01
401-89130 FRAME_SH_32 3
19
#02
401-89131 FRAME_SH_44 3
20
#03
401-89132 FRAME_SH_56 3
21
#01
401-89128 PULL_DRIVE_EXTENSION 2
22
#02
401-89128 PULL_DRIVE_EXTENSION 3
23
#03
401-89128 PULL_DRIVE_EXTENSION 4
24 WP-0330816-SF WASHER3.25X10X0.8 1
25
#01
401-91053 TENSIONER_ARM_SUB_ASSY_R32 1
26
#02
401-91067 TENSIONER_ARM_SUB_ASSY_R44 1
27
#03
401-91081 TENSIONER_ARM_SUB_ASSY_R56 1
28
#01
401-89133 T_ROLLER_MAIN_SH_32 1
29
#02
401-89134 T_ROLLER_MAIN_SH_44 1
30
#03
401-89135 T_ROLLER_MAIN_SH_56 1
31 401-89139 T_ROLLER 2
32
#02
401-89140 T_ROLLER_SPACER 1
33
#03
401-89140 T_ROLLER_SPACER 2
34 400-52050 SCREWM3X6MEC 1
35 401-67213 SLIDE_RAIL 1
36 SL-4860891-SC SCREWM2.6L=8 3
37
●
402-44435 MOTOR_ASSY_L 1
38 401-67213 SLIDE_RAIL 1
39 402-10459 SUB_RAIL_SH_R32_2 3
40 WP-0220301-SC WASHERM2 3
41 NM-6020001-SC NUTM2 1
42
○
401-67212 X_AXIS_BASE_PIN_2 1
43 SM-8030302-TP SCREWM3X3 3
44 401-67290 LOCATE_PIN_A 1
45 401-67291 LOCATE_PIN_BASE 1
46 401-67211 X_AXIS_BASE_PIN_1 2
47
#01
401-91054 PULL_IDLER_ARM_ASSY_R32 1
48
#02
401-91068 PULL_IDLER_ARM_ASSY_R44 1
49
#03
401-91082 PULL_IDLER_ARM_ASSY_R56 1
50
#01
401-89111 PULL_IDLER_ARM_32 (1)
51
#02
401-89112 PULL_IDLER_ARM_44 (1)
52
#03
401-89113 PULL_IDLER_ARM_56 (1)
53 401-89197 ARM_SH_HOLDER_A (1)
54
#01
401-89114 PULL_UPPER_SCRAPER_BASE_32 (1)
55
#02
401-89115 PULL_UPPER_SCRAPER_BASE_44 (1)
56
#03
401-89116 PULL_UPPER_SCRAPER_BASE_56 (1)
57 400-55256 SCREWM3X5MEC (4)
58
#01
401-89117 PULL_UPPER_SCRAPER (2)
59
#02
401-89117 PULL_UPPER_SCRAPER (3)
60
#03
401-89117 PULL_UPPER_SCRAPER (4)
61
#01
EZ-4453818-01 BOLT(CBSTSR3-5) (4)
62
#02
EZ-4453818-01 BOLT(CBSTSR3-5) (6)
63
#03
EZ-4453818-01 BOLT(CBSTSR3-5) (8)
64 401-76841 KEEP_HANDS_AWAY_LABEL (1)
65 401-89122 PULL_IDLER_GEAR (1)
66
#01
401-74648 PULL_IDLER_GEAR_EXTENSION (2)
67
#02
401-74648 PULL_IDLER_GEAR_EXTENSION (3)
68
#03
401-74648 PULL_IDLER_GEAR_EXTENSION (4)
69 WP-0430801-SC WASHERM4 (1)
70
#01
401-89147 IDLER_GEAR_SH_32 (1)
71
#02
401-89148 IDLER_GEAR_SH_44 (1)
72
#03
401-89149 IDLER_GEAR_SH_56 (1)
73 RE-0250000-K0 E-RING2.5 (2)
74
#02
401-89195 SPEACER_6X6 1
75
#03
401-89195 SPEACER_6X6 2
76
#01
SL-4030891-SC SCREWM3X8 1
77
#02
SL-4031291-SC SCREWM3L=12 1
78
#03
SL-4032081-SC SCREWM3L=20 1
79
#01
401-89118 PULL_IDLER_ARM_SP_L_32 1
80
#02
401-89120 PULL_IDLER_ARM_SP_L_44 1
81
#03
401-89121 PULL_IDLER_ARM_SP_L_56 1
82
#01
401-89119 PULL_IDLER_ARM_SP_R_32 1
83
#02
401-89198 PULL_IDLER_ARM_SP_R_44 1
84
#03
401-89199 PULL_IDLER_ARM_SP_R_56 1
85
#01
401-91055 PULL_LOWER_SCRAPER_ASSY_R32 1
86
#02
401-91069 PULL_LOWER_SCRAPER_ASSY_R44 1
87
#03
401-91083 PULL_LOWER_SCRAPER_ASSY_R56 1
88
#01
401-89123 PULL_LOWER_SCRAPER_BASE_32 (1)
89
#02
401-89124 PULL_LOWER_SCRAPER_BASE_44 (1)
90
#03
401-89125 PULL_LOWER_SCRAPER_BASE_56 (1)
91
#01
401-89126 PULL_LOWER_SCRAPER (2)
92
#02
401-89126 PULL_LOWER_SCRAPER (3)
93
#03
401-89126 PULL_LOWER_SCRAPER (4)
94
#01
EZ-4453818-01 BOLT(CBSTSR3-5) (4)
95
#02
EZ-4453818-01 BOLT(CBSTSR3-5) (6)
96
#03
EZ-4453818-01 BOLT(CBSTSR3-5) (8)
