- - 11. RF72AS,RF72AS(SP),RF8 8AS(1)
- -
REF.
NO
NOT-REPLACEABLE
PARTS
NOTE PARTNO DESCRIPTION Qty
1 401-67279 COVER_CS_SCREW_MAC_M26X6 2
2 401-66943 RADIATIONSHEET 2
3 401-67216 GEAR_SH_08K 1
4 SM-8030602-TP SCREWM3X0.5L=6 1
5 401-67218 CLAMP_MAIN_SH 1
6 401-67279 COVER_CS_SCREW_MAC_M26X6 1
7 401-67265 CLAMP_SP 1
8 401-69546 CLAMP_BLOCK_SUB_ASSY_08K 1
9
●
402-29603 RF12MAINPCBASM_C 1
10 WS-0410002-KN SPRINGWASHERM4 1
11 NM-3040520-SC FLANGENUTM4 1
12 401-89151 PCB_COVER 1
13 401-67237 CLAMP_LEVER_PIN 1
14 402-02970 SFBS-M3_L6_MEC 1
15 401-67238 CLAMP_SPRING_GUIDE 1
16 401-89573 TENSIONER_REFLECTOR_R 1
17 402-04901 CLAMP_LEVER_SUB_ASSY_R08 1
18 401-89152 E_PLATE 1
19 401-78887 ETFREFLECTIVESENSPCBASM_C 1
20 401-98996 BINDING_MEC_SCREW_M26X6 1
21 NM-6860003-SC NUTM2.6TYPE3 1
22 401-66940 LOCKSENSFPC 1
23 402-07091 SENSOR_OPEN_CAP 1
24 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 2
25 401-67250 CLAMP_WIRE_GUIDE_B 3
26 401-67279 COVER_CS_SCREW_MAC_M26X6 6
27 RE-0250000-K0 E-RING2.5 1
28 401-91037 CLAMP_WIRE_R32 1
29 SL-4860891-SC SCREWM2.6L=8 5
30 401-89150 HANDLE_R32 1
31 SL-4860891-SC SCREWM2.6L=8 3
32 401-66942 MENBRANESWITCH 1
33 401-89158 LID_PRESSURE_PLATE
1
34 401-67254 HANDLE_REINFORCED_PLATE_12K 1
35 401-67279 COVER_CS_SCREW_MAC_M26X6 5
36 402-07093 REAR_CABLE_COVER_S_ASSY 1
37 401-67253 EXTENSION_PLATE 1
38 401-67280 COVER_SC_TAPPING_SCREW_M26X6 2
39 HX-0031400-00 SPIRALTABE 1
40 EA-9500B00-00 CABLEBAND 3
41 ST-4860421-SN TAPPINGSCREWD=2.6L=4 4
42
●
401-66939 ETFI/FCABLEASM 1
43 ST-4860821-SN TAPPINGSCREWM2.5X8 2
44 401-72665 HEAT_SINK_PLATE_12K 1
45 401-67233 DUMMY_SENSOR 1
46 401-89153 S_SENSOR_COVER 1
47 401-89200 SPONGE_SS 1
48 401-67279 COVER_CS_SCREW_MAC_M26X6 3
49 NM-6860003-SC NUTM2.6TYPE3 2
50
#01
401-66944 SPLICE_SENSOR 1
51 400-91597 REEL_HOOK_32 1
52 400-91598 REEL_HOOK_SH_32 1
53 E1306-706-C00 TAPEHOLDERWASHER 1
54 SM-4042501-SC SCREWM4X0.7L=25 1
55 WP-0430801-SC WASHERM4 1
- -

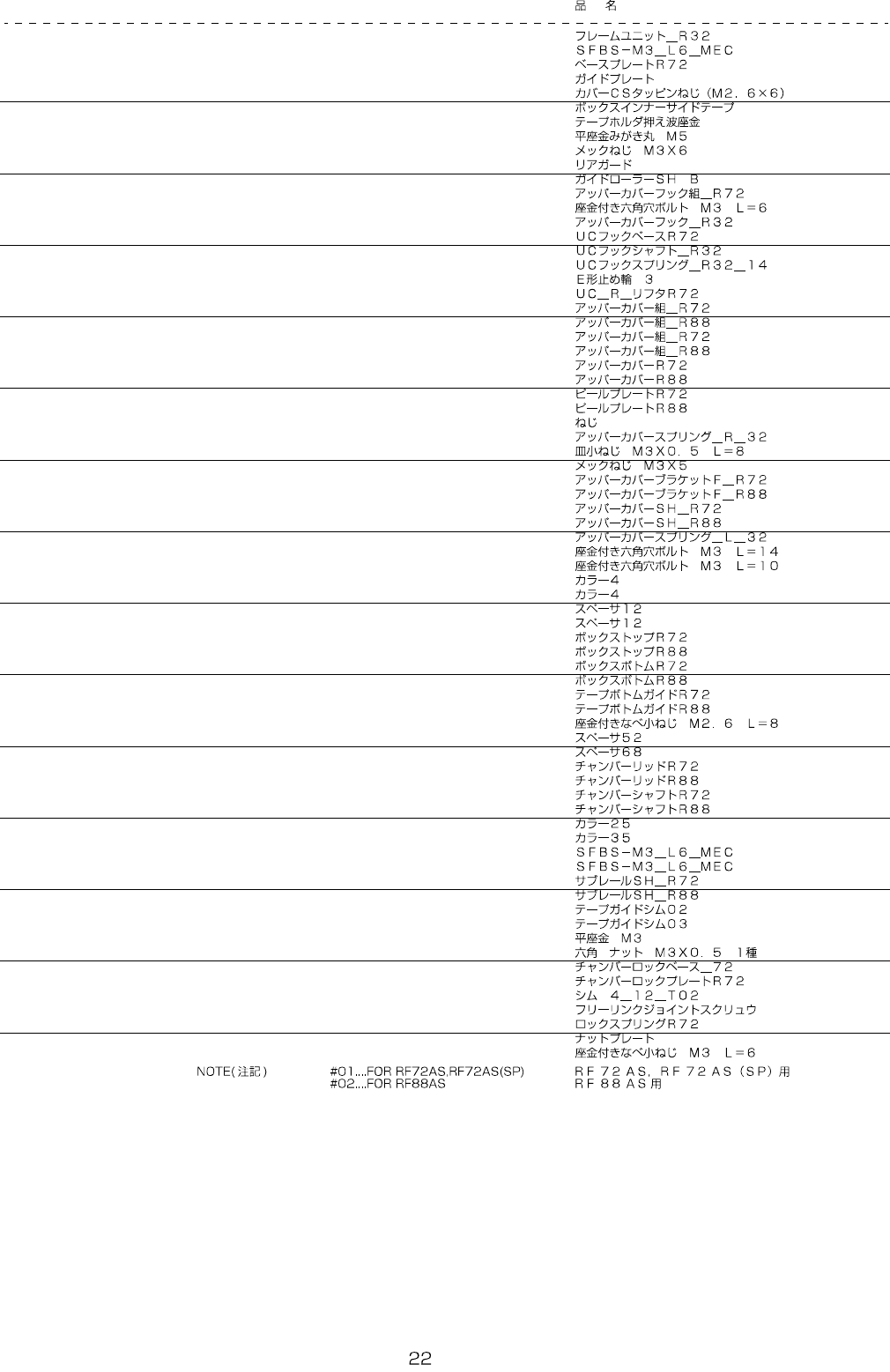

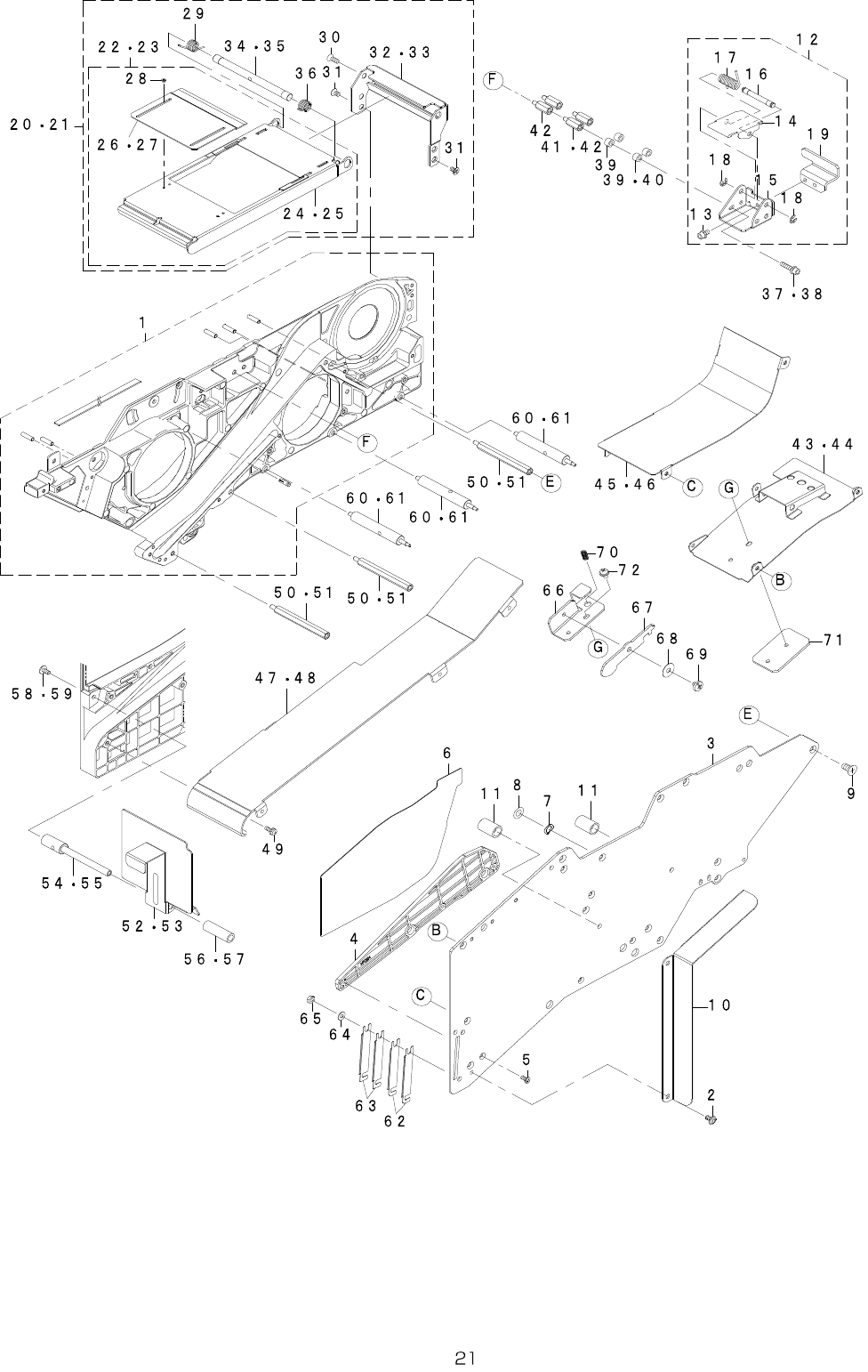

11.RF72AS,RF72AS(SP),RF88AS(1)
- -
REF.
NO
NOT-REPLACEABLE
PARTS
NOTE PARTNO DESCRIPTION Qty
1
●
401-91022 FRAME_UNIT_R32 1
2 402-02970 SFBS-M3_L6_MEC 7
3
●
402-30249 BASE_PLATE_R72 1
4 401-89102 GUIDE_PLATE 1
5 401-67280 COVER_SC_TAPPING_SCREW_M26X6 3
6
●
401-89107 BOX_INNER_SIDE_TAPE 1
7 E1306-706-C00 TAPEHOLDERWASHER 1
8 WP-0531001-SC WASHERM5 1
9 400-52050 SCREWM3X6MEC 15
10 402-30247 REAR_GUARD 1
11 E1604-706-C00 GUIDEROLLERSHB 2
12 402-33580 UC_HOOK_ASSY_R72 1
13 SL-6030692-TN SCREWM3L=6 (2)
14 401-89165 UPPER_COVER_HOOK_R32 (1)
15 402-30165 UC_HOOK_BASE_R72 (1)
16 401-89167 UC_HOOK_SH_R32 (1)
17 401-89164 UC_HOOK_SP_R32_14 (1)
18 RE-0300000-K0 E-RING3 (2)
19 402-30166 UC_R_LIFTER_R72 (1)
20
#01
402-33585 UPPER_COVER_ASM_R72 1
21
#02
402-33601 UPPER_COVER_ASM_R88 1
22
#01
402-33586 UPPER_COVER_ASSY_R72 (1)
23
#02
402-33602 UPPER_COVER_ASSY_R88 (1)
24
#01
402-30177 UPPER_COVER_R72 (1)
25
#02
402-30201 UPPER_COVER_R88 (1)
26
#01
402-30178 PEEL_PLATE_R72 (1)
27
#02
402-30202 PEEL_PLATE_R88 (1)
28 401-72670 SCREW (4)
29 400-91623 UPPER_COVER_SP_R_32 (1)
30 SM-1030801-SC SCREWM3L=8 (1)
31 400-55256 SCREWM3X5MEC (4)
32
#01
402-30179 UPPER_COVER_BRKT_F_R72 (1)
33
#02
402-30203 UPPER_COVER_BRKT_F_R88 (1)
34
#01
402-30180 UPPER_COVER_SH_R72 (1)
35
#02
402-30204 UPPER_COVER_SH_R88 (1)
36 400-91622 UPPER_COVER_SP_L_32 (1)
37
#01
SL-6031492-TN SCREWM3L=14 2
38
#02
SL-6031092-TN SCREWM3L=10 2
39
#01
402-30176 COLLAR_4 4
40
#02
402-30176 COLLAR_4 2
41
#01
401-89108 SPACER_12 2
42
#02
401-89108 SPACER_12 4
43
#01
402-30194 BOX_TOP_R72 1
44
#02
402-30214 BOX_TOP_R88 1
45
#01
402-30193 BOX_BOTTOM_R72 1
46
#02
402-30213 BOX_BOTTOM_R88 1
47
#01
402-30197 TAPE_BOTTOM_GUIDE_R72 1
48
#02
402-30224 TAPE_BOTTOM_GUIDE_R88 1
49 SL-4860891-SC SCREWM2.6L=8 7
50
#01
402-30181 SPACER_52 3
51
#02
402-30205 SPACER_68 3
52
#01
402-30186 CHAMBER_LID_R72 1
53
#02
402-30210 CHAMBER_LID_R88 1
54
#01
402-30184 CHAMBER_SH_R72 1
55
#02
402-30208 CHAMBER_SH_R88 1
56
#01
402-30185 COLLAR_25 1
57
#02
402-30209 COLLAR_35 1
58
#01
402-02970 SFBS-M3_L6_MEC 4
59
#02
402-02970 SFBS-M3_L6_MEC 2
60
#01
402-30198 SUB_RAIL_SH_R72 3
61
#02
402-30223 SUB_RAIL_SH_R88 3
62
#01
402-36734 TAPE_GUIDE_SHIM_02 2
63
#01
402-36735 TAPE_GUIDE_SHIM_03 2
64
#01
WP-0320501-SC WASHERM3 5
65
#01
NM-6030001-SC NUTM3X0.5TYPE1 2
66 401-13332 CHAMBER_LOCK_BASE_72 1
67 402-33447 CHAMBER_LOCK_PLATE_R72 1
68 401-13375 SHIM_RING_4_12_T02 1
69 E1120-706-C00 FREELINKJOINTSCREW 1
70 402-33446 ROCK_SP_R72 1
71 402-30175 NUT_PLATE 1
72 SL-4030691-SC SCREWM3L=6 2
