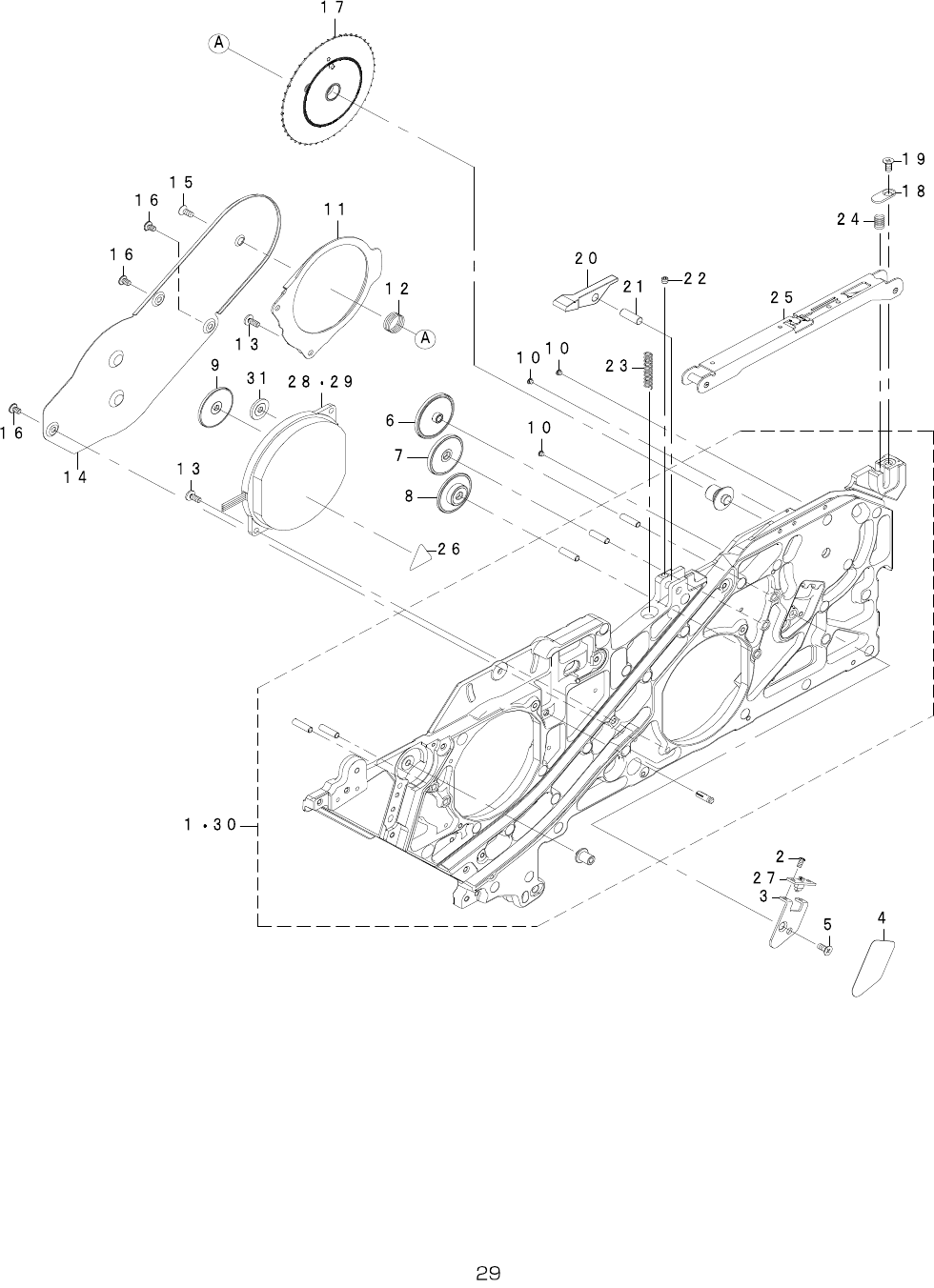

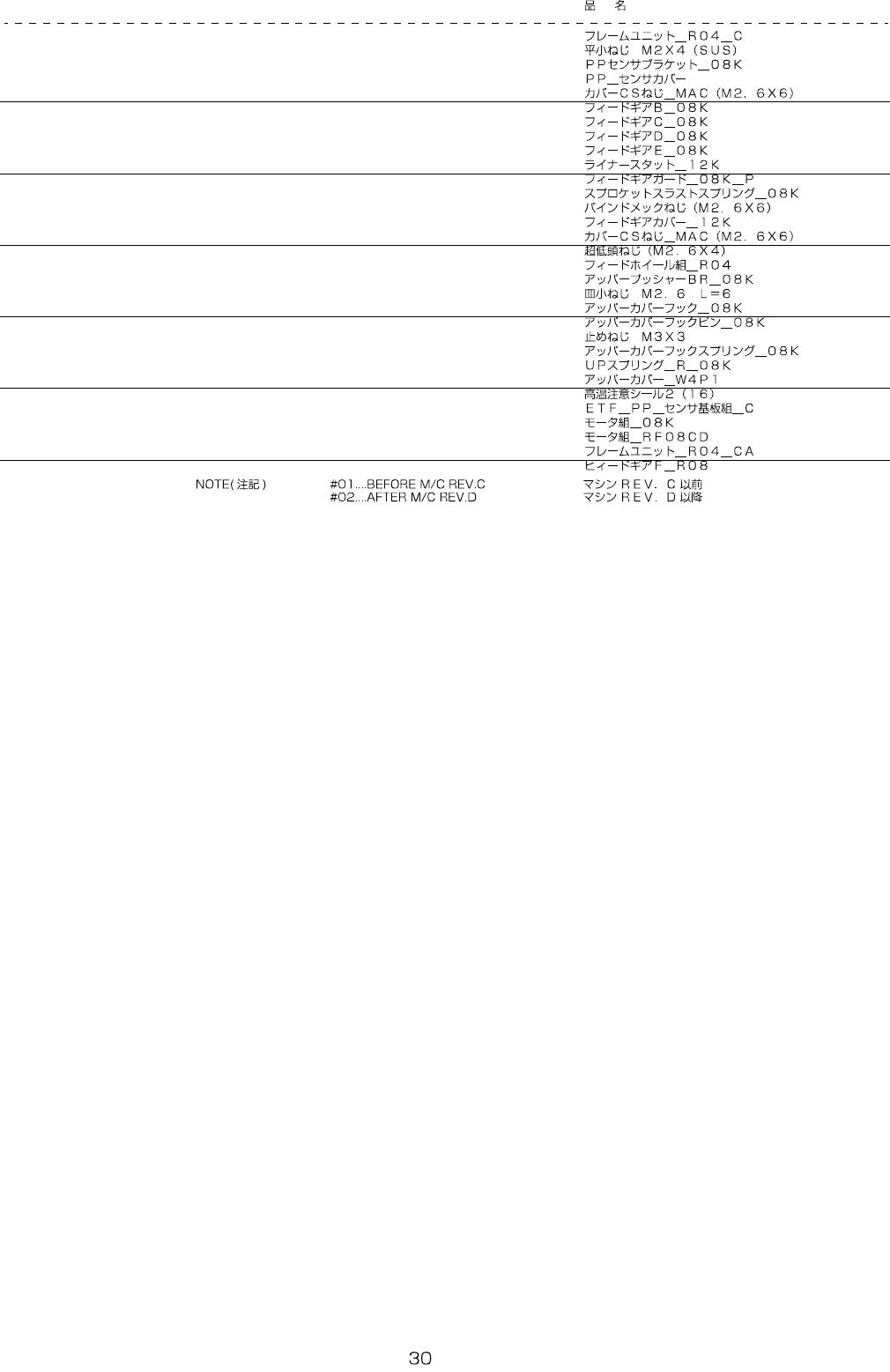

15.RF04AS(1)
- -
REF.
NO
NOT-REPLACEABLE
PARTS
NOTE PARTNO DESCRIPTION Qty
1
● #01
402-09064 FRAME_UNIT_R04_C 1
2 400-85419 SCREWM2X4 2
3
●
401-67231 PP_SENSOR_BR_08K 1
4 401-67230 PP_SENSOR_COVER 1
5 401-67279 COVER_CS_SCREW_MAC_M26X6 1
6
●
401-67205 FEED_GEAR_B_08K 1
7
●
401-67204 FEED_GEAR_C_08K 1
8
●
401-67203 FEED_GEAR_D_08K 1
9 401-67202 FEED_GEAR_E_08K 1
10
●
401-72608 LINER_STUD_12K 3
11
●
401-71255 FEED_GEAR_GUARD_08K_P 1
12
●
401-67264 SPROKET_THRUST_SP_08K 1
13 401-98996 BINDING_MEC_SCREW_M26X6 4
14
●
401-67260 FEED_GEAR_COVER_12K 1
15 401-67279 COVER_CS_SCREW_MAC_M26X6 1
16 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 3
17
●
401-99006 FEED_WHEEL_ASSY_R04 1
18 401-67225 UPPER_PUSHER_BR_08K 1
19 SM-1860601-SC SCREWM2.6L=6 1
20 401-67223 UPPER_COVER_HOOK_08K 1
21 401-67226 UPPER_COVER_HOOK_PIN_08K 1
22 SM-8030302-TP SCREWM3X3 1
23 401-67263 UC_HOOK_SP_08K 1
24 401-67224 UCSP_R_08K 1
25 401-99043 UPPER_COVER_W4P1 1
26 CM-3003000-01 HIGHTEMPARATURECAUTIONLABEL2(16) 1
27
●
401-78886 ETFPPSENSPCBASM_C 1
28
● #01
401-66937 MOTOR_ASSY_08K 1
29
● #02
402-04639 MOTOR_ASSY_RF08CD 1
30
● #02
402-27101 FRAME_UNIT_R04_CA 1
31
● #02
401-98968 FEED_GEAR_F_R08 1
- -

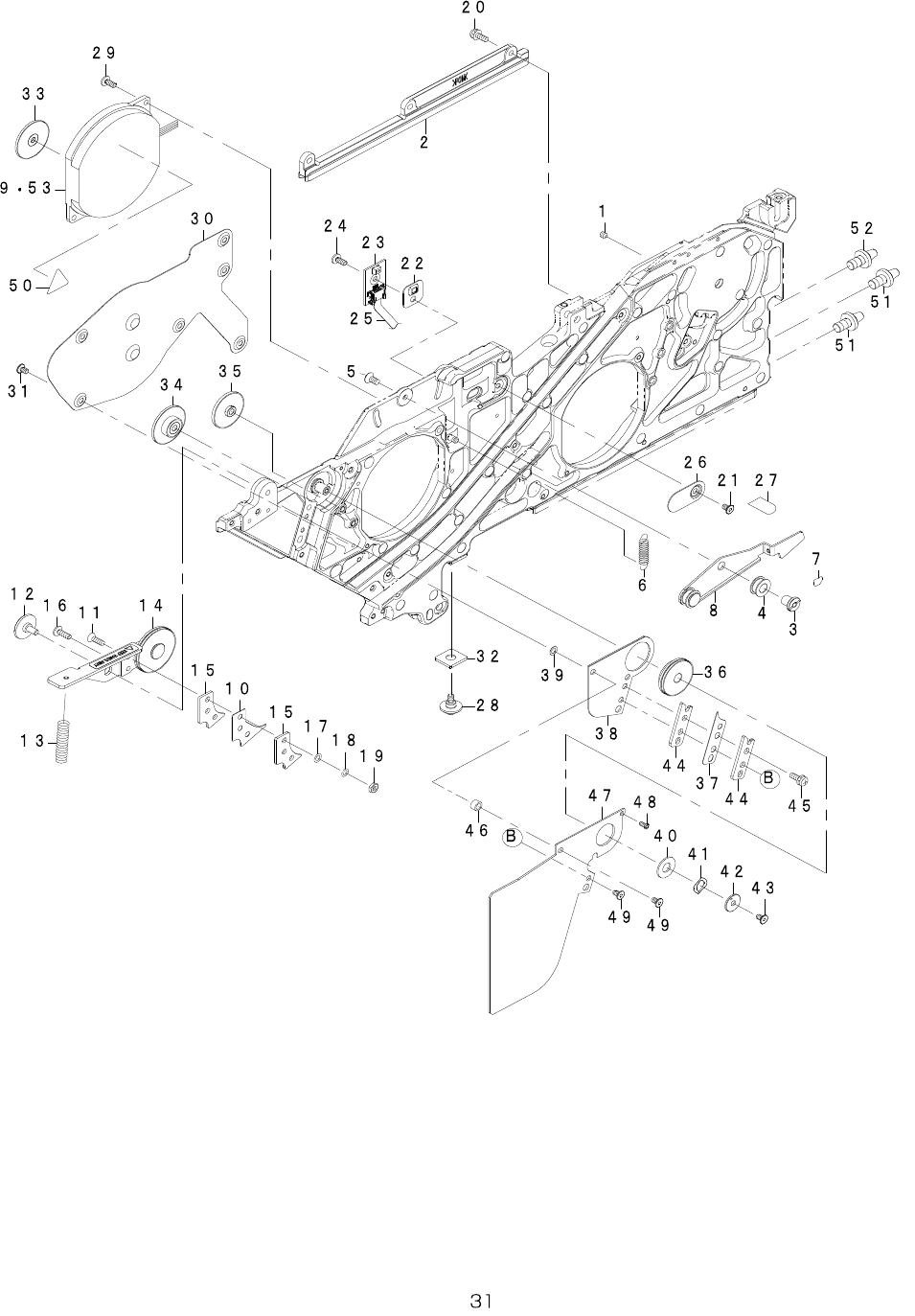

16.RF04AS(2)
