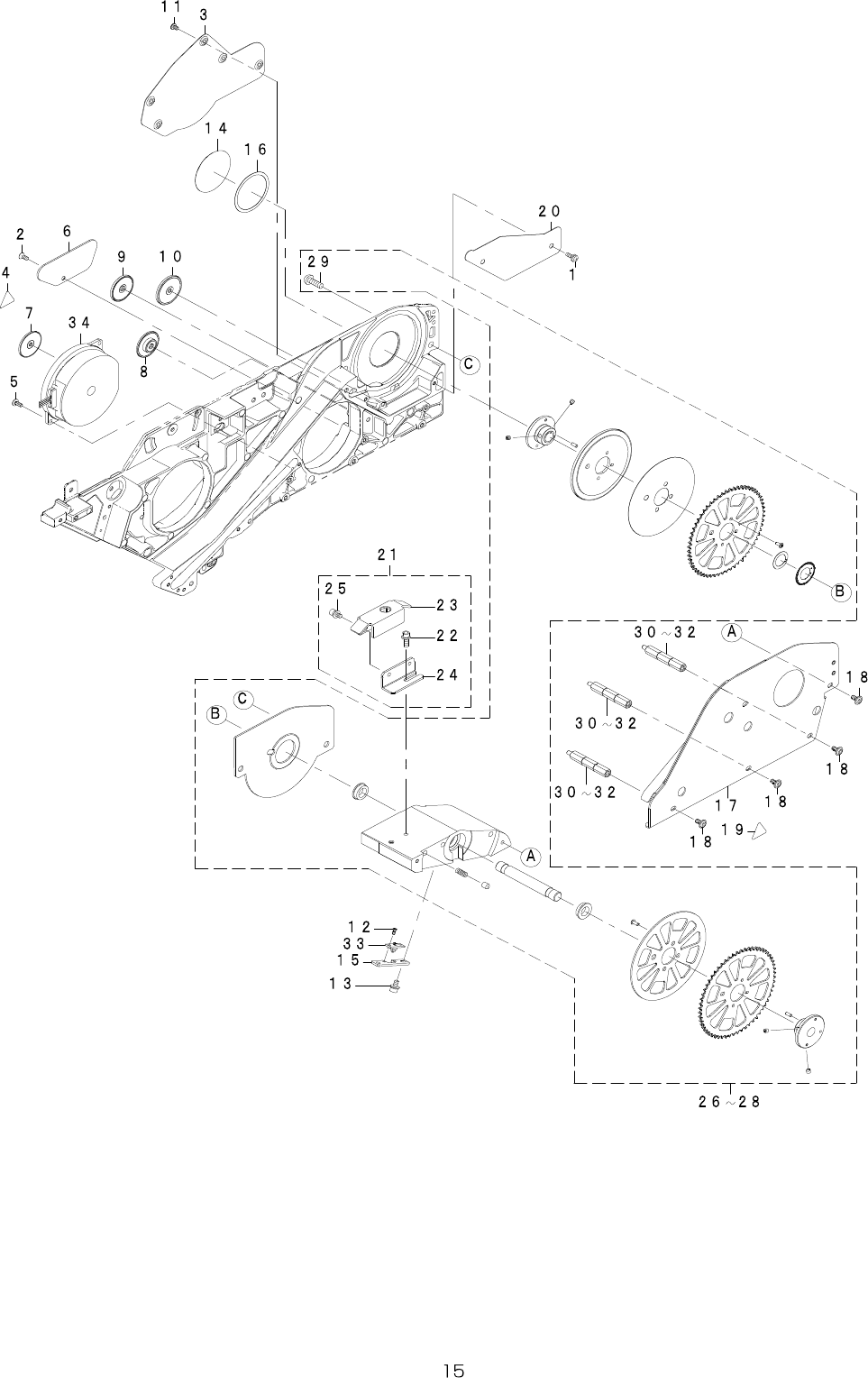

8. RF32AS,RF32AS(SP),RF44AS,RF44AS(SP),RF56AS,RF56AS(SP)(2)
- -
REF.
NO
NOT-REPLACEABLE
PARTS
NOTE PARTNO DESCRIPTION Qty
1 SL-4860891-SC SCREWM2.6L=8 2
2 401-67279 COVER_CS_SCREW_MAC_M26X6 1
3 401-89180 FEED_COVER_R32 1
4 CM-3003000-01 HIGHTEMPARATURECAUTIONLABEL2(16) 1
5 401-98996 BINDING_MEC_SCREW_M26X6 2
6
●
401-89170 FEED_GEAR_THRUST_COVER_R32 1
7 402-26792 FEED_GEAR_E_ST_R08 1
8
●
401-67203 FEED_GEAR_D_08K 1
9
●
401-67204 FEED_GEAR_C_08K 1
10
●
401-89168 FEED_GEAR_B_R32 1
11 401-89110 LOW_HEAD_SCREW_M26_L4 5
12 400-85419 SCREWM2X4 1
13 SL-6030692-TN SCREWM3L=6 2
14 401-89179 BLOCK_COVER_R32 1
15
●
401-89177 PP_SENSOR_BR_R32 1
16 401-89178 BLOCK_COVER_TAPE_R32 1
17
●
401-89160 TAPE_GUIDE_R32 1
18 401-71822 SFBS-M3_L6 5
19 CM-3003000-01 HIGHTEMPARATURECAUTIONLABEL2(16) 1
20 401-89181 PP_SENSOR_COVER_R32 1
21 400-91583 EF32_EMBOSS_SPACER_ASSY 1
22 SL-6031092-TN SCREWM3L=10 (1)
23 400-91599 EMBOSS_SPACER_ETF (1)
24 E6902-706-R00 EMBOSSSPACER32B (1)
25 SL-6030692-TN SCREWM3L=6 (2)
26
● #01
401-91047 FEED_SPROKET_UNIT_R32 1
27
● #02
401-91063 FEED_SPROKET_UNIT_R44 1
28
● #03
401-91077 FEED_SPROKET_UNIT_R56 1
29
●
SM-3041252-TN SCREWM4L=12 (2)
30
● #01
401-89108 SPACER_12 3
31
● #02
401-89108 SPACER_12 6
32
● #03
401-89108 SPACER_12 9
33
●
401-78886 ETFPPSENSPCBASM_C 1
34
●
402-44435 MOTOR_ASSY_L 1
- -
