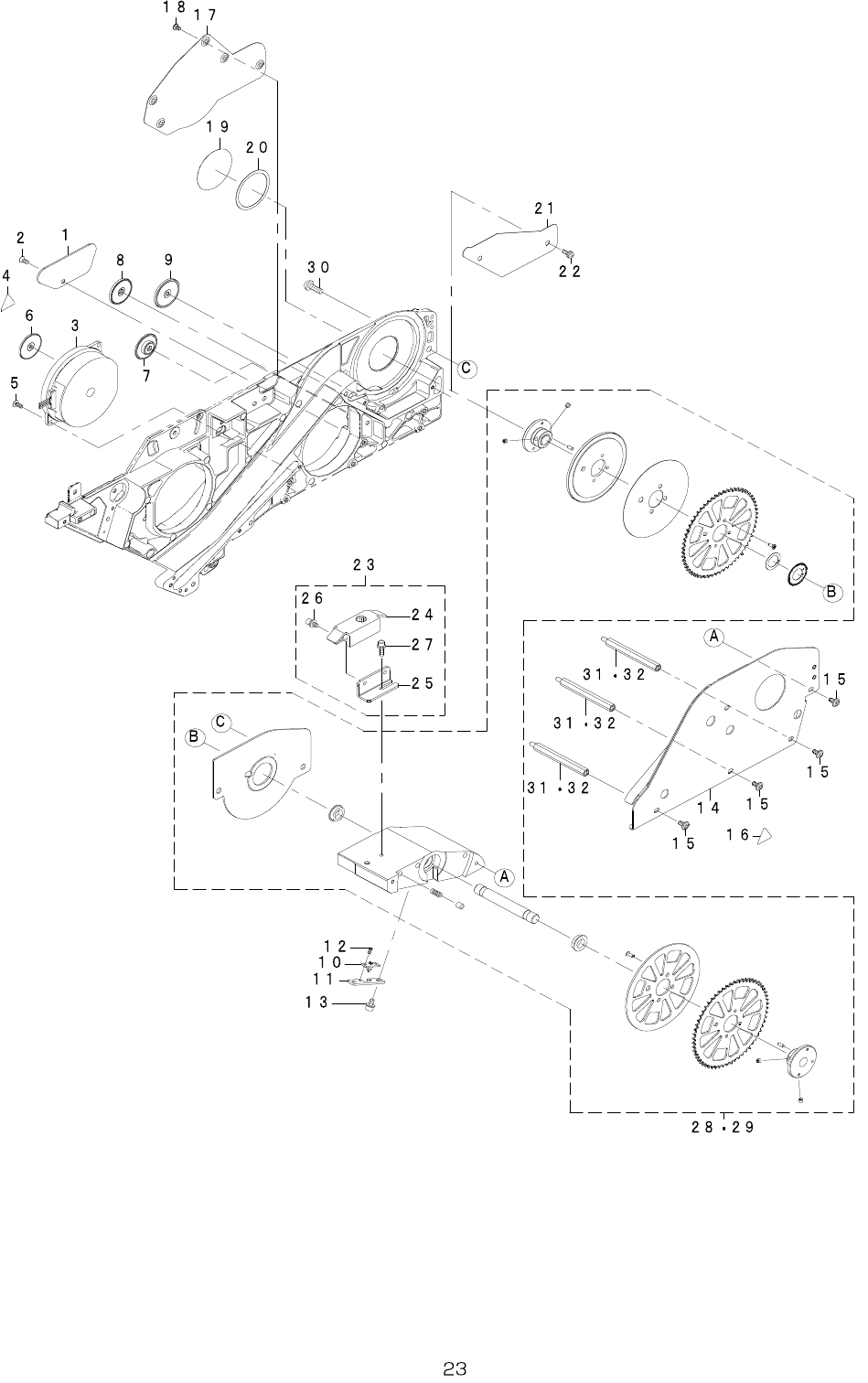

12.RF72AS,RF72AS(SP),RF88AS(2)
- -
REF.
NO
NOT-REPLACEABLE
PARTS
NOTE PARTNO DESCRIPTION Qty
1
●
401-89170 FEED_GEAR_THRUST_COVER_R32 1
2 401-67279 COVER_CS_SCREW_MAC_M26X6 1
3
●
402-44435 MOTOR_ASSY_L 1
4 CM-3003000-01 HIGHTEMPARATURECAUTIONLABEL2(16) 1
5 401-98996 BINDING_MEC_SCREW_M26X6 2
6 402-26792 FEED_GEAR_E_ST_R08 1
7
●
401-67203 FEED_GEAR_D_08K 1
8
●
401-67204 FEED_GEAR_C_08K 1
9
●
401-89168 FEED_GEAR_B_R32 1
10
●
401-78886 ETFPPSENSPCBASM_C 1
11
●
401-89177 PP_SENSOR_BR_R32 1
12 400-85419 SCREWM2X4 2
13 SL-6030692-TN SCREWM3L=6 2
14
●
401-89160 TAPE_GUIDE_R32 1
15 402-02970 SFBS-M3_L6_MEC 5
16 CM-3003000-01 HIGHTEMPARATURECAUTIONLABEL2(16) 1
17 401-89180 FEED_COVER_R32 1
18 401-89110 LOW_HEAD_SCREW_M26_L4 5
19 401-89179 BLOCK_COVER_R32 1
20 401-89178 BLOCK_COVER_TAPE_R32 1
21 401-89181 PP_SENSOR_COVER_R32 1
22 SL-4860891-SC SCREWM2.6L=8 2
23 400-91583 EF32_EMBOSS_SPACER_ASSY 1
24 400-91599 EMBOSS_SPACER_ETF (1)
25 E6902-706-R00 EMBOSSSPACER32B (1)
26 SL-6030692-TN SCREWM3L=6
(2)
27 SL-6031092-TN SCREWM3L=10 (1)
28
● #01
402-33589 FEED_SPROKET_UNIT_R72 1
29
● #02
402-33605 FEED_SPROKET_UNIT_R88 1
30
●
SM-3041252-TN SCREWM4L=12 2
31
● #01
402-30181 SPACER_52 3
32
● #02
402-30205 SPACER_68 3
- -
13.RF72AS,RF72AS(SP),RF88AS(3)
