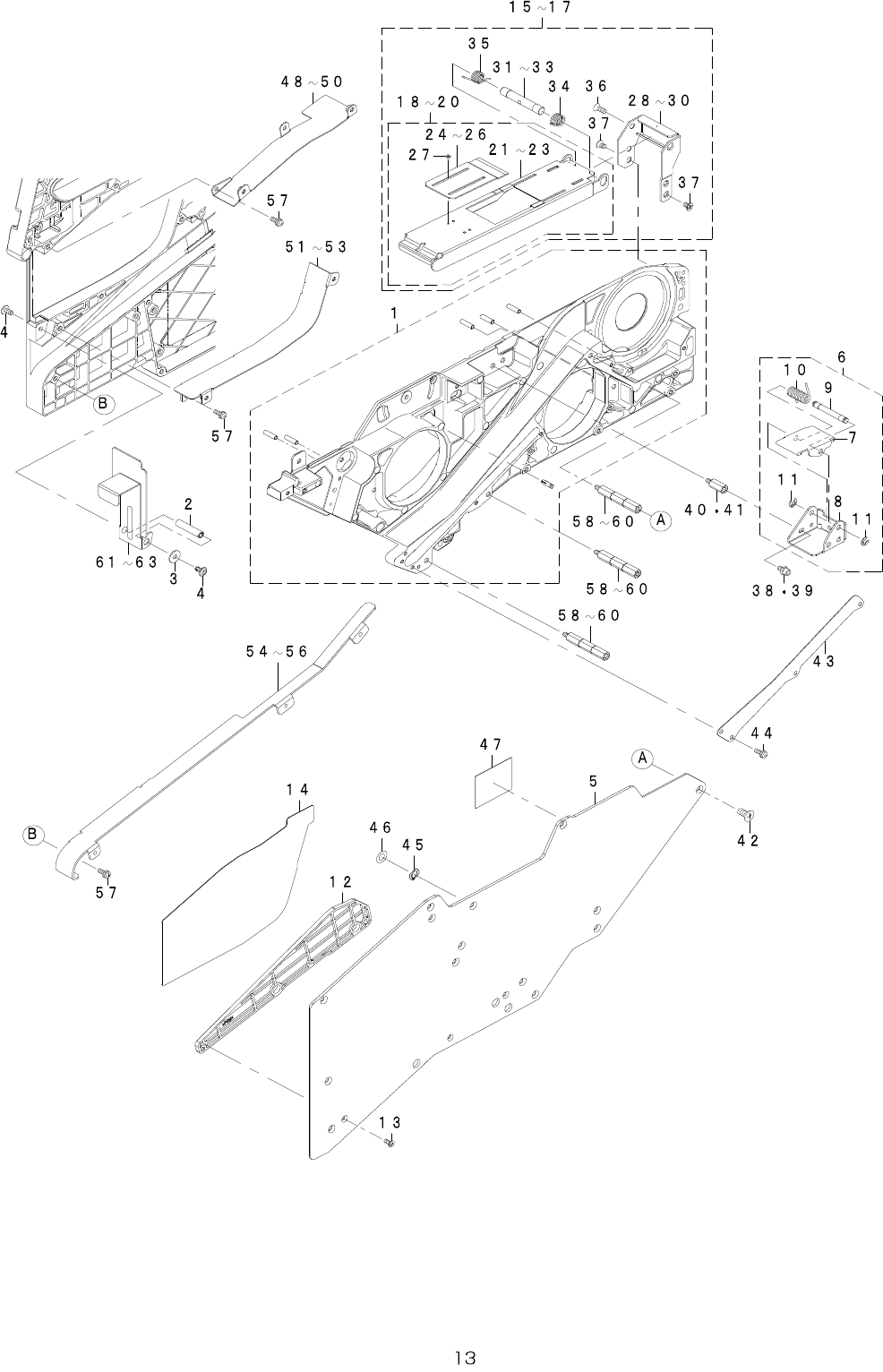

6. RF12AS,RF12AS(SP),RF16AS,RF16AS(SP),RF24AS,RF24AS(SP)(3)
- -
REF.
NO
NOT-REPLACEABLE
PARTS
NOTE PARTNO DESCRIPTION Qty
1 ST-4860421-SN TAPPINGSCREWD=2.6L=4 4
2
●
401-66939 ETFI/FCABLEASM 1
3 401-67216 GEAR_SH_08K 1
4 SM-8030602-TP SCREWM3X0.5L=6 1
5 401-67218 CLAMP_MAIN_SH 1
6 401-67279 COVER_CS_SCREW_MAC_M26X6 1
7 401-67265 CLAMP_SP 1
8 401-69546 CLAMP_BLOCK_SUB_ASSY_08K 1
9
●
402-29603 RF12MAINPCBASM_C 1
10
#02
401-72672 TAPE_GUARD_16K 1
11
#03
401-72673 TAPE_GUARD_24K 1
12 ST-4860821-SN TAPPINGSCREWM2.5X8 2
13 401-67237 CLAMP_LEVER_PIN 1
14 402-02970 SFBS-M3_L6_MEC 1
15 401-67238 CLAMP_SPRING_GUIDE 1
16 401-89573 TENSIONER_REFLECTOR_R 1
17 402-04901 CLAMP_LEVER_SUB_ASSY_R08 1
18 401-66943 RADIATIONSHEET 2
19 401-78887 ETFREFLECTIVESENSPCBASM_C 1
20 401-98996 BINDING_MEC_SCREW_M26X6 1
21 NM-6860003-SC NUTM2.6TYPE3 1
22 401-66940 LOCKSENSFPC 1
23 402-07091 SENSOR_OPEN_CAP 1
24 401-72660 PCB_COVER_12K 1
25 401-67250 CLAMP_WIRE_GUIDE_B 2
26 401-67279 COVER_CS_SCREW_MAC_M26X6 6
27 RE-0250000-K0 E-RING2.5 1
28 401-67248 CLAMP_WIRE_08K_N 1
29 401-67249 CLAMP_WIRE_GUIDE_A 1
30 401-69529 DUMMY_SENSOR_UNIT 1
31
#05
401-69530 SPLICE_SENSOR_UNIT 1
32 401-67233 DUMMY_SENSOR (1)
33
#05
401-66944 SPLICE_SENSOR (1)
34 ST-4860821-SN TAPPINGSCREWM2.5X8 (2)
35 401-67279 COVER_CS_SCREW_MAC_M26X6 7
36 401-72616 CABLE_COVER_12K 1
37 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 2
38 401-79259 PCB_COVER_SEAL_12K 1
39 401-67280 COVER_SC_TAPPING_SCREW_M26X6 2
40 401-97339 COVER_CS_SCREW_MEC_M26X8 6
41 401-98996 BINDING_MEC_SCREW_M26X6 2
42 401-66942 MENBRANESWITCH 1
43 401-72656 HANDLE_L_12K 1
44 401-81358 LID_PRESSURE_PLATE_12K_06 1
45 401-67254 HANDLE_REINFORCED_PLATE_12K 1
46 402-07093 REAR_CABLE_COVER_S_ASSY 1
47 401-67253 EXTENSION_PLATE 1
48 402-18308 WIRING_SPONGE_RF08 1
49 401-81346 FG_FILM_AL 1
50 401-72665 HEAT_SINK_PLATE_12K 1
51 EA-9500B00-00 CABLEBAND 3
52
#04
401-67277 SUPER_LOW_HEAD_SCREW_M26X4 2
53 WP-0430801-SC WASHERM4 1
54 SM-4042501-SC SCREWM4X0.7L=25 1
55 401-71258 REEL_HOOK 1
56 401-71257 REEL_HOOK_BASE 1
57 401-77469 TAPPING_SCREW_M2.6X6 2
58 400-68219 REEL_HOOK_SH 1
59 E1306-706-C00 TAPEHOLDERWASHER 1
60
#01
401-97339 COVER_CS_SCREW_MEC_M26X8 1
61
#02
401-97340 COVER_CS_SCREW_MEC_M26X12 1
62
#03
401-97341 COVER_CS_SCREW_MEC_M26X20 1
63
#01
401-72657 CHAMBER_LID_12K 1
64
#02
401-72661 CHAMBER_LID_16K 1
65
#03
401-72662 CHAMBER_LID_24K 1
66
#01
401-72612 FRONT_COVER_12K 1
67
#02
401-72613 FRONT_COVER_16K 1
68
#03
401-72614 FRONT_COVER_24K 1
69
#01
401-67277 SUPER_LOW_HEAD_SCREW_M26X4 8
70
#02
401-72666 BINDING_HEAD_SCREW_M26X8 6
71
#03
401-72667 BINDING_HEAD_SCREW_M26X16 6
72
#02
E4007-706-000 EMBOSSGUIDECOLLAR 6
73
#03
E5007-706-000 EMBOSSGUIDECOLLAR_24 6
74
#01
401-72659 HANDLE_R_12K 1
75
#02
401-72663 HANDLE_R_16K 1
76
#03
401-72664 HANDLE_R_24K 1
77 401-72615 TAPE_GUIDE 1
78
#01
401-98996 BINDING_MEC_SCREW_M26X6 3
79
#02
401-72666 BINDING_HEAD_SCREW_M26X8 3
80
#03
401-72667 BINDING_HEAD_SCREW_M26X16 3
81
#02
E4007-706-000 EMBOSSGUIDECOLLAR 3
82
#03
E5007-706-000 EMBOSS_GUIDE_COLLAR_24 3
- -
