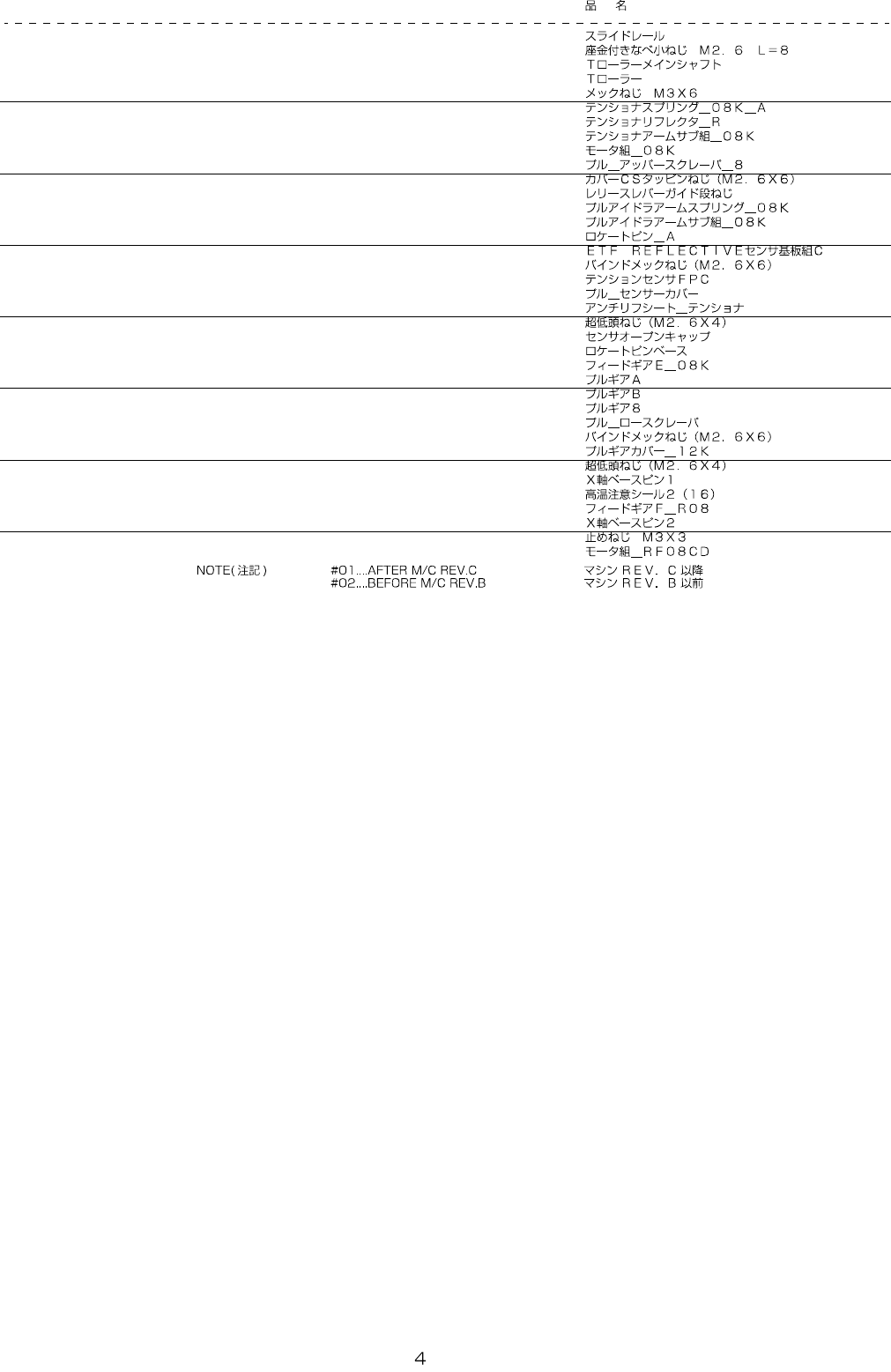

2. RF08AS,RF08AS(SP)(2)

- -

REF.

NOT-REPLACEABLE

PARTS

NOTE PARTNO DESCRIPTION Qty

1 401-67213 SLIDE_RAIL 1

2 SL-4860891-SC SCREWM2.6L=8 3

3 401-67241 T_ROLLER_MAIN_SH 1

4 401-67240 T_ROLLER 1

5 400-52050 SCREWM3X6MEC 1

6 401-67267 TENSIONER_SP_08K 1

7 401-89573 TENSIONER_REFLECTOR_R 1

8 401-69541 TENSIONER_ARM_SUB_ASSY_08K 1

● #02

401-66937 MOTOR_ASSY_08K 1

10 401-67245 PULL_UPPER_SCRAPER_8 1

11 401-67280 COVER_SC_TAPPING_SCREW_M26X6 1

12 E1524-706-C00 STEPSCREW 1

13 401-67262 PULL_IDLER_ARM_SP_08K 1

14 401-69542 PULL_IDLER_ARM_SUB_ASSY_08K 1

15 401-67290 LOCATE_PIN_A 1

16 401-78887 ETFREFLECTIVESENSPCBASM_C 1

17 401-98996 BINDING_MEC_SCREW_M26X6 1

18 401-66941 TENSIONSENSFPC 1

19 401-67247 PULL_SENSOR_COVER_A 1

20 402-07086 ANTIREF_SHEET_TENSIONER 1

21 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 1

22 402-07091 SENSOR_OPEN_CAP 1

23 401-67291 LOCATE_PIN_BASE 1

24 401-67202 FEED_GEAR_E_08K 1

25 401-67207 PULL_GEAR_A 1

26 401-67208 PULL_GEAR_B 1

27 401-67209 PULL_GEAR_8 1

28 401-67246 PULL_LOWER_SCRAPER 1

29 401-98996 BINDING_MEC_SCREW_M26X6 4

30 401-67261 PULL_GEAR_COVER_12K 1

31 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 6

32 401-67211 X_AXIS_BASE_PIN_1 2

33 CM-3003000-01 HIGHTEMPARATURECAUTIONLABEL2(16) 1

#01

401-98968 FEED_GEAR_F_R08 1

○

401-67212 X_AXIS_BASE_PIN_2 1

36 SM-8030302-TP SCREWM3X3 3

● #01

402-04639 MOTOR_ASSY_RF08CD 1

- -

3. RF08AS,RF08AS(SP)(3)
