Page SAMSUNG TECHWIN 11 9 DECAN L2 Head (3/5) NO. P ART NO. P ART N AME Q'TY Old No. Supply Supply L T Reference 1 FC39-001921A BODY -MAIN_B ODY 1 2 J7055555A BEARING_NUT 6 3 MC03-900024 BALL BEAR ING 6 4 FC39-00192…
Page
SAMSUNG TECHWIN
118
DECAN
L2

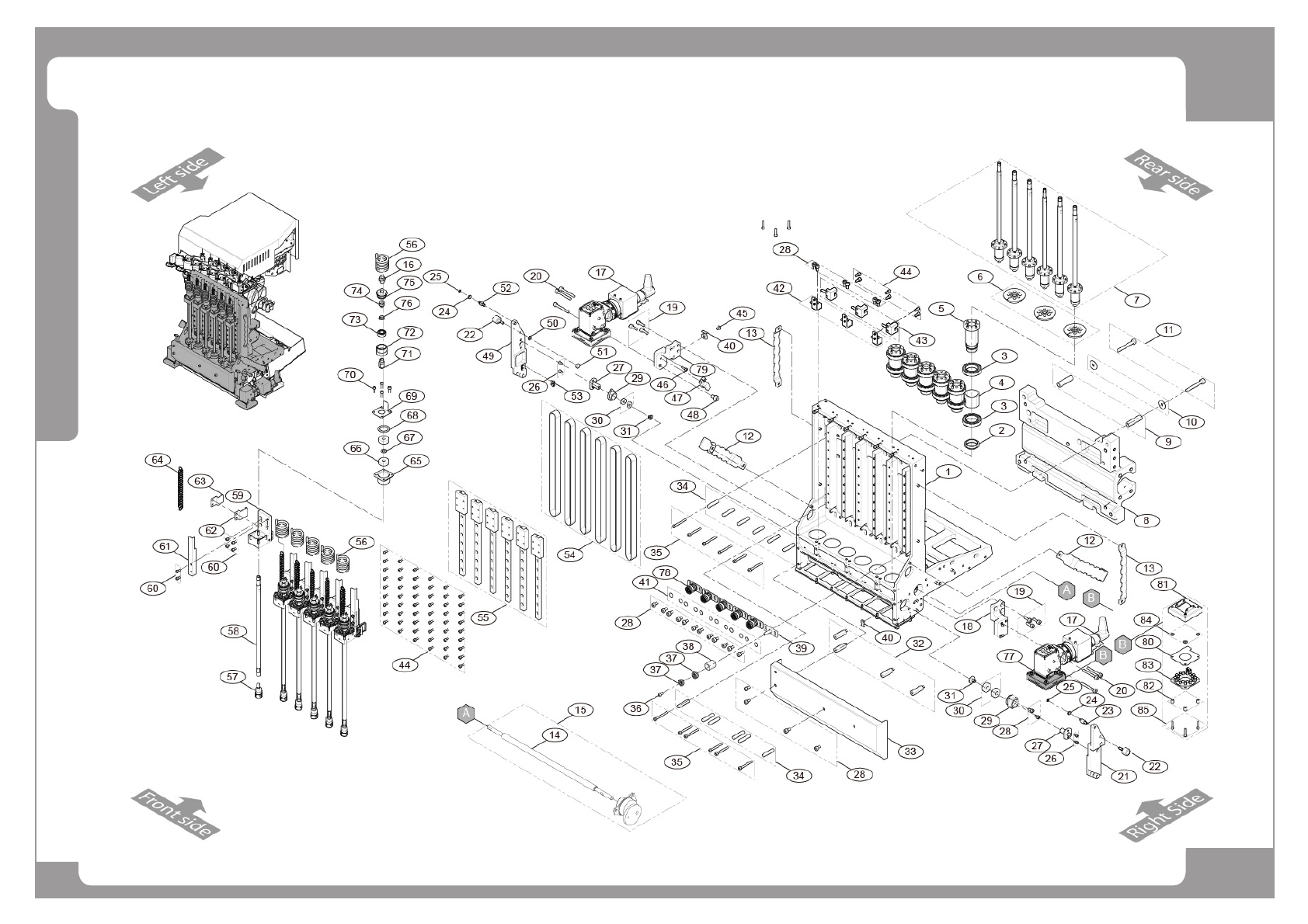

Head (3/5)
Page
SAMSUNG TECHWIN
119
DECAN
L2
Head (3/5)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC39-001921A BODY-MAIN_BODY 1
2 J7055555A BEARING_NUT 6
3 MC03-900024 BALL BEARING 6
4 FC39-001923A BODY-BEARING_COLLAR 6
5 FC39-001922A BODY-SPINDLE_HOUSING 6
6 FC30-000215A SENSOR_DOG_R 3
7 MC13-000279 BALL SPLINE 6
8 FC05-000514A BASE-HEAD CARRIER DECAN 1
9 FC09-004885A BRACKET-HEAD_SUPPORT 2
10 MC19-000103 COLLAR,SHAFT-WSSS12-4-1 2
11 FC18-902750 SOCKET HEAD CAP SCREW M4*30 (NI/ZN) 2
12 FC09-004872A BRACKET-DL2_TIE_MOUNT 2
13 J71551021A TIE_MOUNTER_2 2
14 MC19-001193A SHAFT-MIRROR_SHAFT 1
15 AM03-013676A MIRROR_SHAFT 1
16 HP06-900252 STRAIGHT FITTING [M-5AU-4] 6
17 AM03-015151A ASSY,HEAD-L2 FID CAM ASSY 2
18 AM03-013681A ASSY,HEAD-FID_BRACKET_1 1
19 FC18-902725 SOCKET HEAD CAP SCREW 10
20 FC18-902734 SOCKET HEAD CAP SCREW M3*25 (NI/ZN) 6
21 FC09-004454A BRACKET-MIRROR_LINK_R 1
22 MC11-900055 CAM FOLLOWER 2
23 FC09-004455A BRACKET-SPRING_POST1 2
24 J7455026A SPRING_BUSH 4
25 FC18-901347 E-RING 4
26 FC18-902708 SOCKET HEAD CAP SCREW 12
27 J7055204A ARM JOINT 2
28 FC18-902719 SOCKET HEAD CAP SCREW 58
29 J7055205A MIRROR JOINT-LEFT 2
30 MC03-900034 BALL BEARING 4
31 J7055153A MIRROR_SCREW 2
Page
SAMSUNG TECHWIN
120
DECAN
L2
Head (3/5)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
32 FC29-900614 HEX SUPPORT [M3*20 (BOLT-NUT)] 4
33 FC09-004904A BRACKET-FRONT_ILL_COVER 1
34 J71550511B STOPPER 12
35 J70551131A Z-STOPPER_BOLT 12
36 FC18-902709 SOCKET HEAD CAP SCREW 6
37 MC03-900127 BALL BEARING[684ZZ] 12
38 J7155565A PULLEY (Z-AXIS 2) 6
39 FC09-004450A BRACKET-Z_PULLEY_BODY 6
40 FC18-900870 LOW PROFILE MOUNTS[DALM5 (NYLON)] 2
41 FC18-903475 FLAT WASHER 12
42 FC09-004451A BRACKET-SENSOR_BKT_R_H 3
43 EP19-900119 MICRO PHOTO SENSOR[PM-L24] 3
44 FC18-902705 SOCKET HEAD CAP SCREW 60
45 FC18-901940 FLAT HEAD SOCKET SCREW M3*5,ZN-B 1
46 FC18-902706 SOCKET HEAD CAP SCREW M2*8 (NI/ZN) 19
47 EP19-900134 PHOTO_SENSOR 1
48 FC18-902738 SOCKET HEAD CAP SCREW M4*6 (NI/ZN) 1
49 FC09-004456A BRACKET-MIRROR_LINK_L 1
50 FC18-903488 SPRING WASHER 7
51 FC18-901044 HEX NUT 8
52 J70551042A SPRING_POST-MOVING 1
53 FC18-902703 SOCKET HEAD CAP SCREW M2*4 (NI/Zn) 2
54 MC05-000272 TIMING BELT-366-1.5GT-9;GT,366,1.5,9,1 6
55 MC13-900022 LM GUIDE [LWLG7C140BE351] 6
56 RM02-900031 COIL TUBE(POLYURETHANE) [J6713022B] 6
57 J90550209B COMMON_NOZZLE_HOLDER 6
58 MC13-000279 BALL SPLINE 6
59 FC06-000011A SLIDE_BODY 6
60 FC18-902704 SOCKET HEAD CAP SCREW 52
61 J7155512A SENSOR DOG 6
62 J70551001B BELT_CLAMP1 6
