Page SAMSUNG TECHWIN 238 DECAN L2 Conveyor IF Board (9/10)
Page
SAMSUNG TECHWIN
237
DECAN
L2
Conveyor IF Board (8/10)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-012636A CABLE ASSY-PUMP_ALARM_BUT_SENSOR 1
2 AM03-003870B CABLE ASSY-BUT SENSOR EXT 1 AM03-003870A
3 AM03-013055A CABLE ASSY-TOWER_LAMP_J4R 1
Page
SAMSUNG TECHWIN
238
DECAN
L2
Conveyor IF Board (9/10)
Page
SAMSUNG TECHWIN
239
DECAN
L2

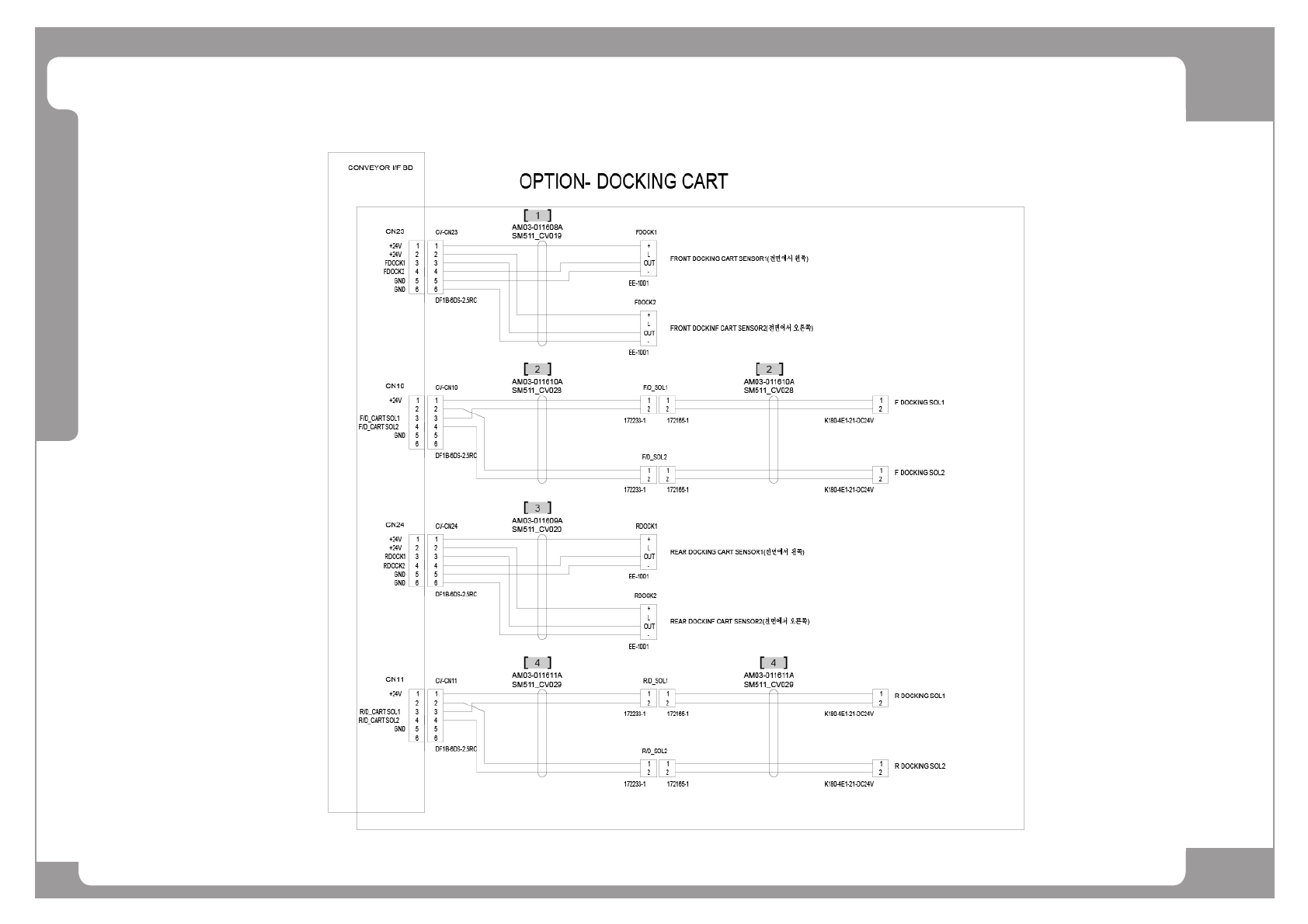

Conveyor IF Board (9/10)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-011608B CABLE ASSY-F_DOCKING_CART_SNS 1 AM03-011608A
2 AM03-011610A CABLE ASSY-FRONT_D-CART_SOL 1
3 AM03-011609B CABLE ASSY-R_DOCKING_CART_SNS 1 AM03-011609A
4 AM03-011611B CABLE ASSY-REAR_D-CART_SOL 1 AM03-011611A
